WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

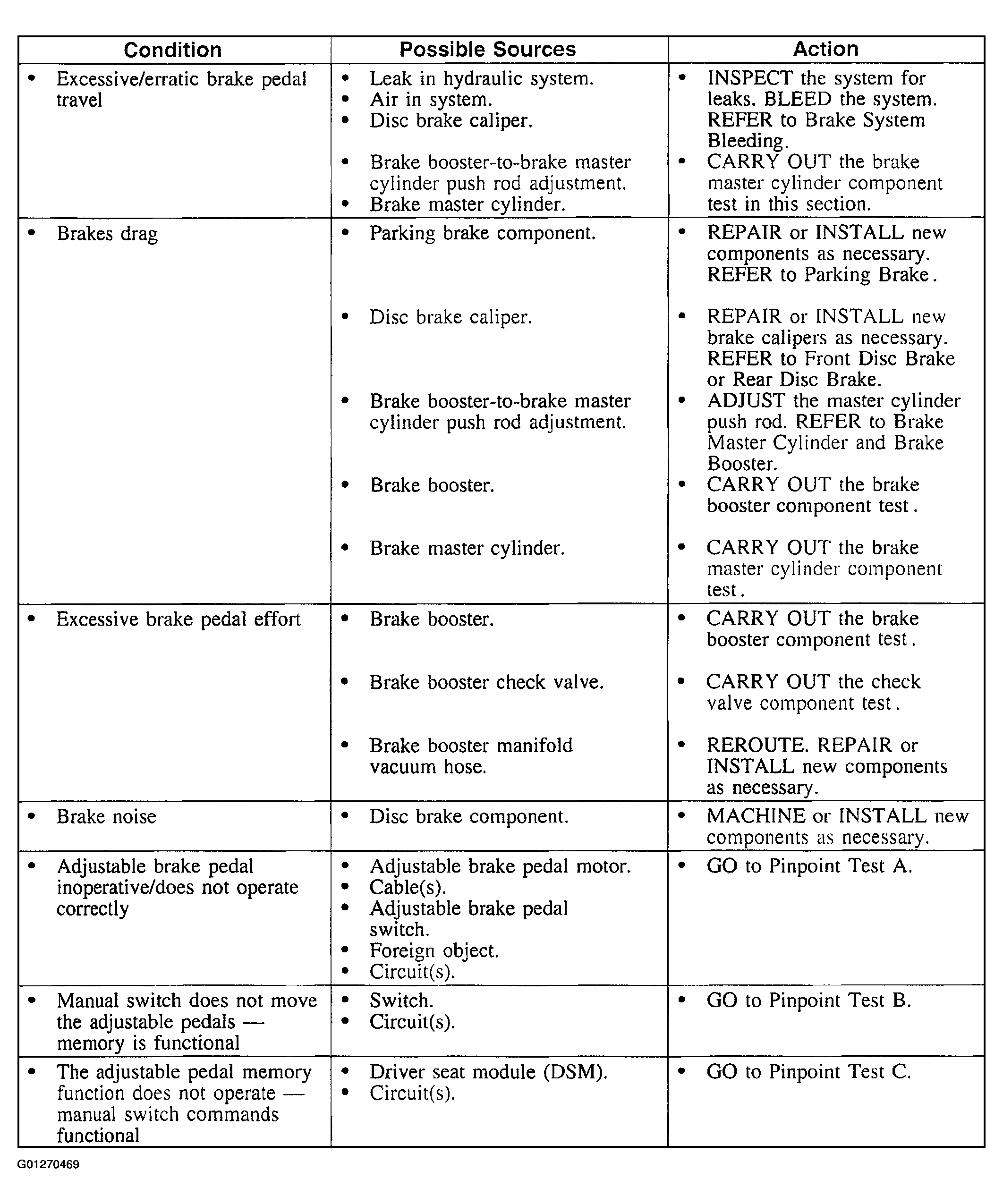

Fig 1: Identifying Symptom Chart - Brake System (1 Of 2)
Courtesy of FORD MOTOR CO.

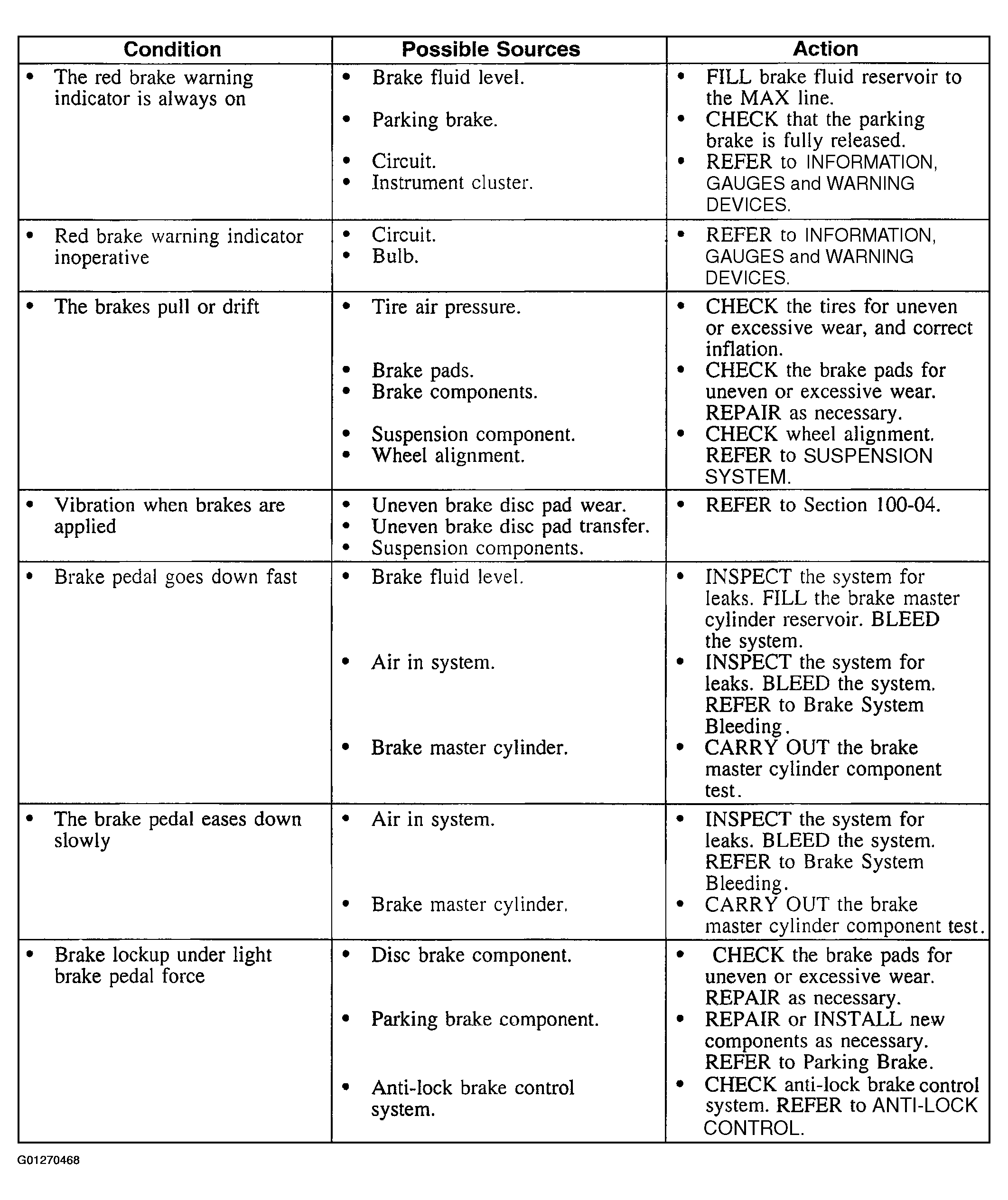

Fig 2: Identifying Symptom Chart - Brake System (2 Of 2)
