Fuel Pump Module: Removal

  1. Remove the fuel tank. For additional information, refer to FUEL TANK .
  2. Disconnect the pressure transducer connector on the top rear corner of the fuel tank.
  3. Clean the area around the fuel pump mounting flange.
    4. CAUTION: The fuel pump must be handled carefully to avoid damage to the float arm and the filter.

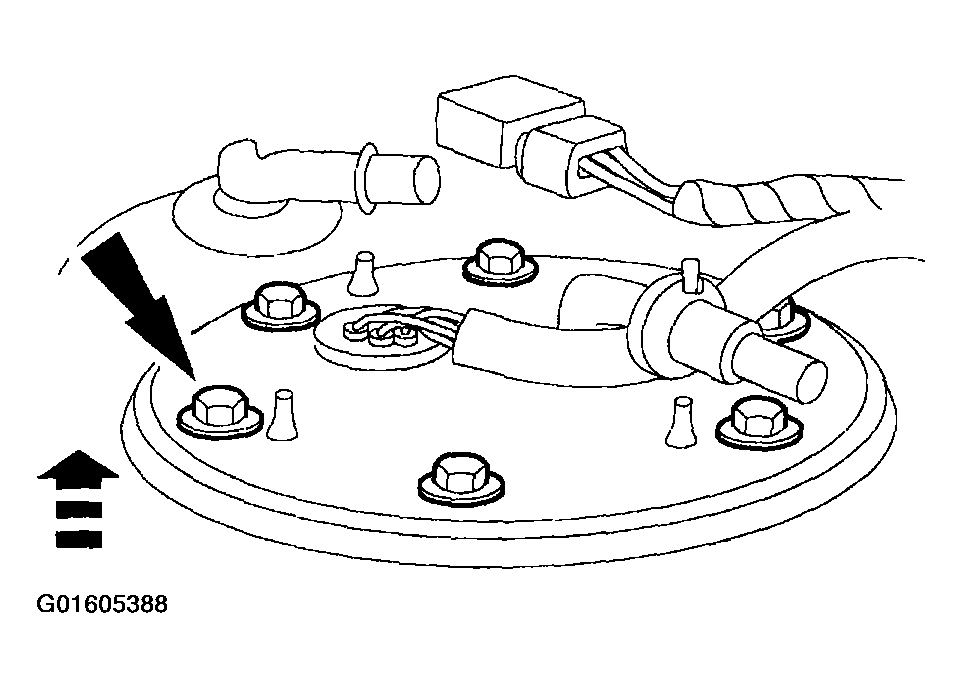

    Fig 1: Removing Fuel Pump Bolts
    G01605388Courtesy of FORD MOTOR CO.
  4. Remove the bolts and the fuel pump.
  5. Remove and discard the fuel pump mounting gasket.
