Connecting Rod - Side Clearance

Measure the clearance between the connecting rod and the crankshaft. Verify the measurement is within specification.

Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .
If out of specification, install new components as necessary. Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .

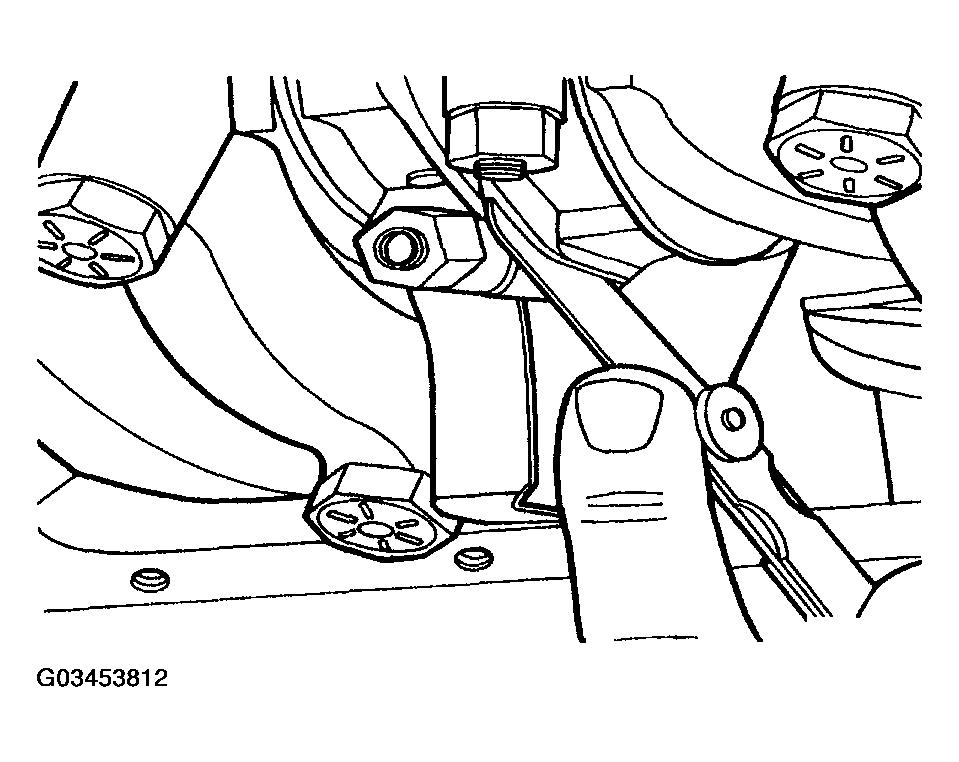

Fig 1: Measuring Clearance Between Connecting Rod And Crankshaft
Courtesy of FORD MOTOR CO.
