Connecting Rod - Bend

Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
- Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .
- If out of specification, install new components as necessary. Refer to ENGINE 4.6L 2V or ENGINE 4.6L 4V .

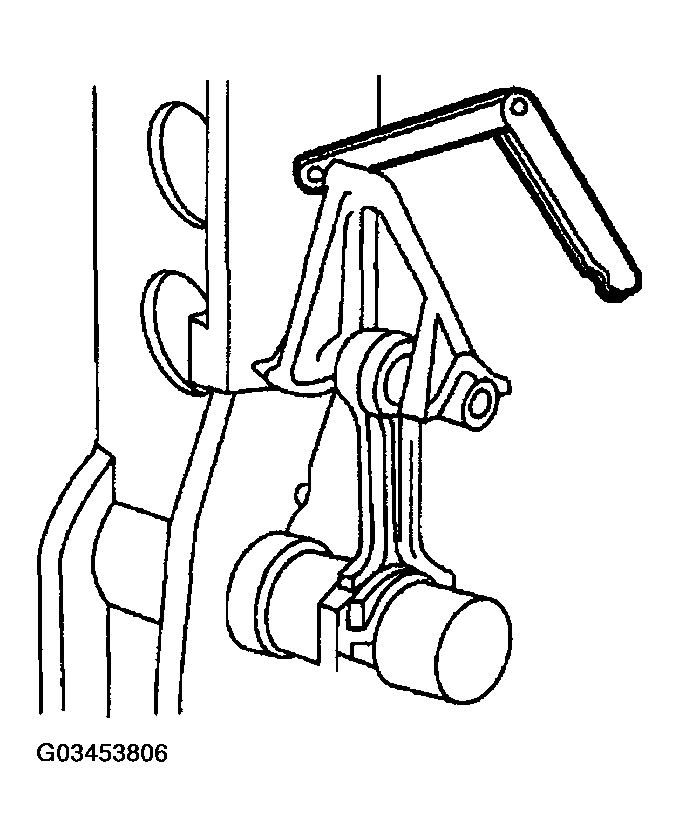

  Fig 1: Measuring Connecting Rod Bend On Suitable Alignment Fixture
  Courtesy of FORD MOTOR CO.
