Bearing - Inspection

  1. Inspect bearings for the following defects.

    Possible causes are shown:

    1. Cratering - fatigue failure.
    2. Spot polishing - incorrect seating.
    3. Imbedded dirt engine oil.
    4. Scratching - dirty engine oil.
    5. Base exposed - poor lubrication.
    6. Both edges worn - journal damaged.
    7. One edge worn - journal tapered or bearing not seated.

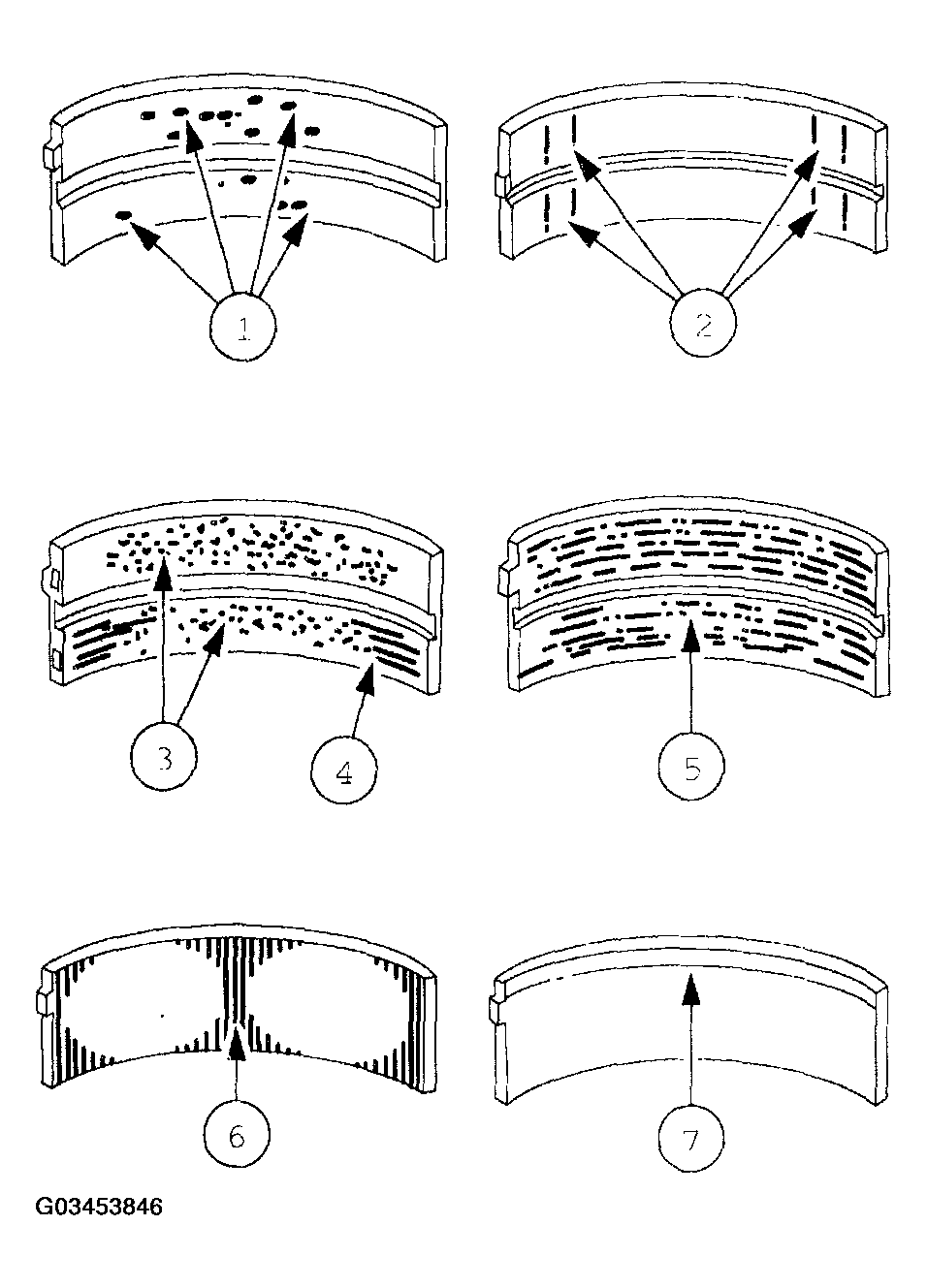

      Fig 1: Inspecting Bearings For Defects
      G03453846Courtesy of FORD MOTOR CO.
