Battery Junction Box
NOTE:

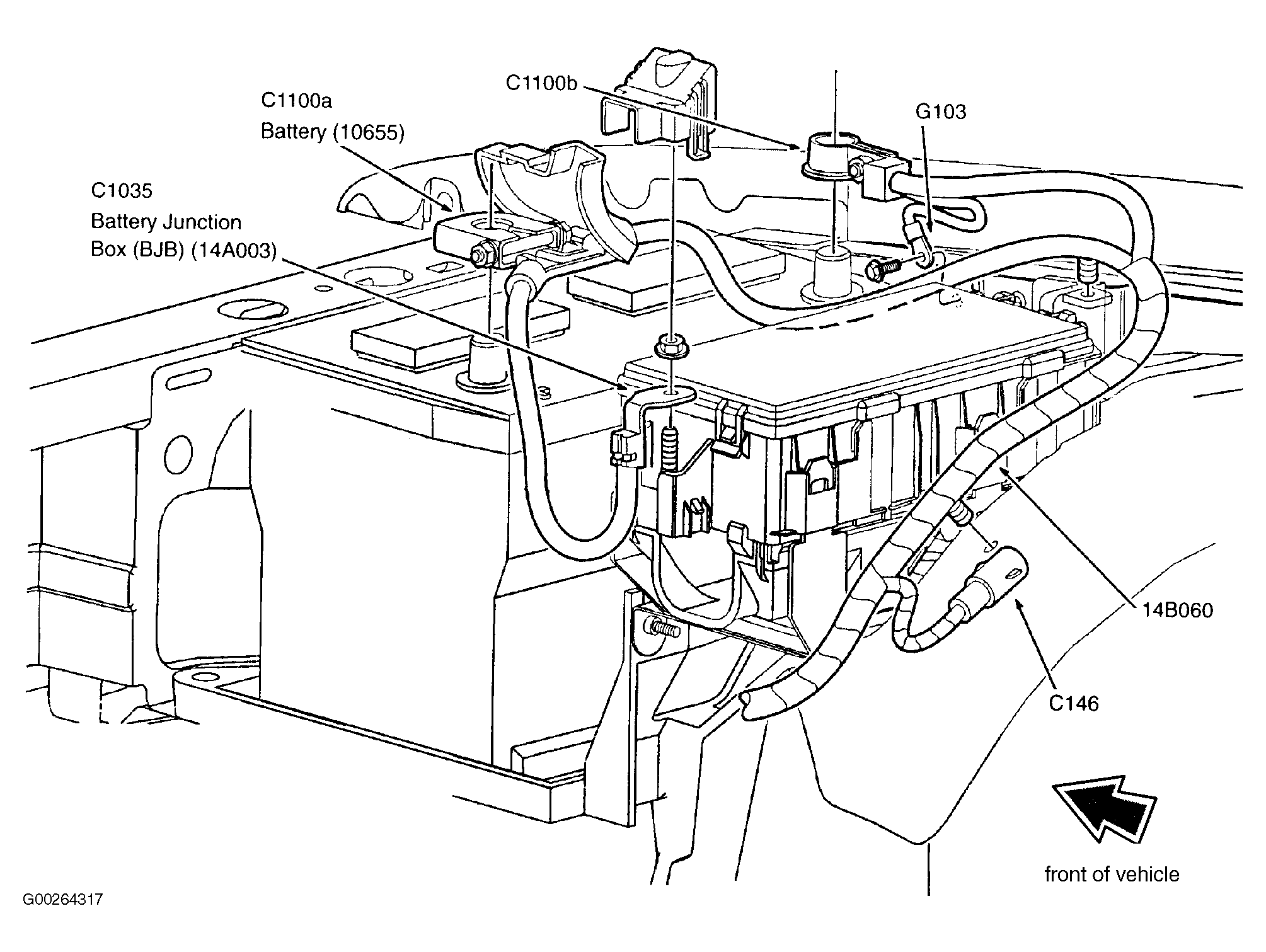

Battery junction box is located on passenger's side of engine compartment, near battery. See Fig 1.
BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C1300 | Air suspension compressor relay |
| C1321 | Front fog lamp cut- off relay |
| C1325 | Police power relay |
| C1364 | Traction control indicator relay |
| C1008 | A/C clutch relay |
| C1051 | Fuel pump relay |
| C1391 | Roof opening panel relay |
| C1016 | PCM power relay |
| C1006 | Horn Relay |
| C1011 | Blower motor relay |
| C1007 | Fog lamp relay |
| C1017 | Starter Relay (11450) |
| C1099 | Rear window defrost relay |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Maxi-fuse | Amps | Circuits protected |
|---|---|---|
| F1.1 | 25 | Subwoofer amplifier (18C804), Radio (18806), CD changer (18D806) |
| F1.2 | 20 | Power point (19N236) |
| F1.3 | 25 | Heated seat module, driver side front, Heated seat module, passenger side front |
| F1.4 | 15 | Horn relay |
| F1.5 | 20 | Fuel pump relay |
| F1.6 | 20 | Police auxiliary junction box, rear |
| F1.7 | 25 | Roof opening panel relay |
| F1.8 | 20 | Driver Door Module |
| F1.9 | - | not used |
| F1.10 | - | not used |
| F1.11 | 20 | Daytime Running Lamps (DRL) module |
| F1.12 | - | not used |
| F1.13 | - | not used |
| F1.14 | - | not used |
| F1.15 | - | not used |
| F1.16 | - | not used |
| F1.17 | - | not used |
| F1.18 | - | not used |
| F1.19 | 15 | Natural Gas Vehicle (NGV) module, Mass Air Flow (MAF) sensor (12B579), Powertrain Control Module (PCM) (12A650), Heated Oxygen Sensor (HO2S) #22 (9G444), Idle air control valve (IAC) (9F715), Differential pressure feedback EGR (DPFE) sensor (9J460), Fuel injectors |
| F1.20 | 15 | Vapor management valve, Differential pressure feedback EGR (DPFE) sensor (9J460), 4R70W transmission, Heated oxygen sensors (HO2S), Evaporative emission (EVAP) canister vent valve (9F945) |
| F1.21 | - | not used |
| F1.22 | - | not used |
| F1.23 | - | not used |
| F1.24 | - | not used |
| F1.101 | 30 | Starter relay (11450), Generator, Ignition switch (11572) |
| F1.102 | 50 | Engine cooling fan motor |
| F1.103 | 40 | Blower motor relay |
| F1.104 | 40 | Rear window defrost relay |
| F1.105 | 30 | Powertrain Control Module (PCM) (12A650), PCM power relay, Natural Gas Vehicle (NGV) module, Data Link Connector (DLC) (14489) |
| F1.106 | 40 | ABS control module (2C219) |
| F1.107 | - | not used |
| F1.108 | - | not used |
| F1.109 | 50 | not used |
| F1.110 | 50 | Police auxiliary junction box, front, Police auxiliary junction box, rear |
| F1.111 | 30 | Police power relay |
| F1.112 | 50 | Central Junction Box (CJB) (14A068), Ignition switch (11572) |
| F1.113 | 50 | Central Junction Box (CJB) (14A068) |
| F1.114 | 30 | Variable Assist Power Steering (VAPS) module, Air suspension module (3C142), Air suspension compressor relay, Instrument cluster |
| F1.115 | 50 | Ignition switch (11572) |
| F1.116 | 30 | Windshield wiper motor (17508) |
| F1.117 | 50 | Police auxiliary junction box, front, Police auxiliary junction box, rear |
| F1.118 | 20 | ABS control module (2C219) |
| F1.602 | 20cb | Seat adjust switch, driver side front (14A701), Lumbar adjust switch, left front (14B691), Fuel door release switch, Luggage compartment lid release switch 2, Adjustable pedal switch, Lumbar adjust switch, right front, Seat adjust switch, passenger side front, Door lock switch, driver side (14028), Luggage compartment lid release switch 1, Door lock switch, passenger side (14028) |
