Removal and Installation

CAUTION: The front wheel speed sensor acts as a wheel bearing seal. Do not operate the vehicle without the front wheel speed sensor installed.

Disconnect the front anti-lock brake sensor electrical connector.

Fig 1: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

WARNING: The electrical power to the air suspension system must be turned off prior to hoisting, jacking or towing an air suspension vehicle. Failure to do so can result in unexpected inflation or deflation of the air springs, which can result in shifting of the vehicle during these operations.

Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Disconnect the routing clips.

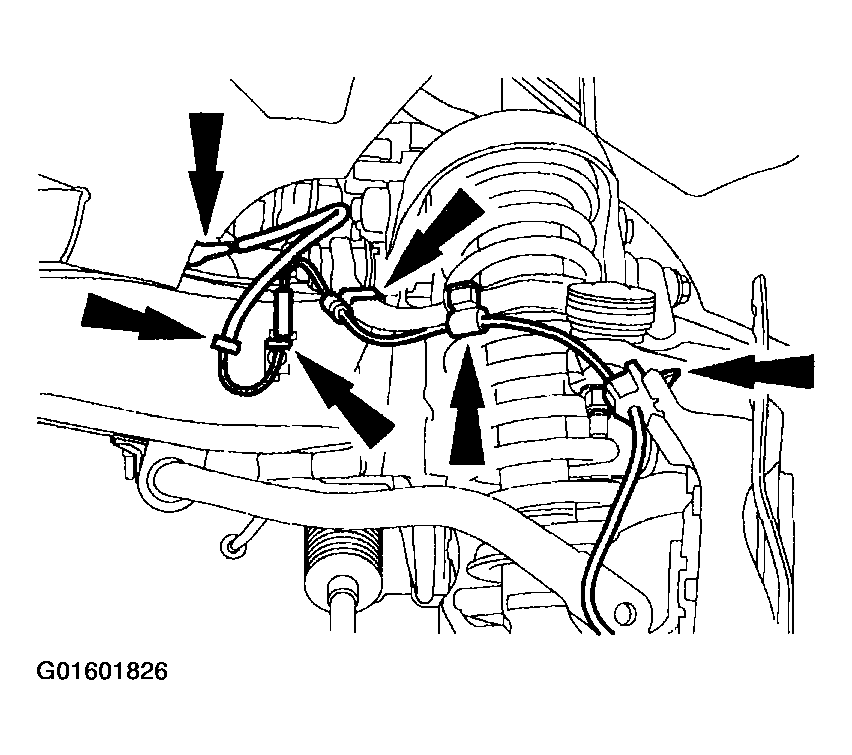

Fig 2: Disconnecting Routing Clips
Courtesy of FORD MOTOR CO.
Clean the area around the front wheel speed sensor of all dirt and foreign material before removal.

CAUTION: Be sure to remove all dirt and foreign material from the area before installation.

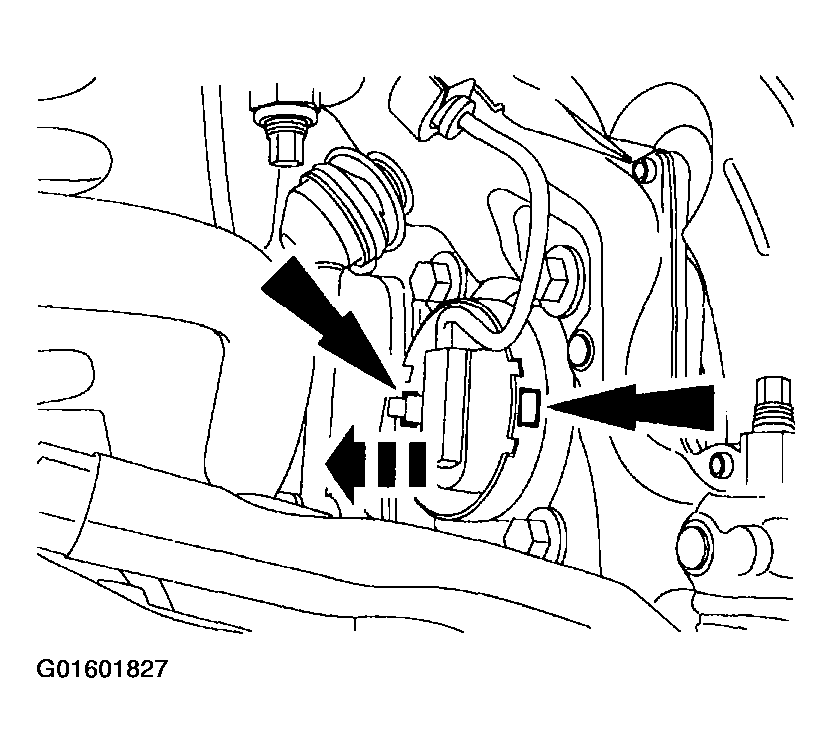

Fig 3: Removing Sensor From Housing

Courtesy of FORD MOTOR CO.

Remove the front anti-lock brake sensor.
- Push the tabs inward, using a flat-blade screwdriver.
- Pry the sensor out of its housing.

NOTE: If the front wheel speed sensor wire clips are damaged, repair kit 2C577 is available.

To install, reverse the removal procedure.
