Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the anti-lock brake system module electrical connectors.
- Disconnect the control module electrical connector.
- Disconnect the pump motor electrical connector.

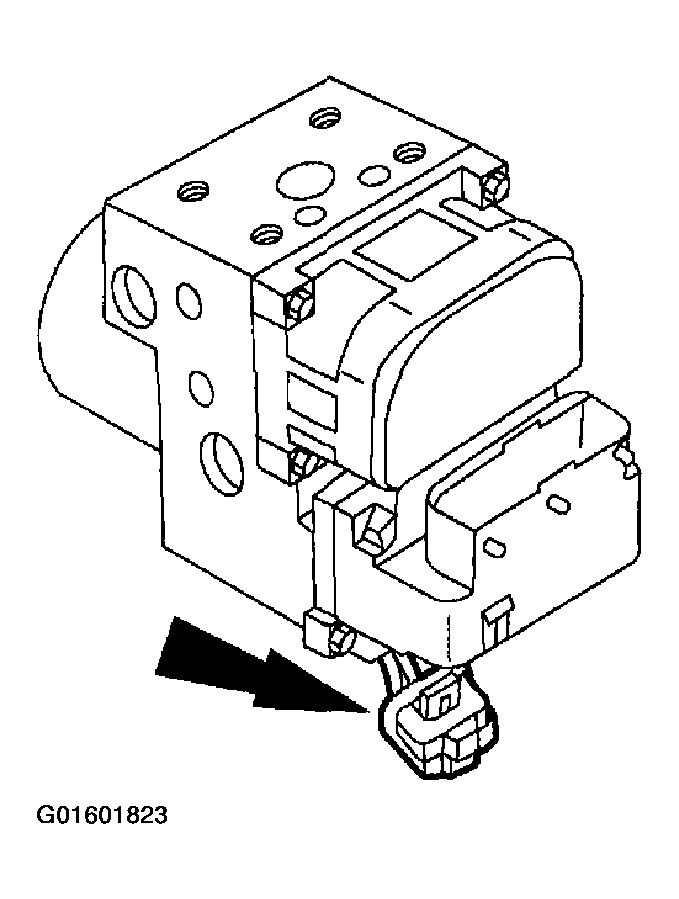

Fig 1: Disconnecting Anti-Lock Brake System Module Electrical Connectors
Courtesy of FORD MOTOR CO.

NOTE: Do not pry the module from the HCU.

Fig 2: Removing Anti-Lock Brake System Module

Courtesy of FORD MOTOR CO.

Remove the anti-lock brake system module.
- Remove the screws in the sequence shown.
- Remove the module.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn its strategy.

NOTE: Be sure the ABS module-to-HCU gasket is clean and installed correctly.

To install, reverse the removal procedure.
