Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Diagnosis And Testing
>>
Anti-Lock Control - Anti-Wheelspin Control
>>
Symptom Chart
Symptom Chart

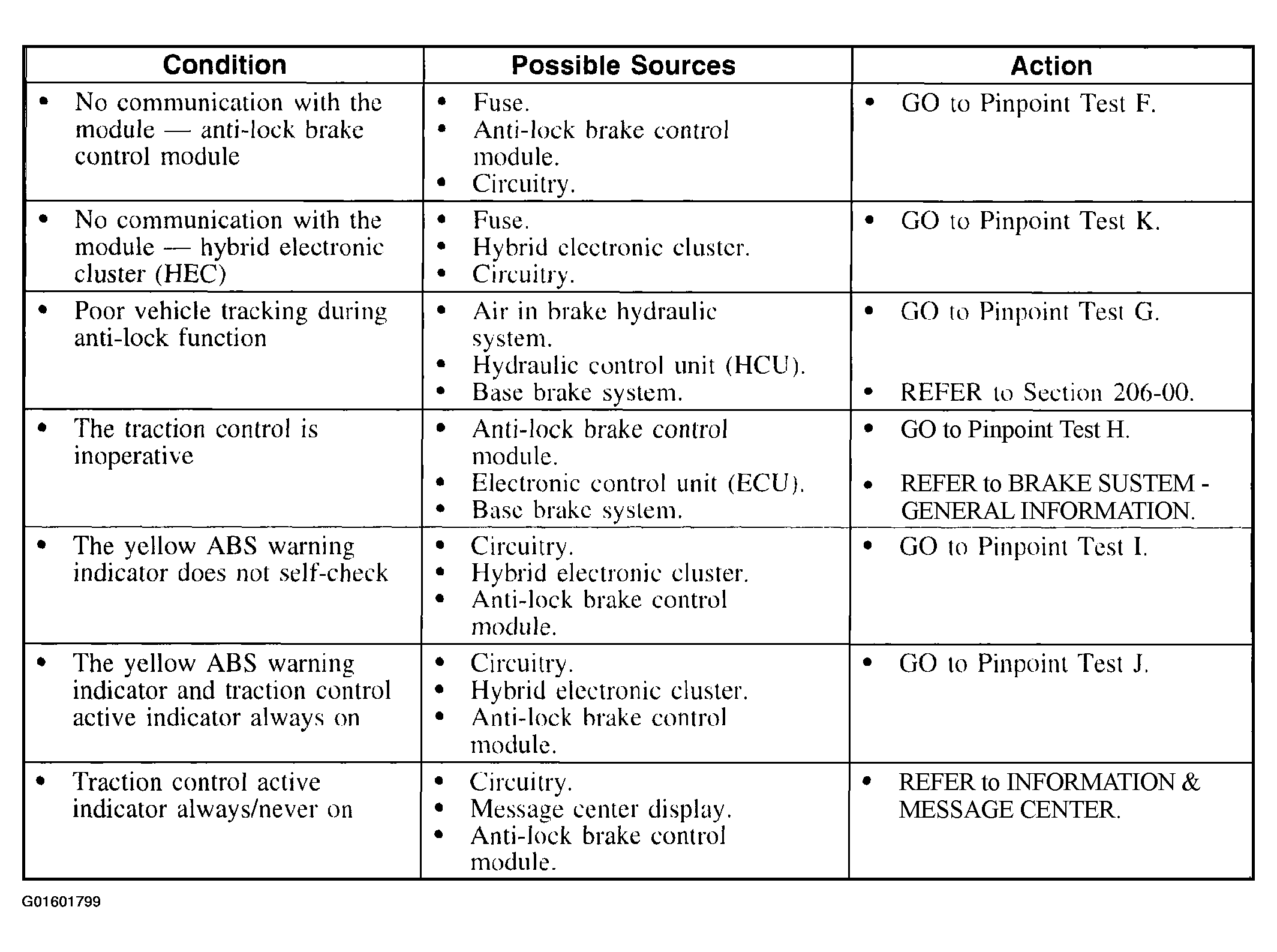

Fig 1: Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

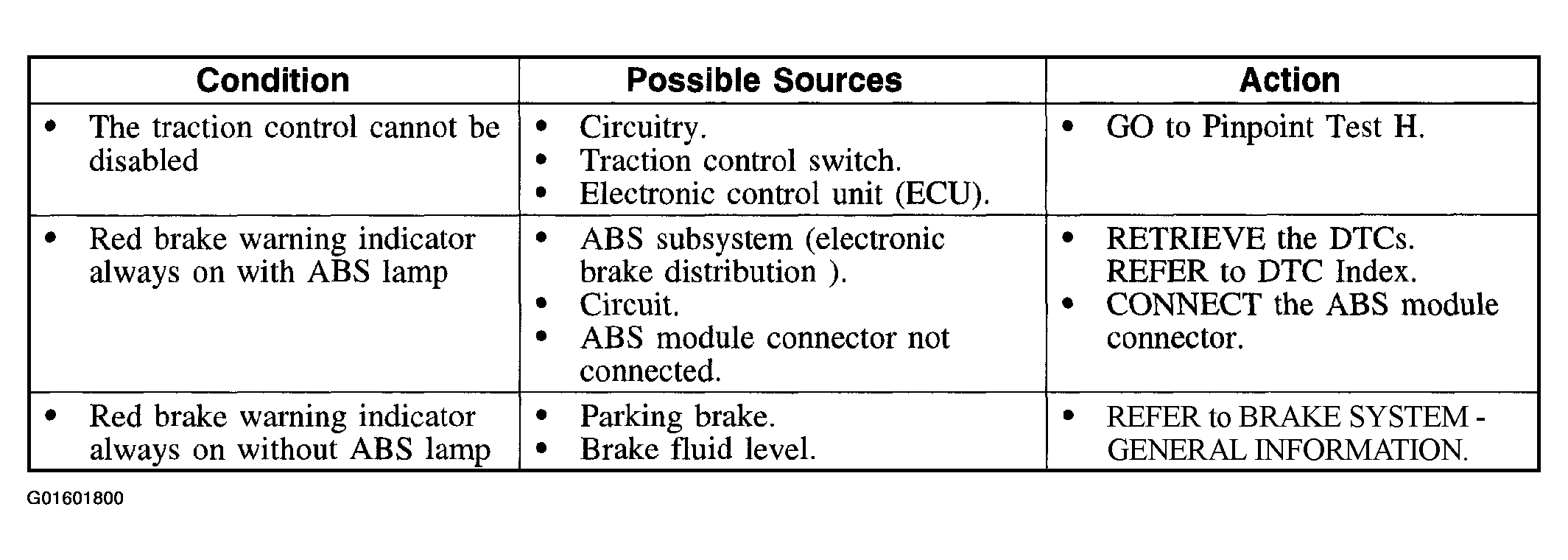

Fig 2: Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
