Speed Control Switch: Removal

  1. Remove the steering wheel. For additional information, refer to STEERING COLUMN
  2. Remove the steering wheel cover screws.
    Fig 1: Removing Steering Wheel Cover Screws
    G01605477Courtesy of FORD MOTOR CO.
  3. Remove the steering wheel cover.
    1. Position the steering wheel cover aside.
    2. Disconnect the electrical connector and wire harness from the steering wheel cover.

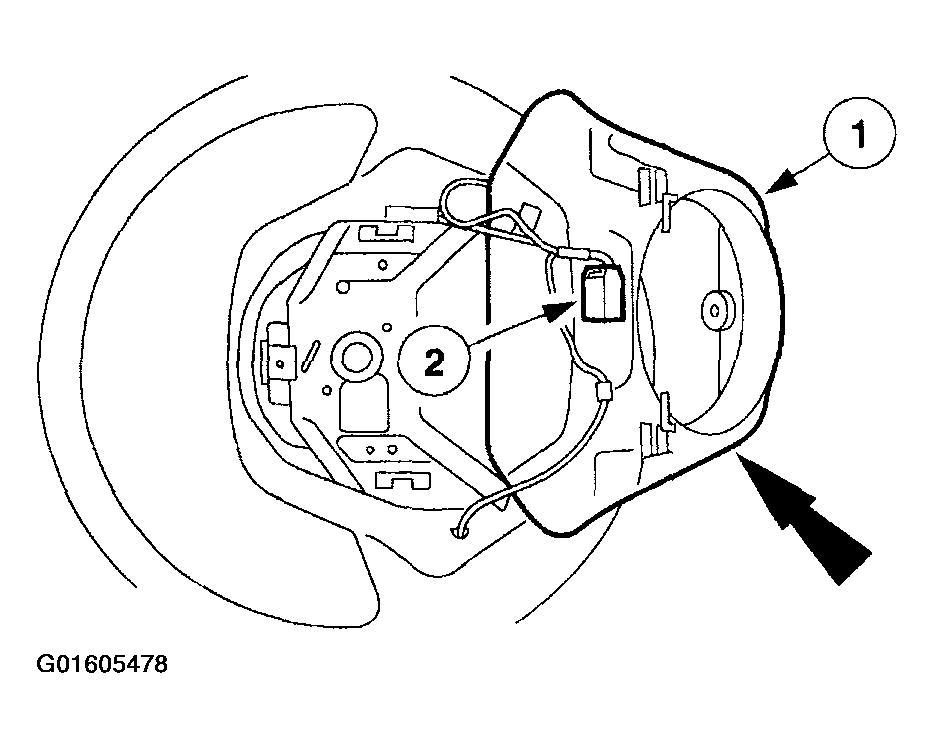

      3. Fig 2: Removing Steering Wheel Cover
      G01605478Courtesy of FORD MOTOR CO.
  4. Remove the speed control actuator switches.
    1. Push the speed control actuator switches out towards the face of the steering wheel.
    2. Position the speed control actuator switches through the steering wheel openings and remove.
    Fig 3: Removing Speed Control Actuator Switches
    G01605479Courtesy of FORD MOTOR CO.
