Speed Control Deactivator Switch: Installation

  1. Fully depress the brake pedal.
  2. Install the deactivator switch.
    1. Position the deactivator switch in the bracket and rotate clockwise.
    2. Connect the electrical connector.

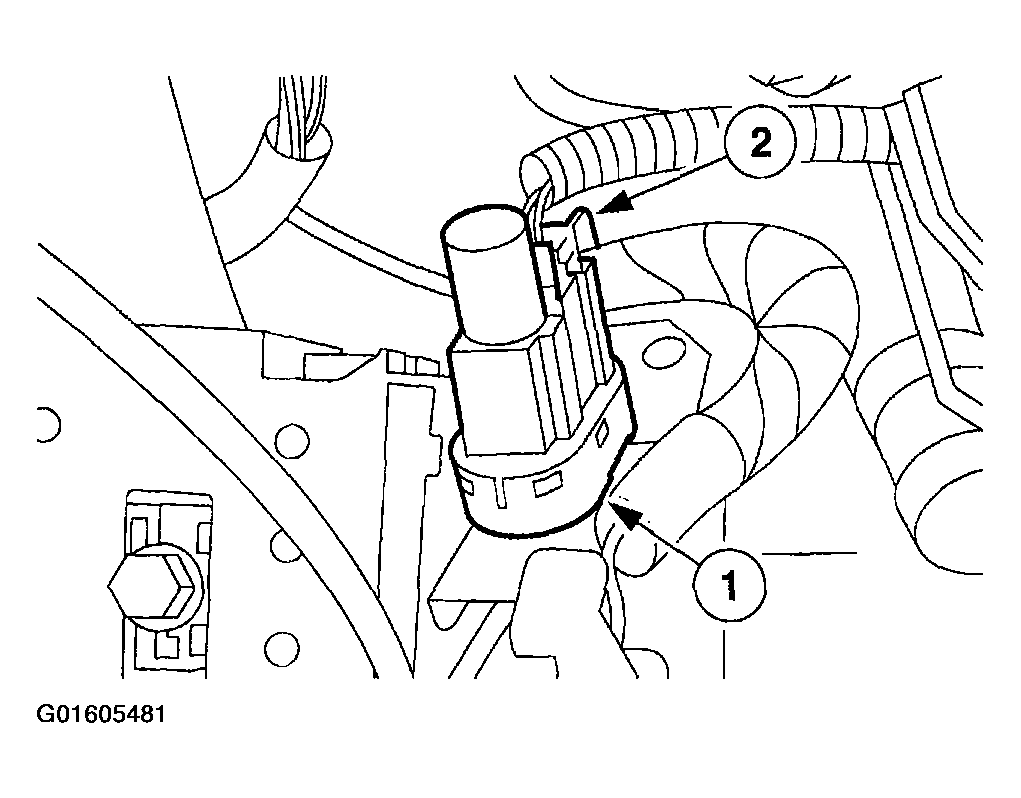

    Fig 1: Connecting Electrical Connector
    G01605481Courtesy of FORD MOTOR CO.
  3. Slowly release the brake pedal.
  4. Connect the battery ground cable.
