Speed Control Cable: Removal

NOTE: Crown Victoria and Grand Marquis shown, Marauder is similar.
  1. Remove the nut and the engine cover.
    Fig 1: Removing Engine Cover Nut
    G01605465Courtesy of FORD MOTOR CO.
  2. Remove the bolt and the speed control actuator cable from the throttle lever.

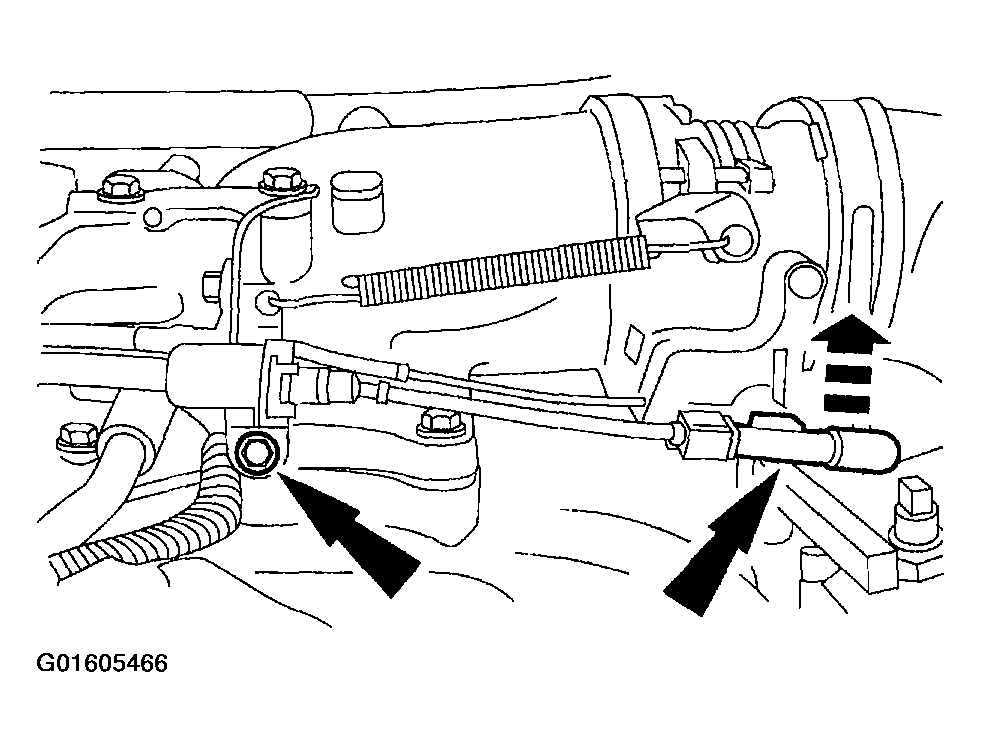

    Fig 2: Removing Speed Control Actuator Cable From Throttle Lever Bolts
    G01605466Courtesy of FORD MOTOR CO.
  3. Remove the speed control actuator cable cap from the speed control actuator.
    1. Push in the locking arm on the speed control actuator cable cap.
    2. Rotate the speed control actuator cable cap counterclockwise.

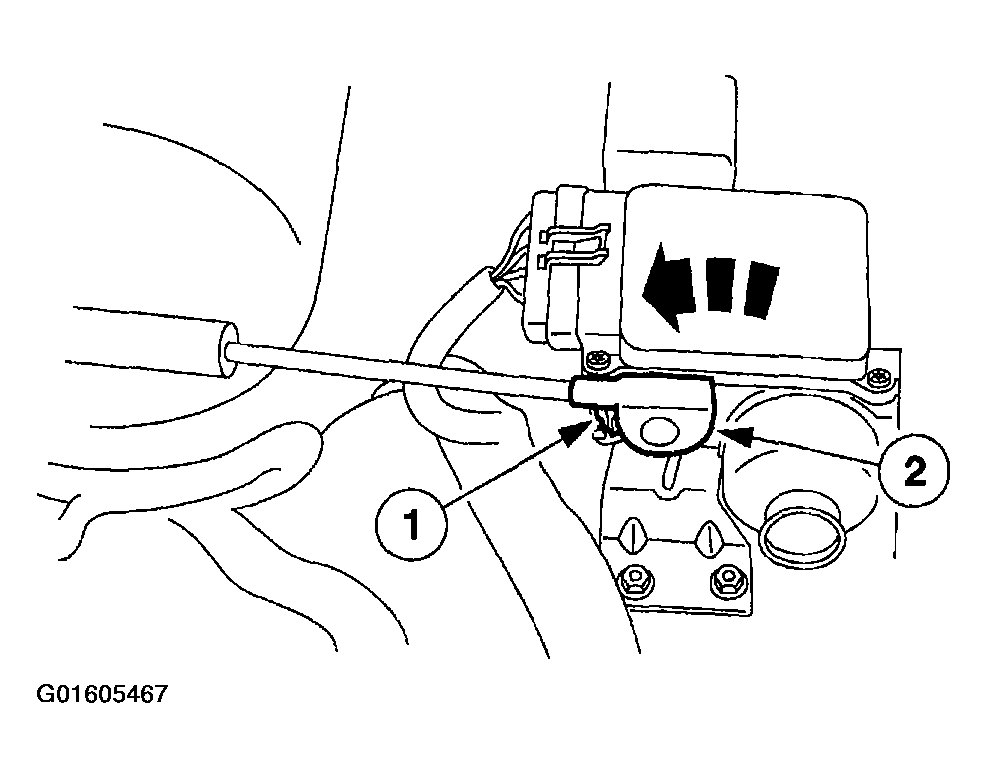

    Fig 3: Rotating Speed Control Actuator Cable Cap Counterclockwise
    G01605467Courtesy of FORD MOTOR CO.
  4. Remove the speed control actuator cable from the speed control actuator pulley.
    1. Depress the spring retainer.
    2. Slide the core wire end out of the speed control actuator pulley and remove the speed control actuator cable.
    Fig 4: Removing Speed Control Actuator Cable From Speed Control Actuator Pulley
    G01605468Courtesy of FORD MOTOR CO.
