Pinpoint Tests

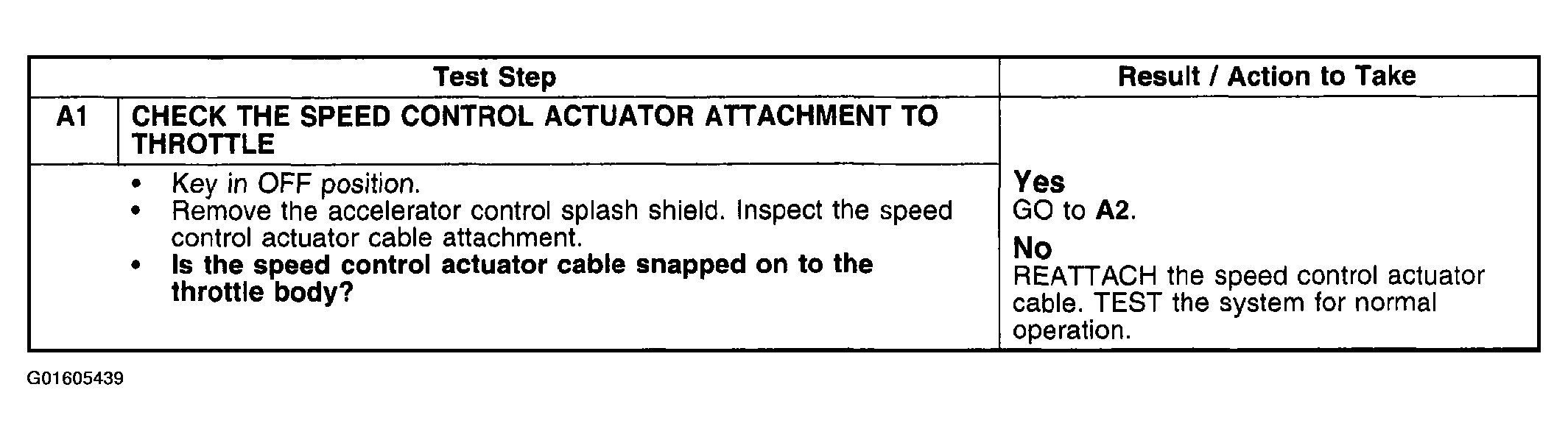

Fig 1: Pinpoint Test A: Speed Control Is Inoperative (A1)

Courtesy of FORD MOTOR CO.

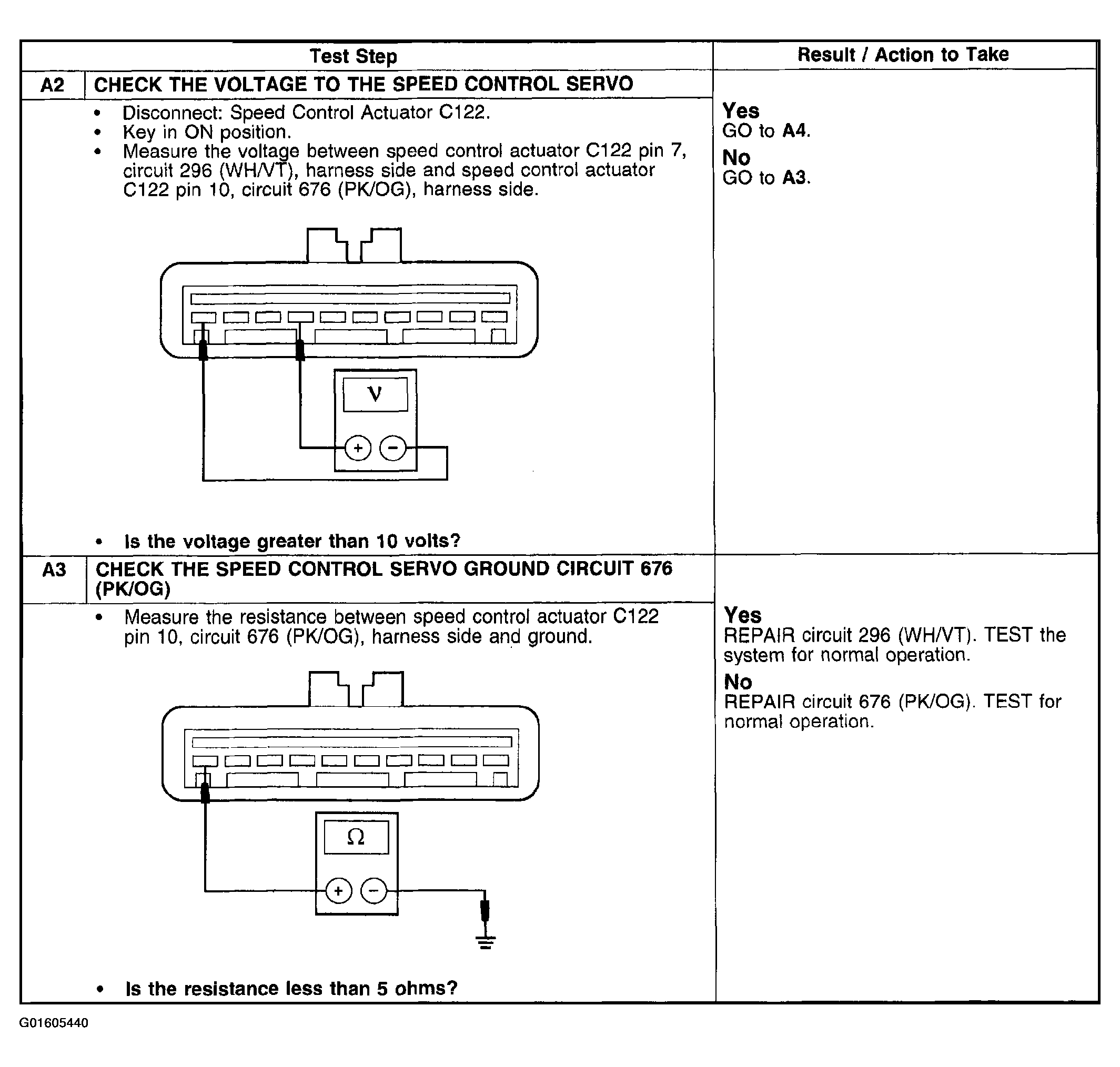

Fig 2: Pinpoint Test A: Speed Control Is Inoperative (A2-A3)

Courtesy of FORD MOTOR CO.

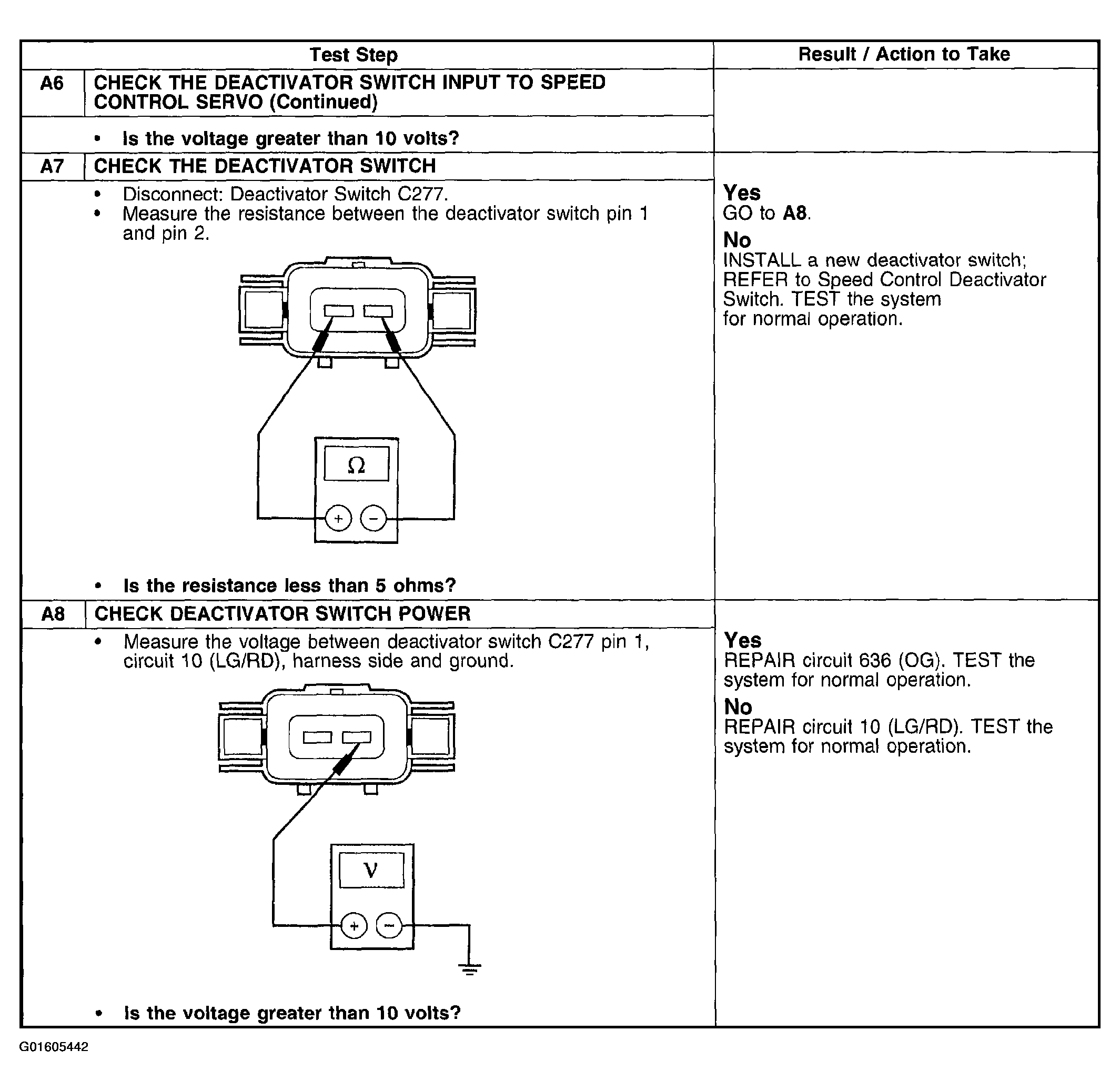

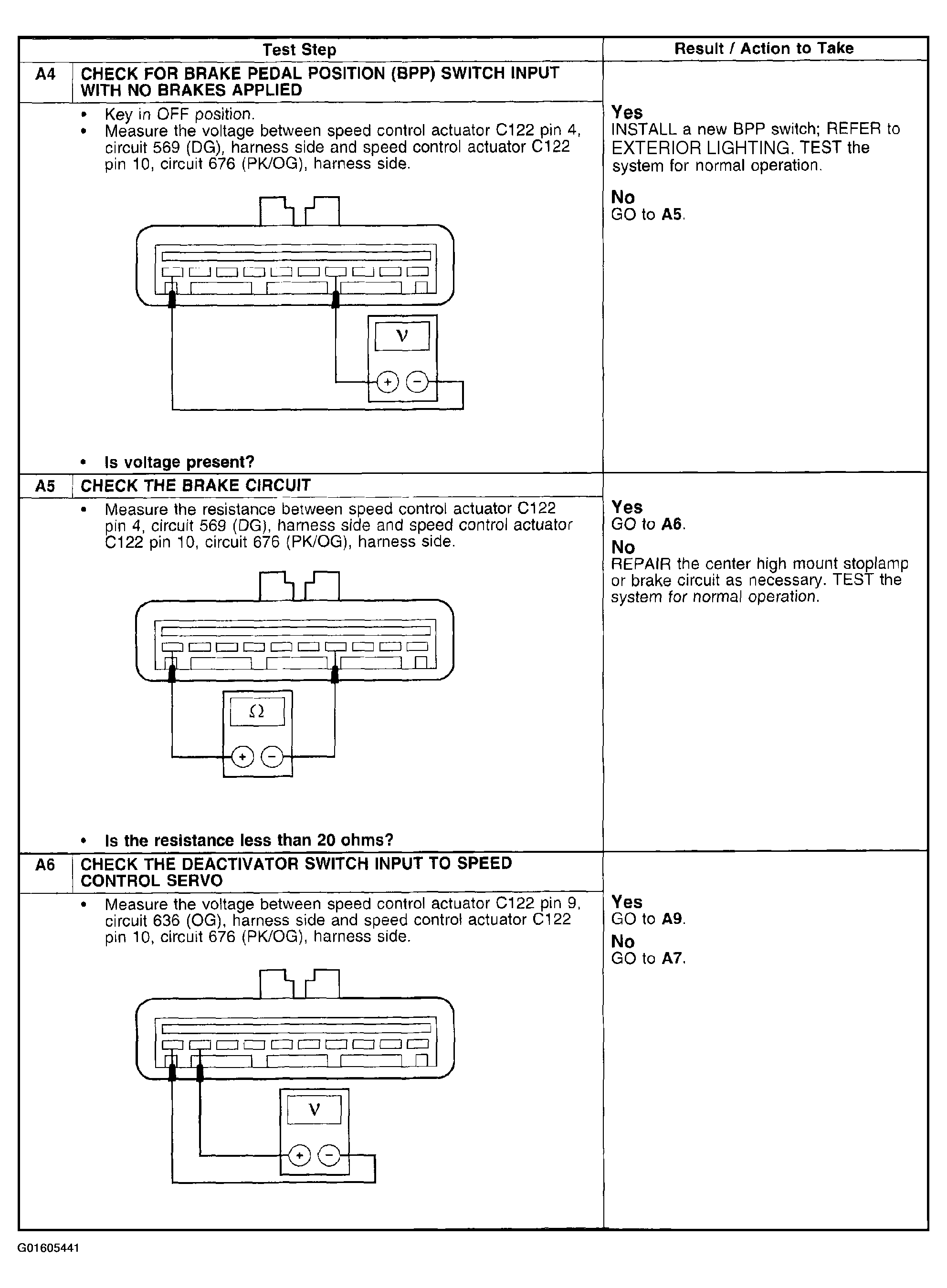

Fig 3: Pinpoint Test A: Speed Control Is Inoperative (A4-A6)

Courtesy of FORD MOTOR CO.

Fig 4: Pinpoint Test A: Speed Control Is Inoperative (A6 Cont.-A8)

Courtesy of FORD MOTOR CO.

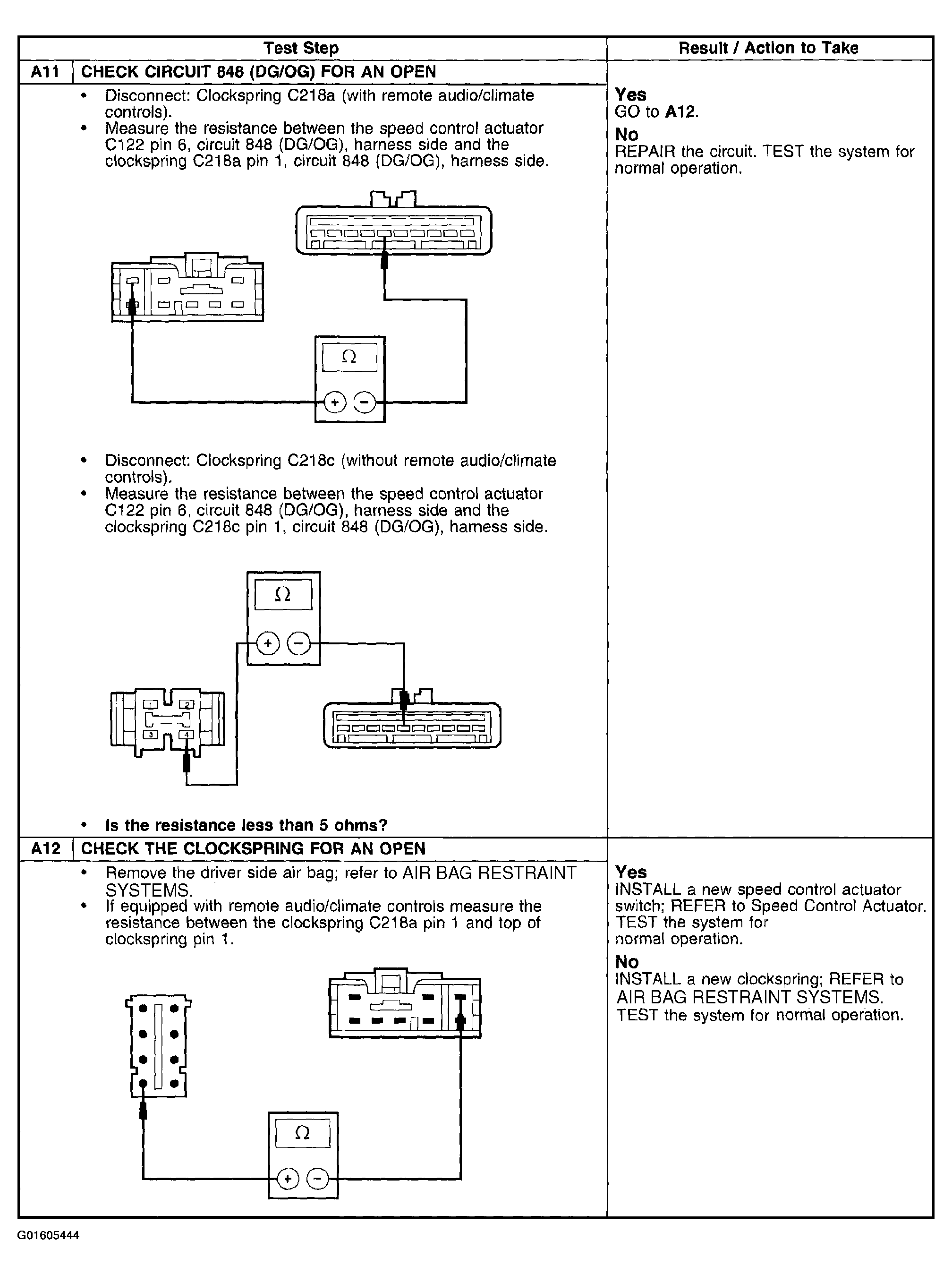

Fig 5: Pinpoint Test A: Speed Control Is Inoperative (A9-A10)

Courtesy of FORD MOTOR CO.

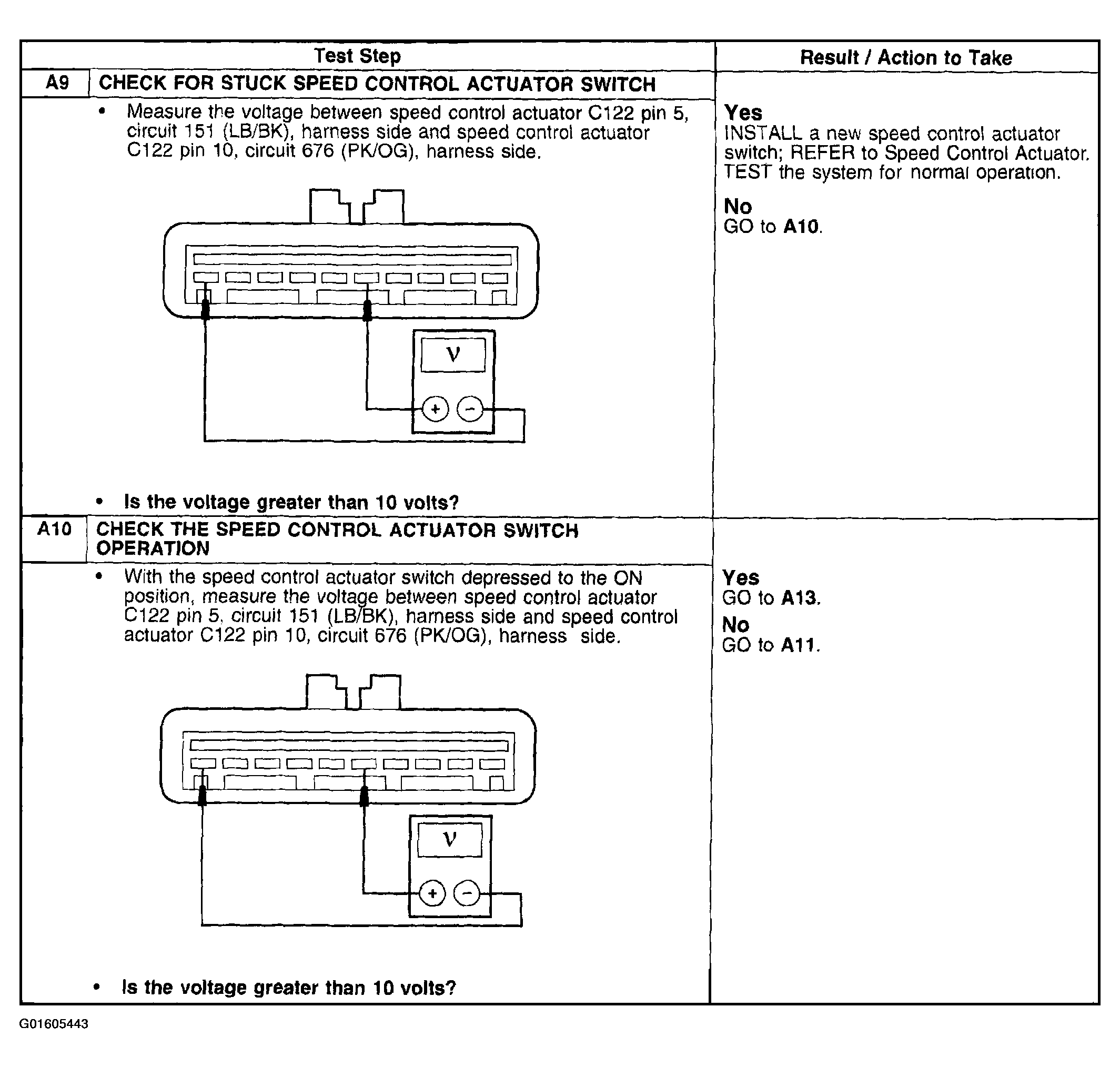

Fig 6: Pinpoint Test A: Speed Control Is Inoperative (A11-A12)

Courtesy of FORD MOTOR CO.

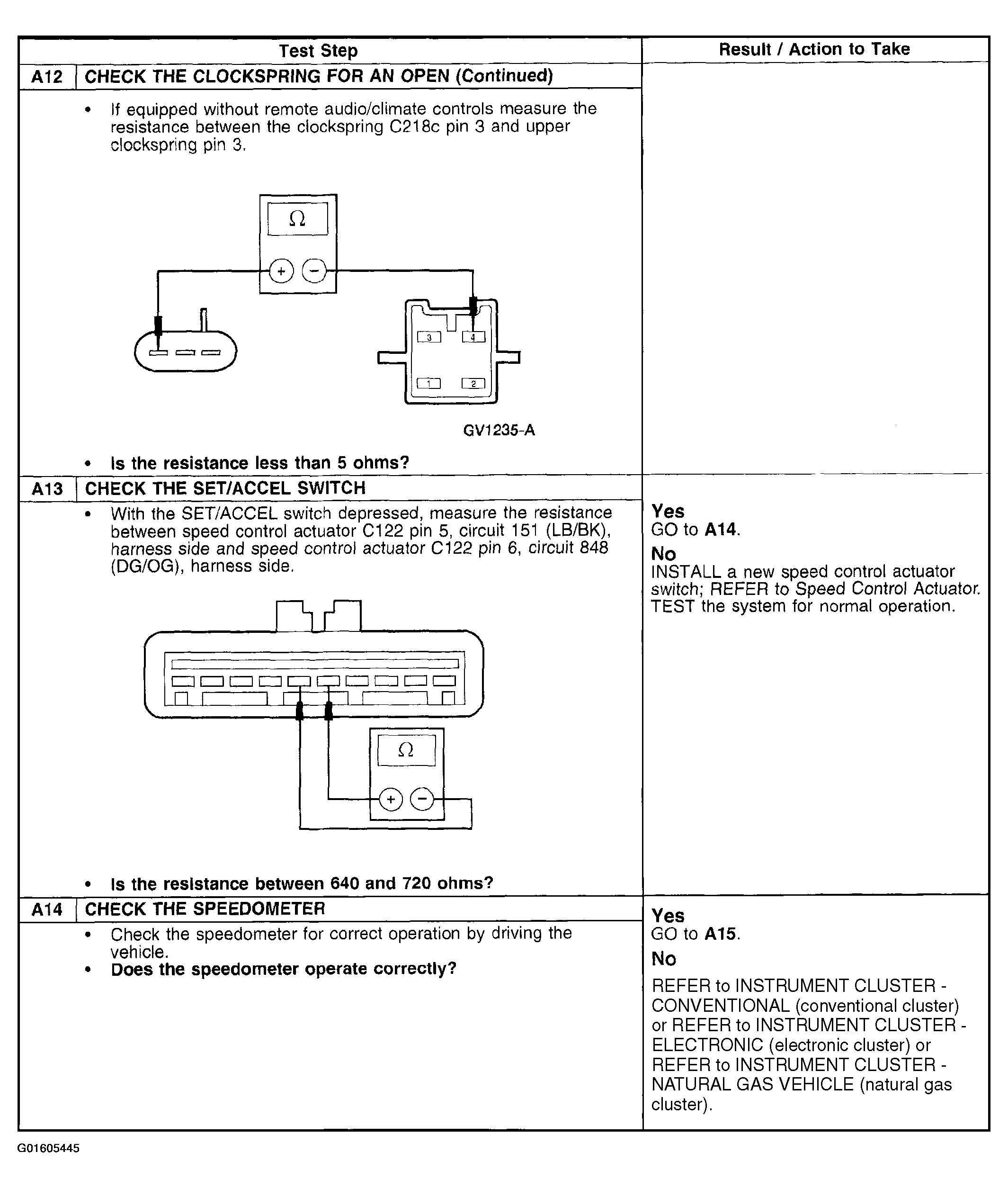

Fig 7: Pinpoint Test A: Speed Control Is Inoperative (A12 Cont.-A14)

Courtesy of FORD MOTOR CO.

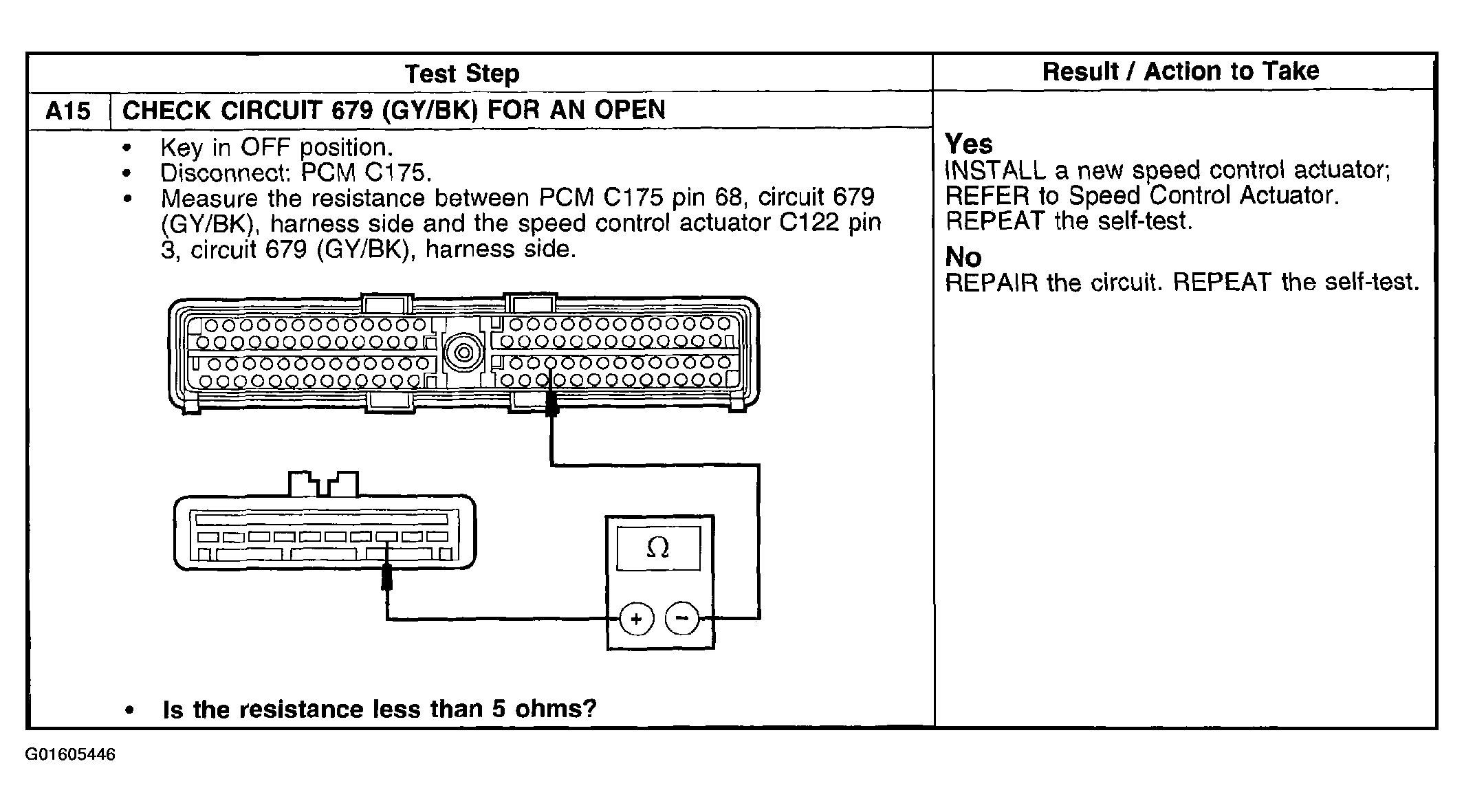

Fig 8: Pinpoint Test A: Speed Control Is Inoperative (A15)

Courtesy of FORD MOTOR CO.
