Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control (EATC) Module

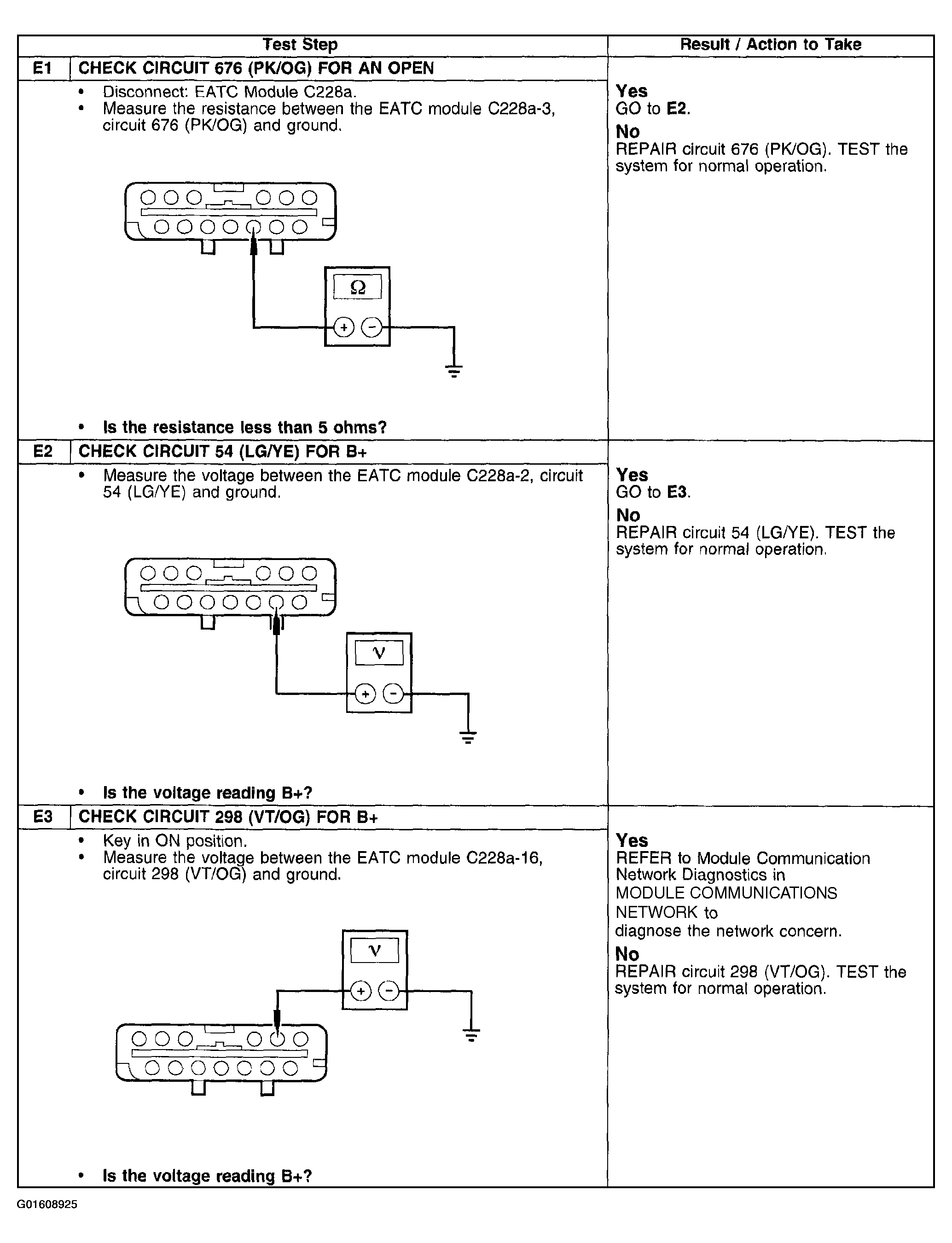

Fig 1: Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control (EATC) Module
G01608925Courtesy of FORD MOTOR CO.
