Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the LH instrument panel lower insulator.
1. Remove the pin-type retainers.
2. Disconnect the courtesy lamp.

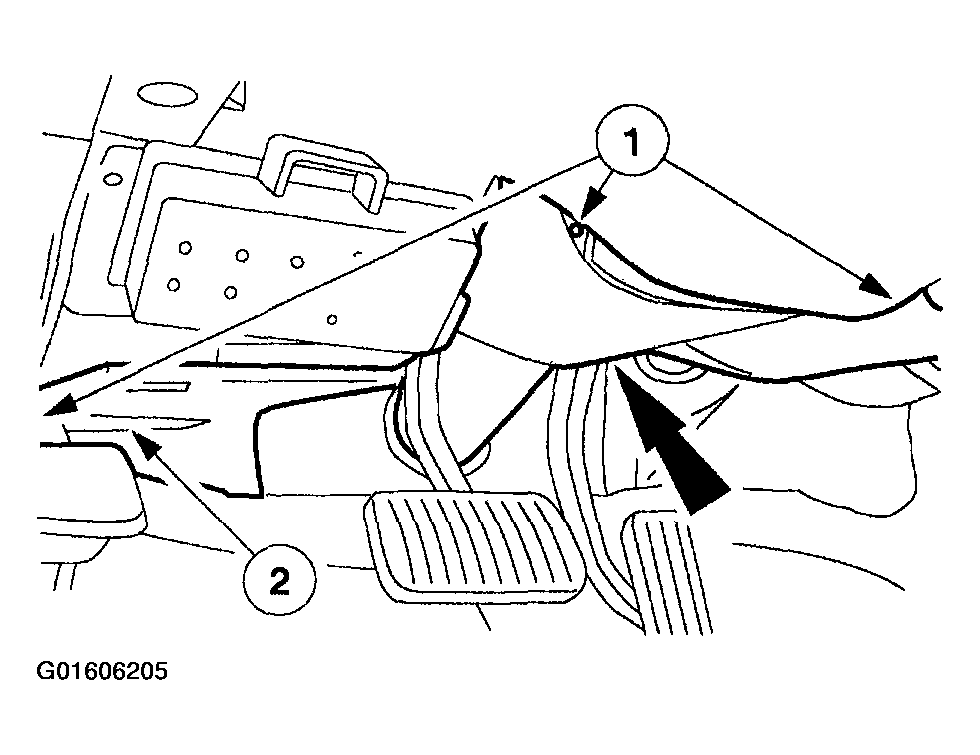

Fig 1: Removing LH Instrument Panel Lower Insulator
Courtesy of FORD MOTOR CO.
If equipped with adjustable pedals, remove the accelerator pedal, and shaft. For additional information, refer to ACCELERATION CONTROL .
Position the LCM aside.
1. Remove the screws.
2. Release the locking tab.

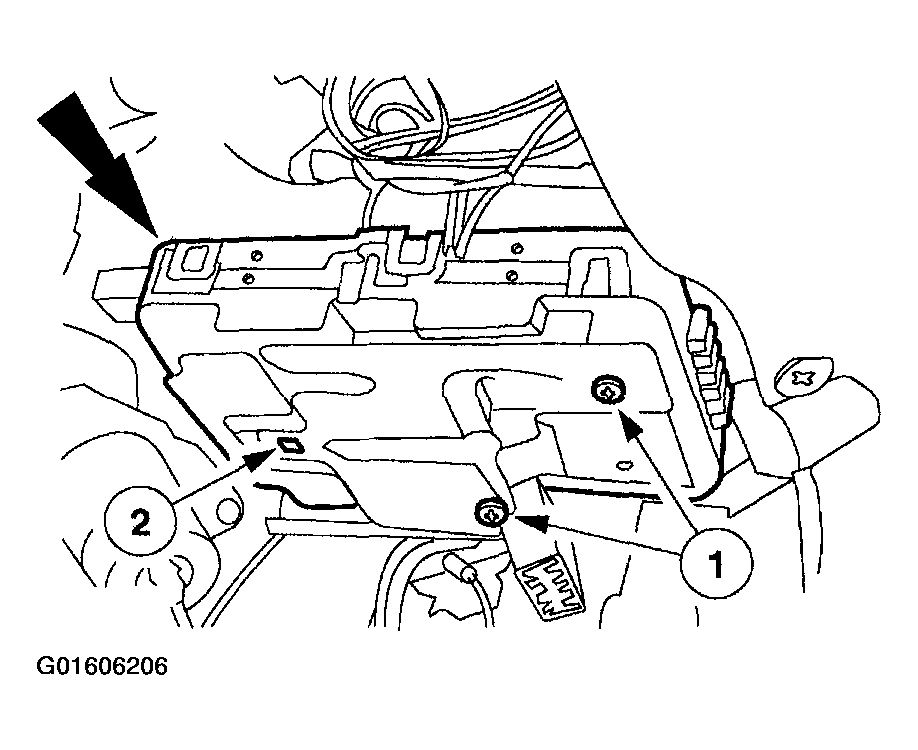

Fig 2: Positioning LCM Aside
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and remove the LCM.

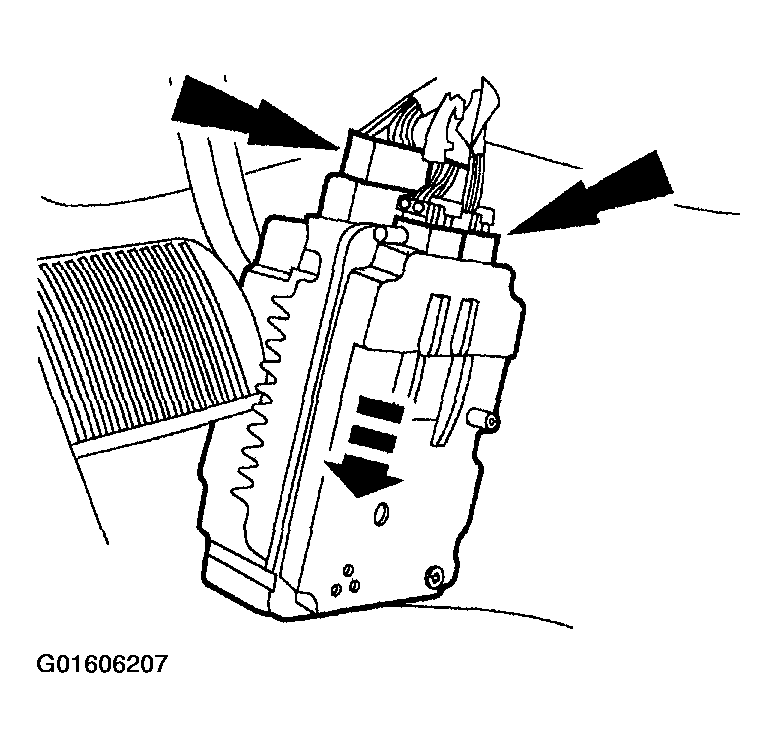

Fig 3: Disconnecting Electrical Connectors And Removing LCM
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Check for correct operation.
