Removal And Installation: Tubes: Removal

NOTE: Place a drain pan under the fluid cooler inlet hose.

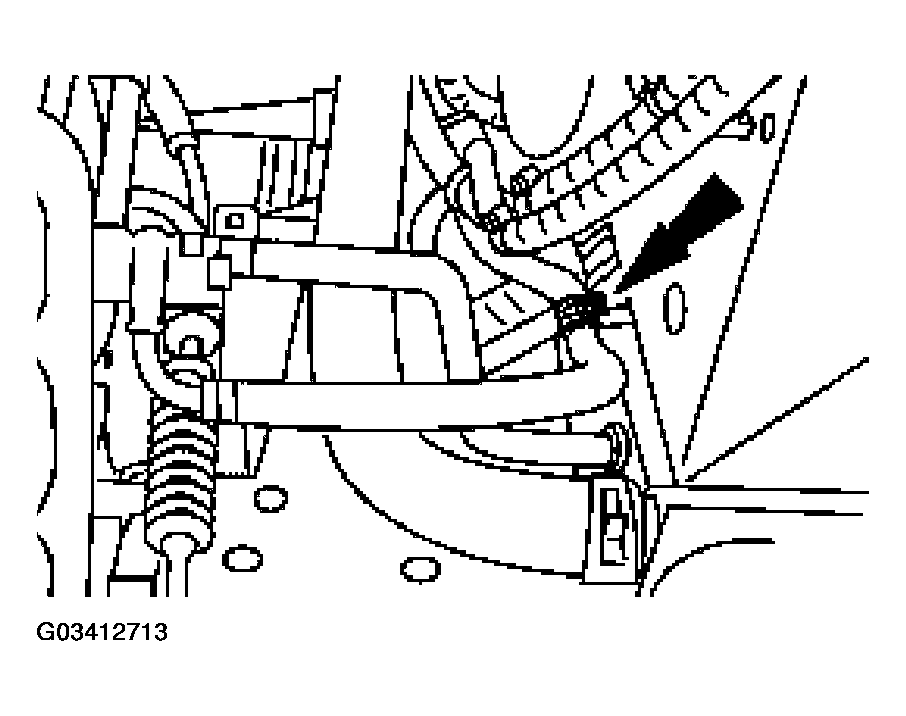

Fig 1: Disconnecting Upper Hose Clamp

Courtesy of FORD MOTOR CO.

Disconnect the upper hose clamp.
Raise and support the vehicle.
Remove the lower splash shield.
Disconnect the lower hose clamp.

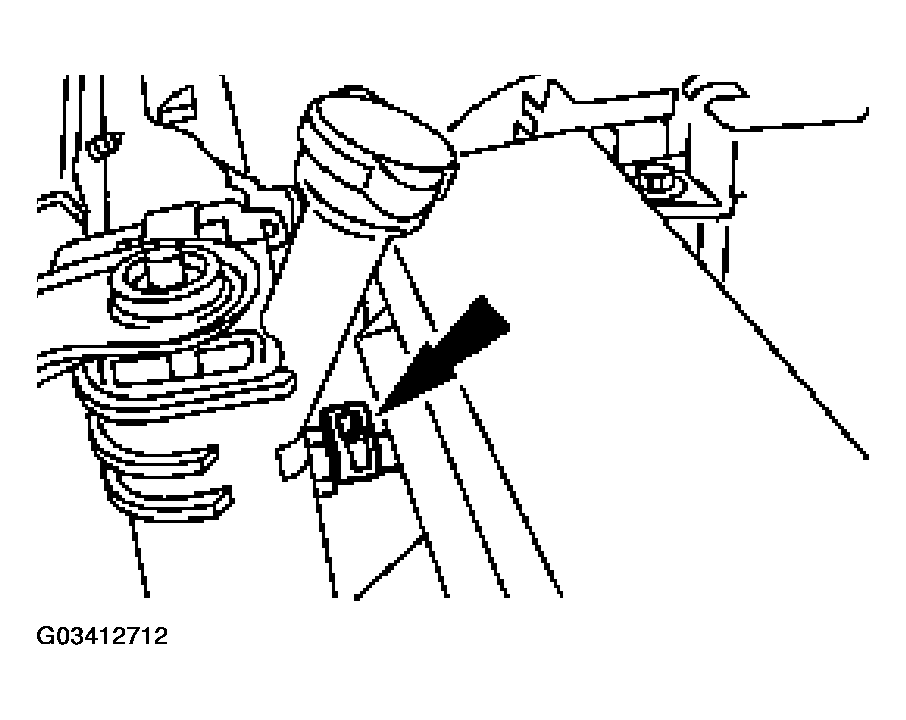

Fig 2: Removing Lower Splash Shield
Courtesy of FORD MOTOR CO.
Remove the inlet tube from the tank.
Disconnect the clamps and remove the outlet tube.

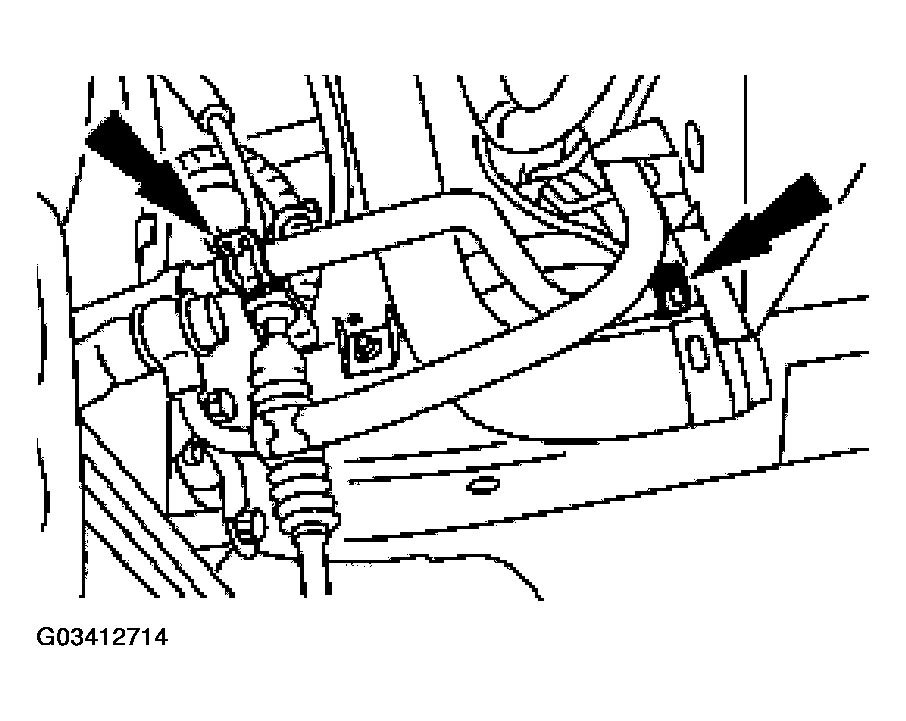

Fig 3: Disconnecting Clamps And Removing Outlet Tube
Courtesy of FORD MOTOR CO.
