Transaxle Support Insulator - Rear: Installation

    NOTE: The transaxle may have to be lowered to gain clearance to install the insulator.
  1. Install the lower rear transaxle support insulator.
    1. Install the insulator.
    2. Install the through bolt.

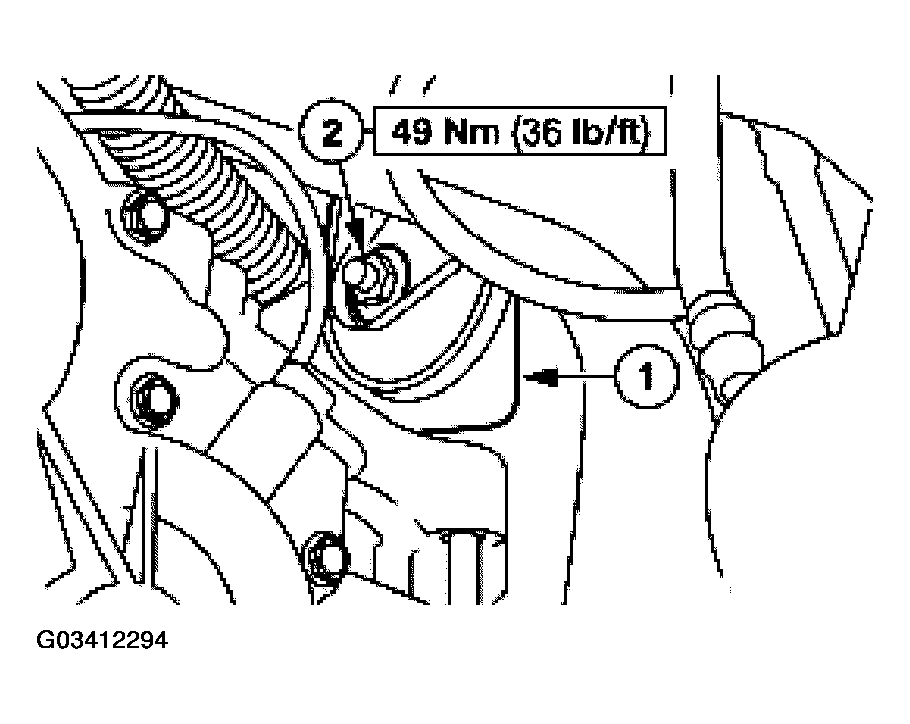

      Fig 1: Installing Through Bolt
      G03412294Courtesy of FORD MOTOR CO.
  2. Install the lower rear transaxle support insulator mount nuts.

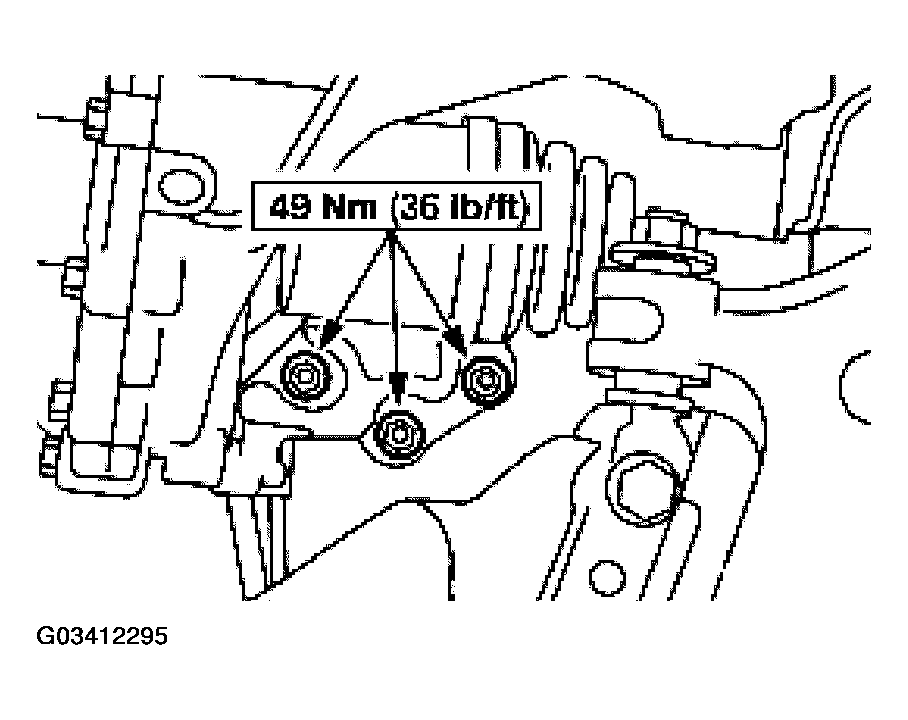

    Fig 2: Installing Lower Rear Transaxle Support Insulator Mount Nuts
    G03412295Courtesy of FORD MOTOR CO.
  3. Remove the jack.
