Special Tool(s)
Special Tool(s)

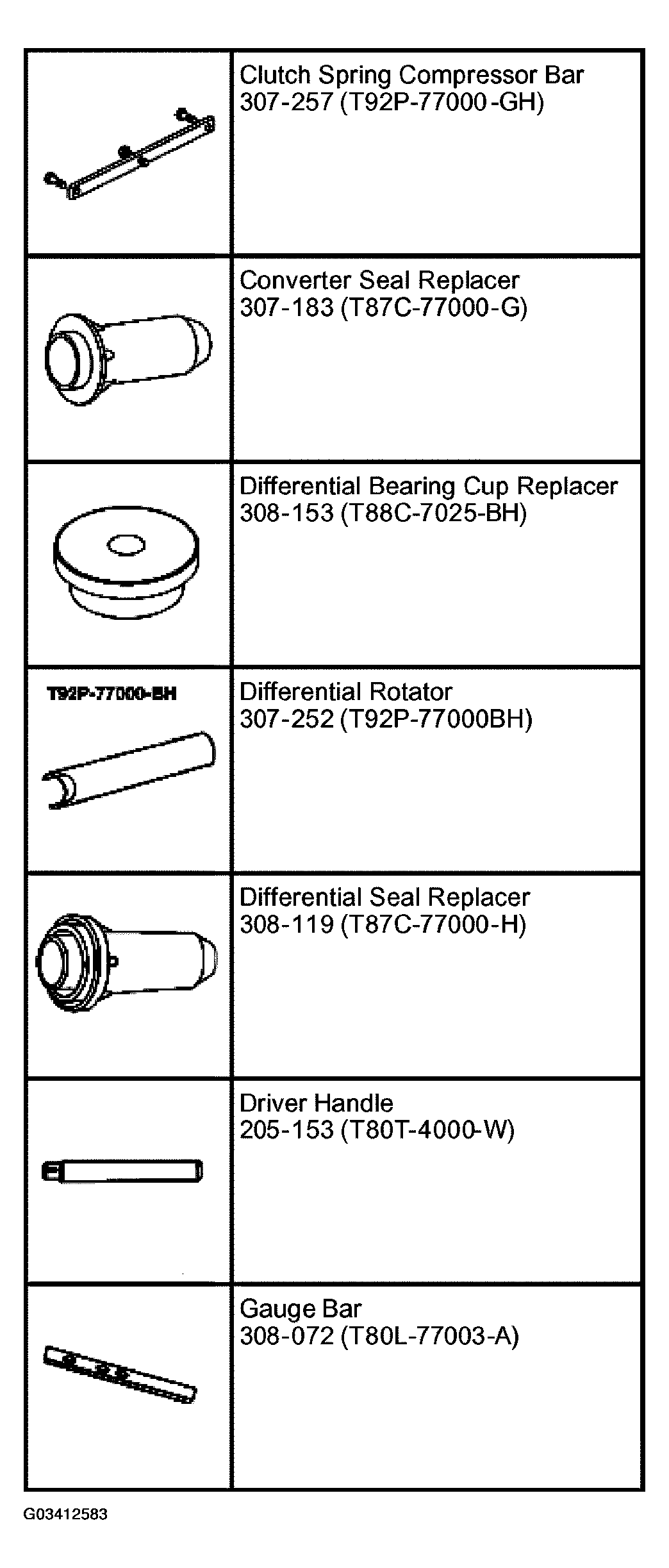

Fig 1: Identifying Special Tool(s) (1 Of 2)
Courtesy of FORD MOTOR CO.

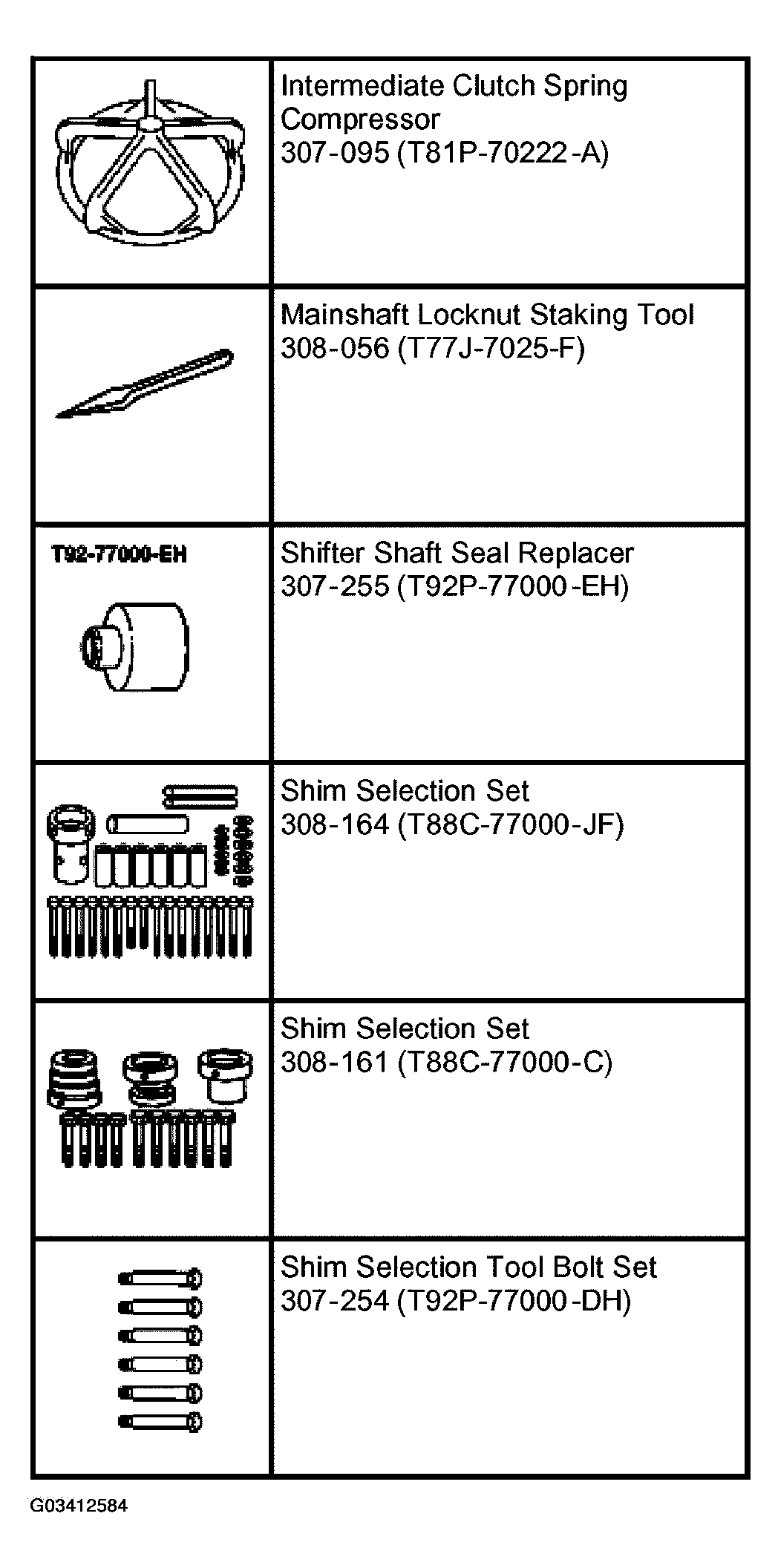

Fig 2: Identifying Special Tool(s) (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
