Connecting Rod - Twist

  1. Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the measurement is within specification.
    • For additional information, refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary. Refer to 3.3L V6 for the procedure.

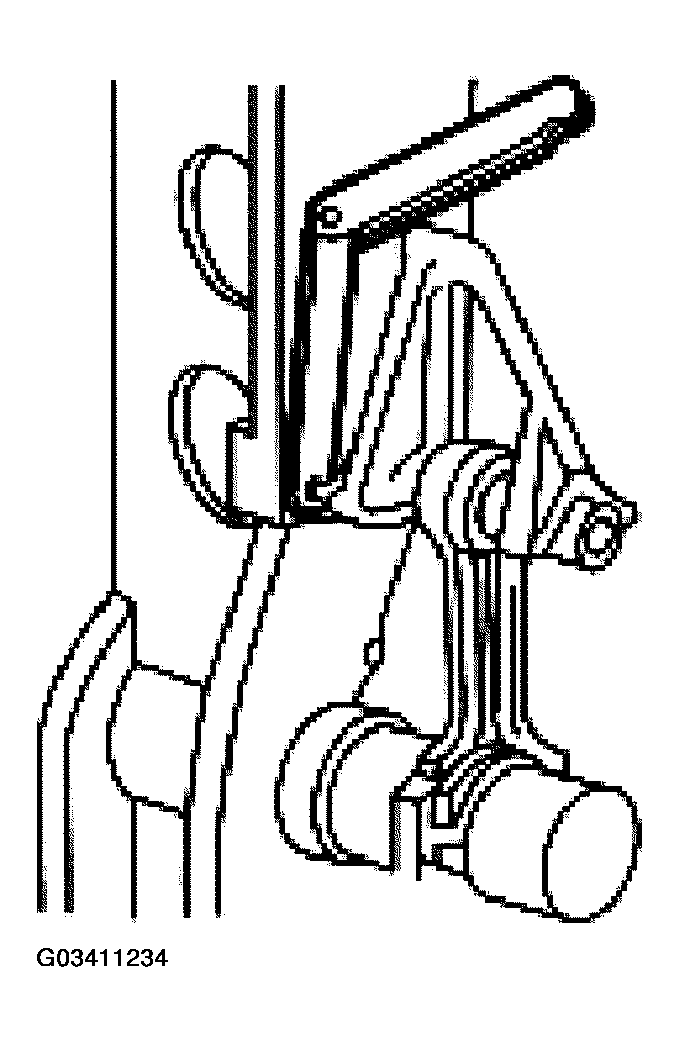

      Fig 1: Measuring Connecting Rod Twist
      G03411234Courtesy of FORD MOTOR CO.
