Shift Solenoids (SS): Removal

  1. Remove the main control valve body. Refer to MAIN CONTROL VALVE BODY .
  2. Remove the line pressure solenoid.
    1. Remove the bolt.
    2. Remove the solenoid from the valve body.

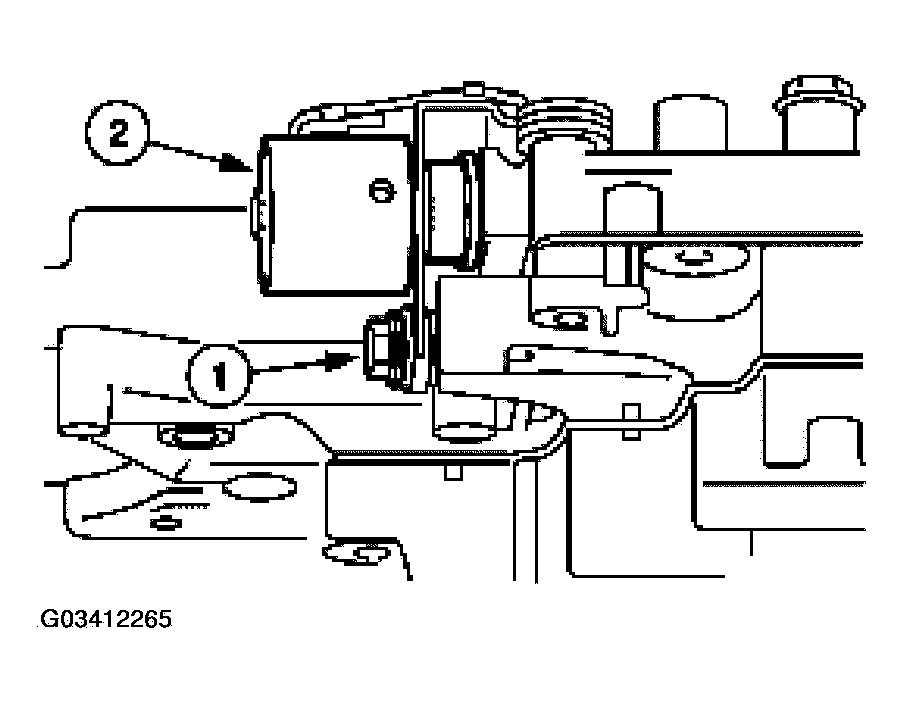

      Fig 1: Removing Solenoid From Valve Body
      G03412265Courtesy of FORD MOTOR CO.
  3. Remove the solenoids.
    1. Remove the bolts.
    2. Remove the solenoids from the valve body.

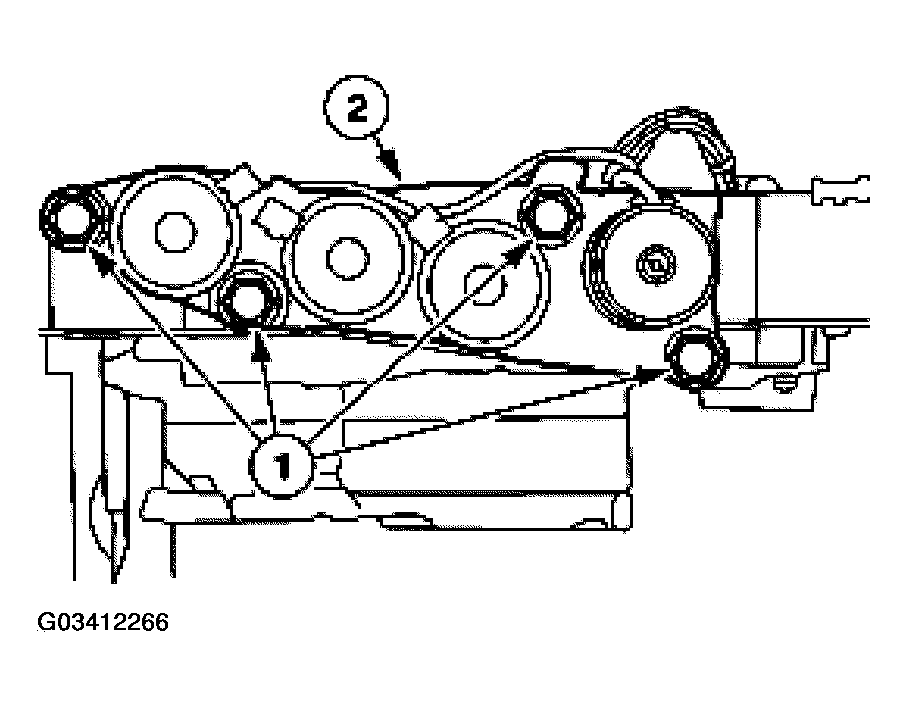

      Fig 2: Removing Bolts
      G03412266Courtesy of FORD MOTOR CO.
  4. Remove the solenoid harness.
    1. Remove the bolts.
    2. Remove the harness.

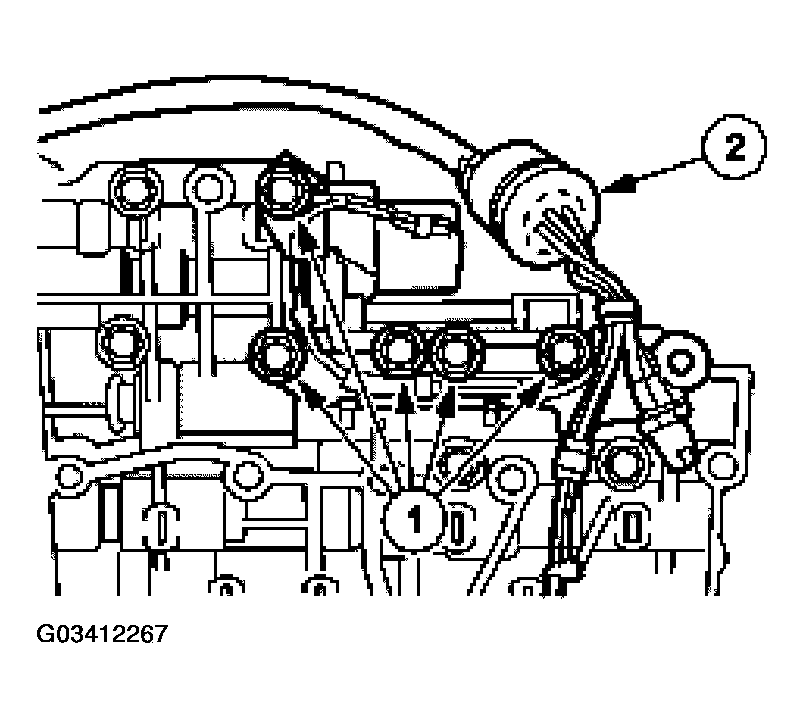

      Fig 3: Removing Solenoid Harness
      G03412267Courtesy of FORD MOTOR CO.
  5. Remove and discard the solenoid O-rings.
    Fig 4: Removing And Discarding Solenoid O-Rings
    G03412268Courtesy of FORD MOTOR CO.
