Output Shaft Speed (OSS) Sensor: Installation

  1. Install the output shaft sensor.
    1. Install the sensor.
    2. Install the bolt.

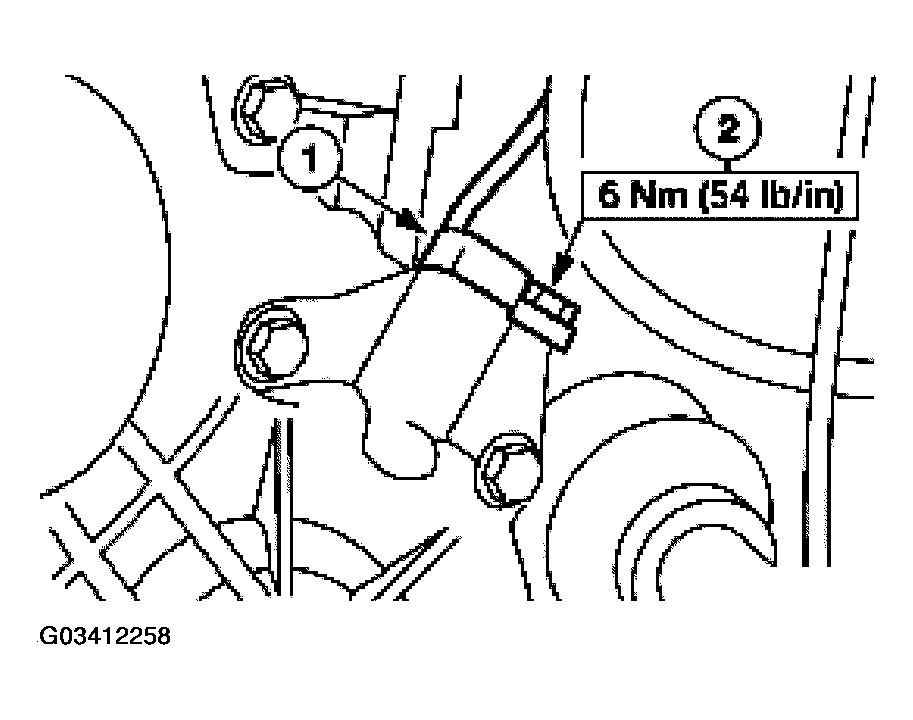

      Fig 1: Installing Output Shaft Sensor
      G03412258Courtesy of FORD MOTOR CO.
  2. Install the splash shield.
    1. Install the splash shield.
    2. Install the bolts.

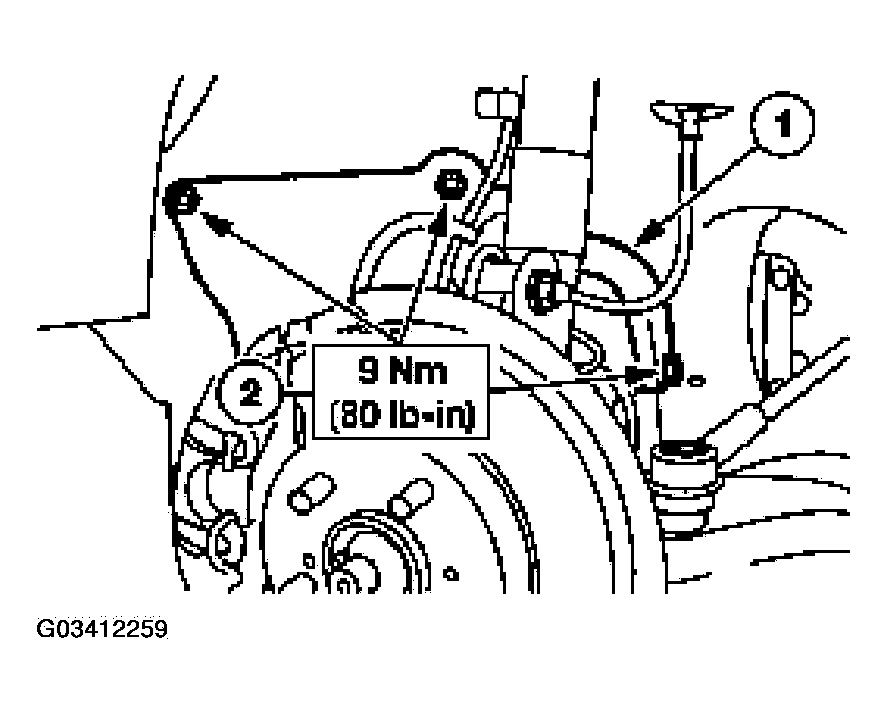

      Fig 2: Installing Bolts
      G03412259Courtesy of FORD MOTOR CO.
  3. Install the splash shield bolt.

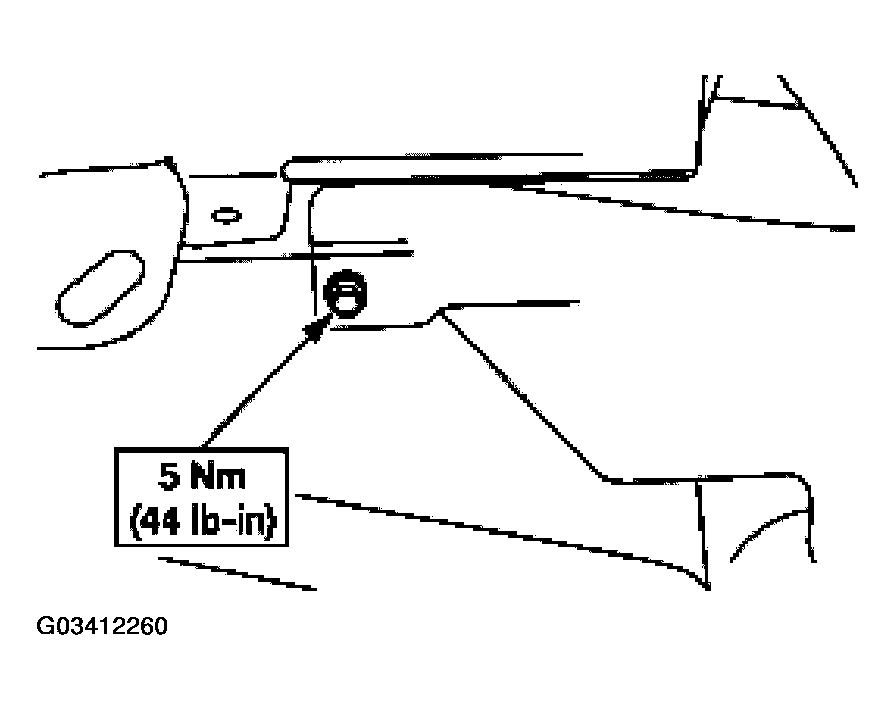

    Fig 3: Installing Splash Shield Bolt
    G03412260Courtesy of FORD MOTOR CO.
  4. Install the LH wheel and tire assembly.

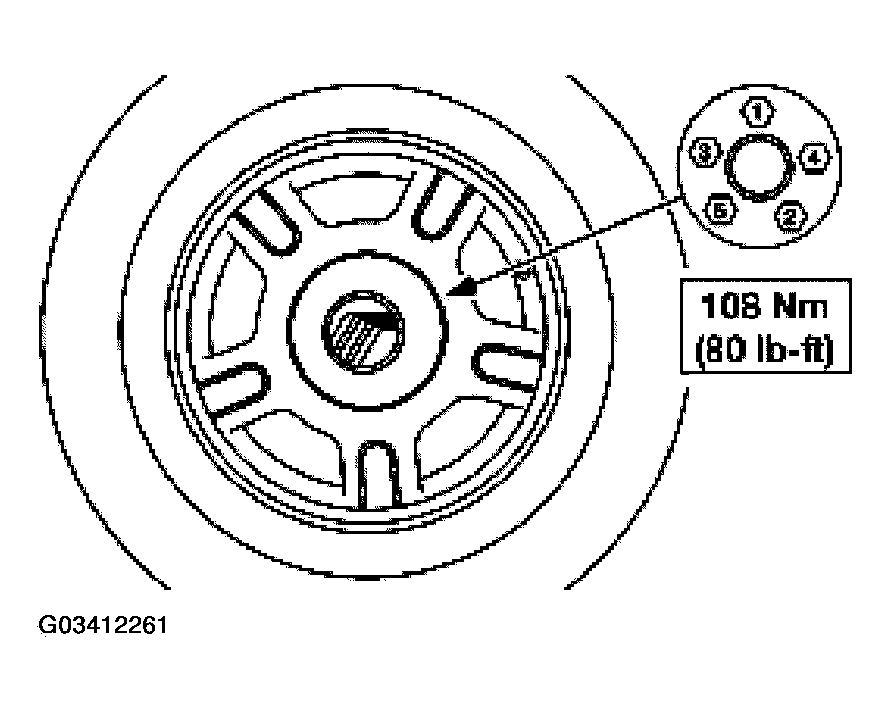

    Fig 4: Installing LH Wheel And Tire Assembly
    G03412261Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
  6. Connect the output shaft speed sensor electrical connector.

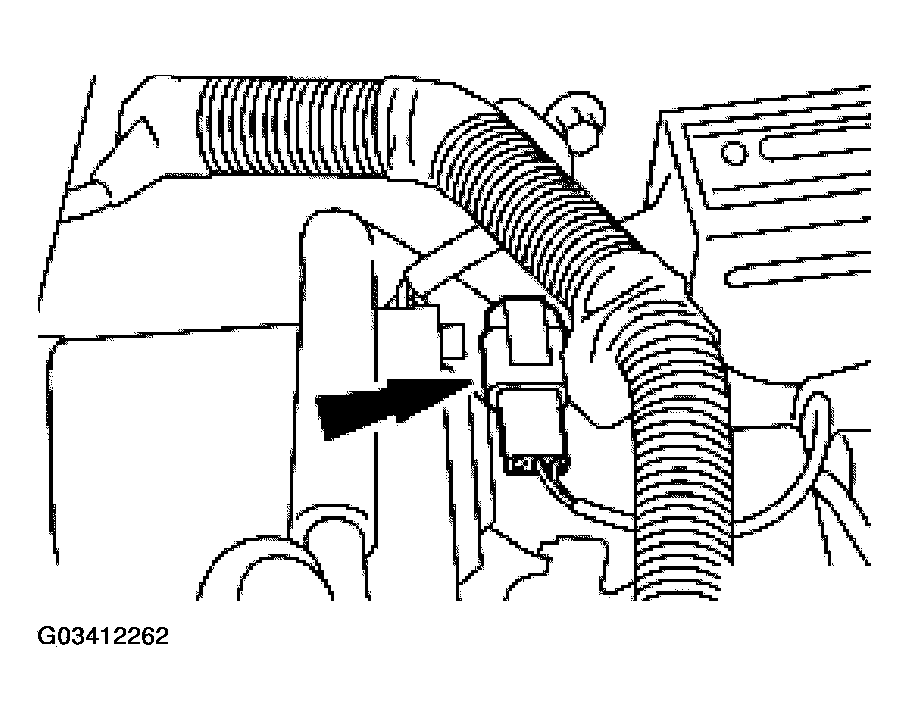

    Fig 5: Connecting Output Shaft Speed Sensor Electrical Connector
    G03412262Courtesy of FORD MOTOR CO.
  7. Install the air cleaner assembly.
    8. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
  8. Connect the battery ground cable.
