Special Tool(s)

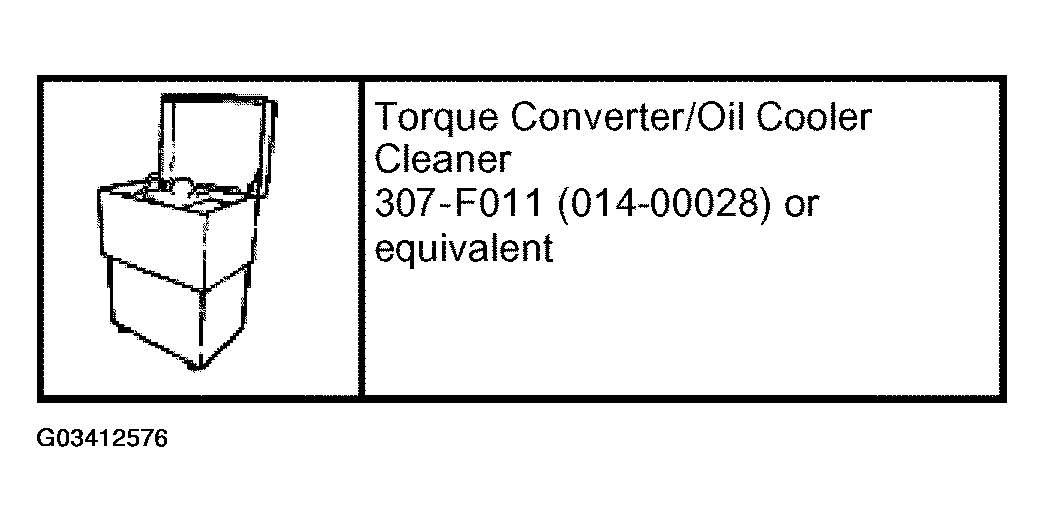

Fig 1: Identifying Special Tool(s)
G03412576Courtesy of FORD MOTOR CO.
  1. Using the special tool, clean and flush the torque converter.
  2. After flushing, drain the remainder of the solvent.
  3. Add 1.9 liters (2 qts.) of Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON® to the torque converter and agitate by hand.
  4. Thoroughly drain the torque converter
