Low/Reverse Clutch Piston Assembly: Assembly

  1. Install the low reverse clutch piston seals.
    • Coat the seals with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON®.

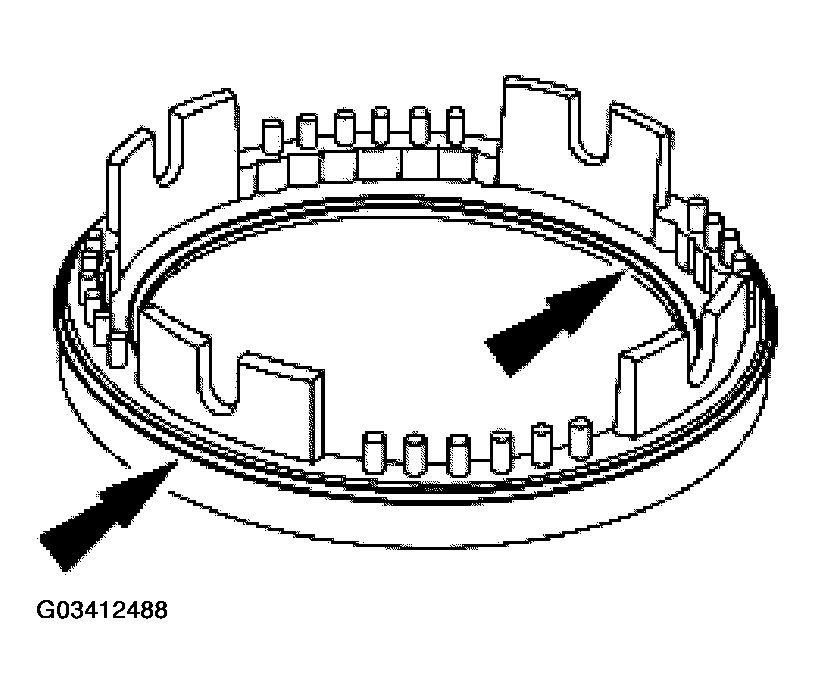

      Fig 1: Installing Low Reverse Clutch Piston Seals
      G03412488Courtesy of FORD MOTOR CO.
  2. Install the low reverse clutch piston.
    • Align the tab on the low reverse clutch piston retainer between the tabs on the low reverse clutch piston.

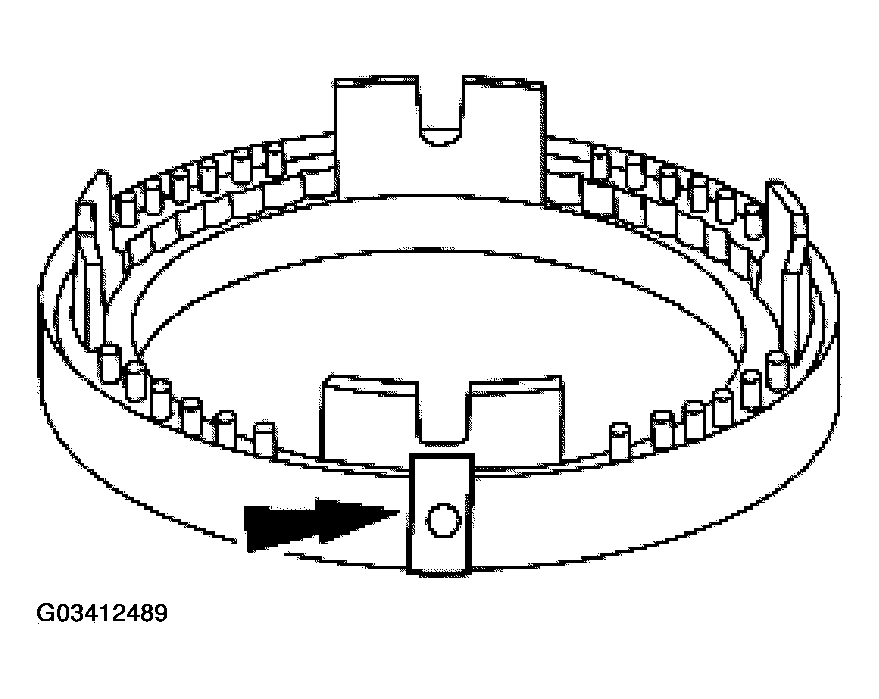

      Fig 2: Installing Low Reverse Clutch Piston
      G03412489Courtesy of FORD MOTOR CO.
