Pinpoint Test F: Output Shaft Speed Sensor

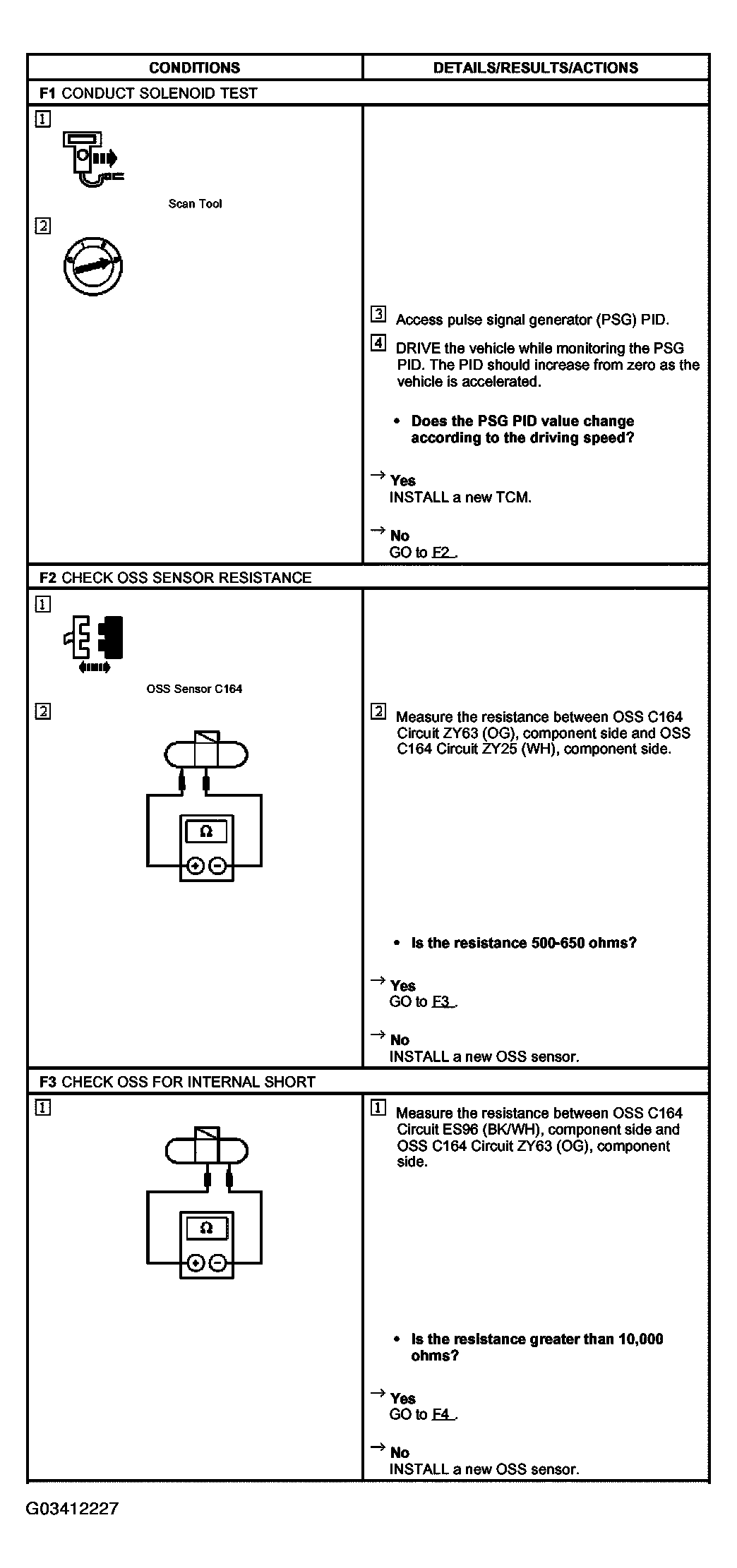

Fig 1: Identifying Pinpoint Test F: Output Shaft Speed Sensor (1 Of 2)
G03412227Courtesy of FORD MOTOR CO.

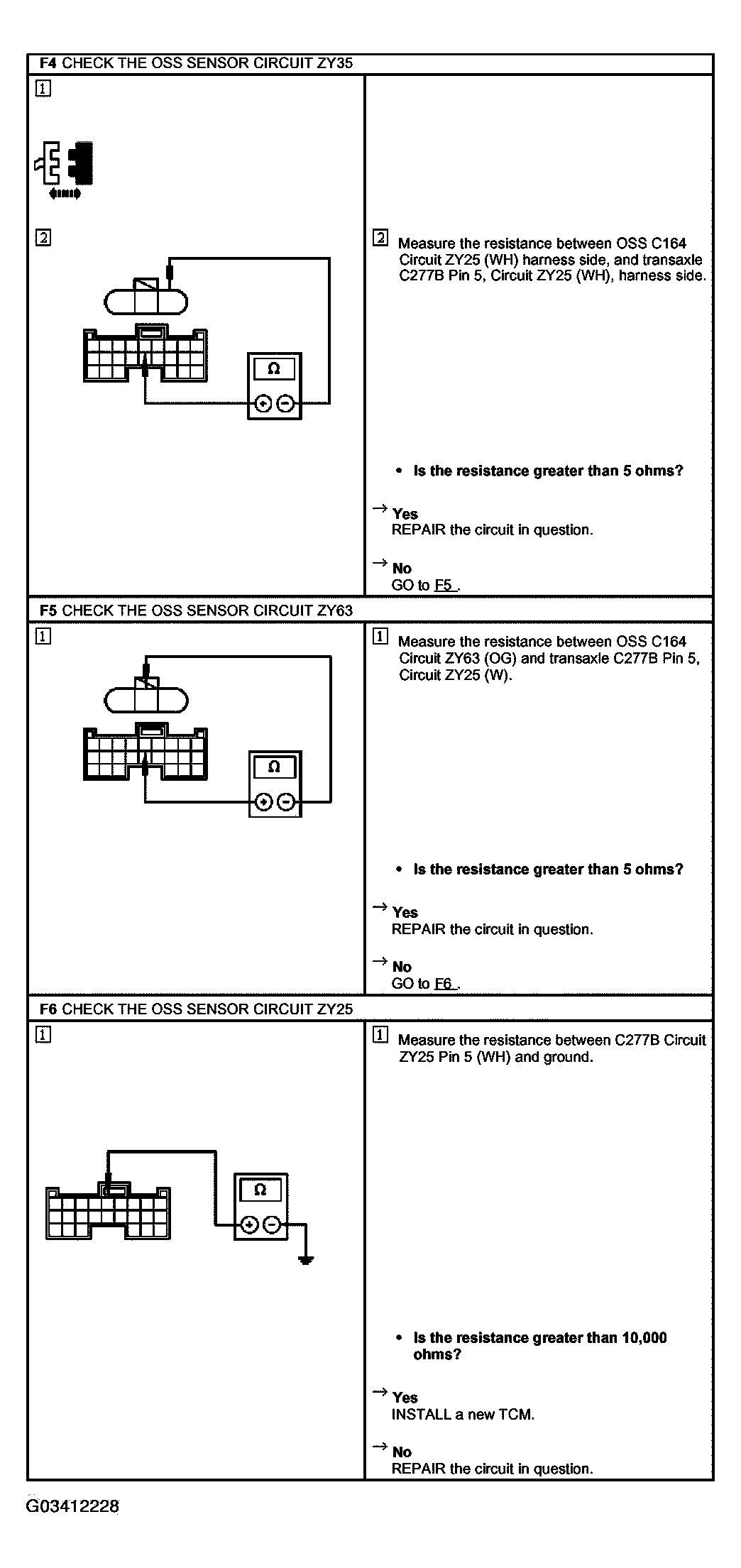

Fig 2: Identifying Pinpoint Test F: Output Shaft Speed Sensor (2 Of 2)
G03412228Courtesy of FORD MOTOR CO.
