Pinpoint Test C: Excessive Steering Wheel Play

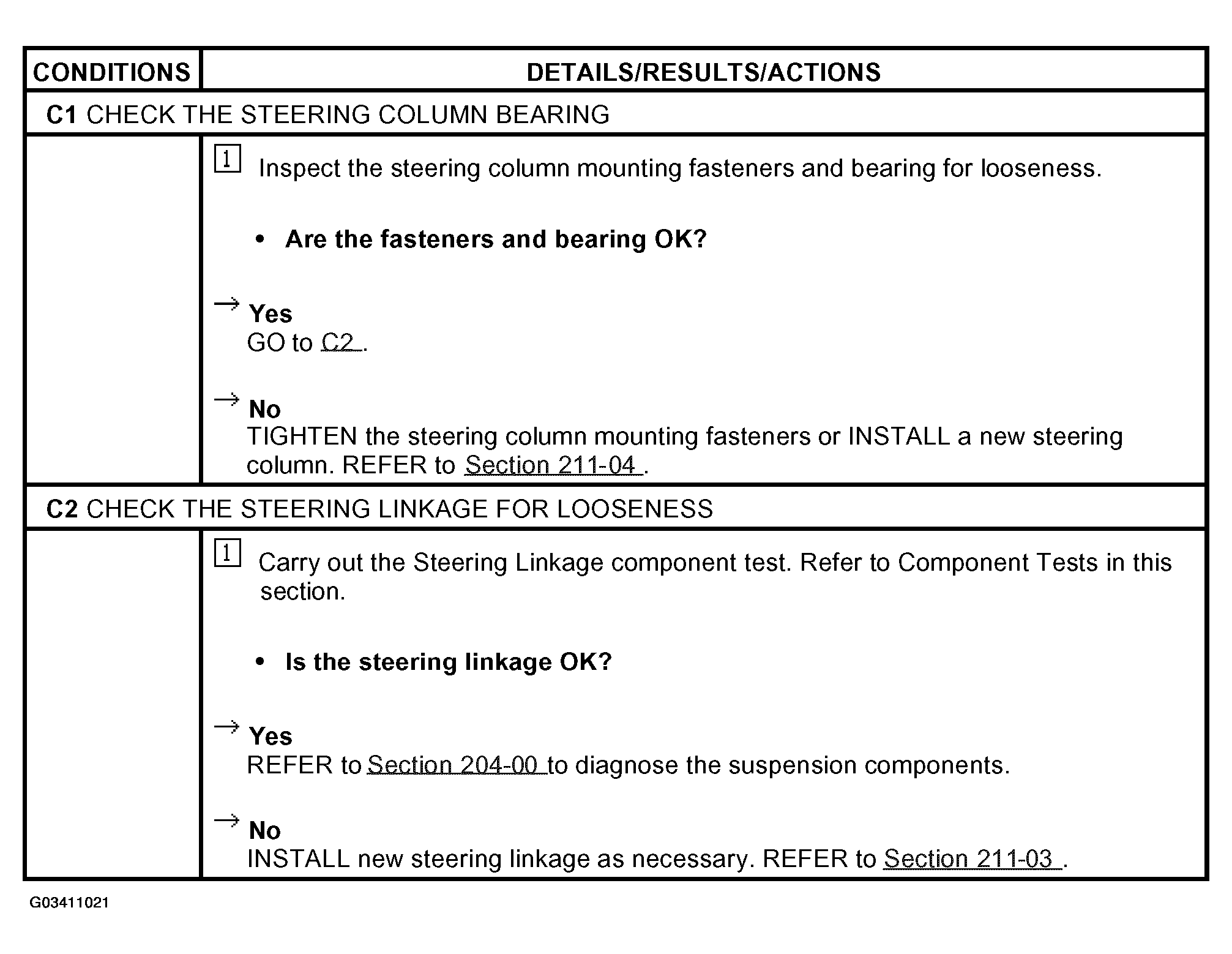

Fig 1: Pinpoint Test C: Excessive Steering Wheel Play

G03411021

Courtesy of FORD MOTOR CO.
