Removal And Installation: Pump: Installation

    NOTE: Install a new teflon seal on the power steering pressure hose fittings before connecting the hoses.
    NOTE: Make sure that the threads are clean and free of debris before connecting the hoses.

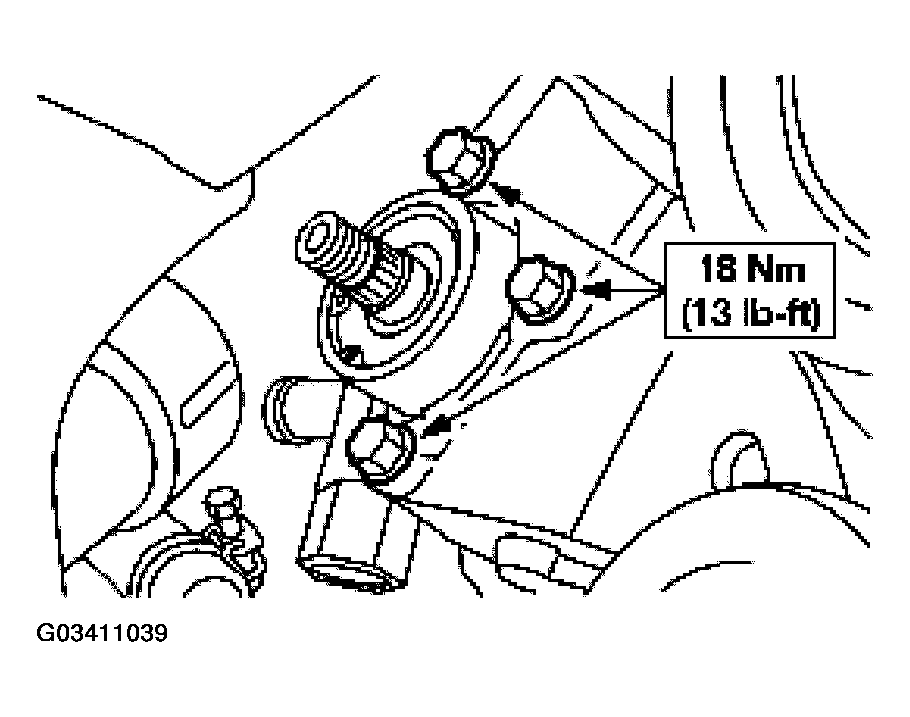

    Fig 1: Bolt Torque Specification (1 Of 3)
    G03411039Courtesy of FORD MOTOR CO.

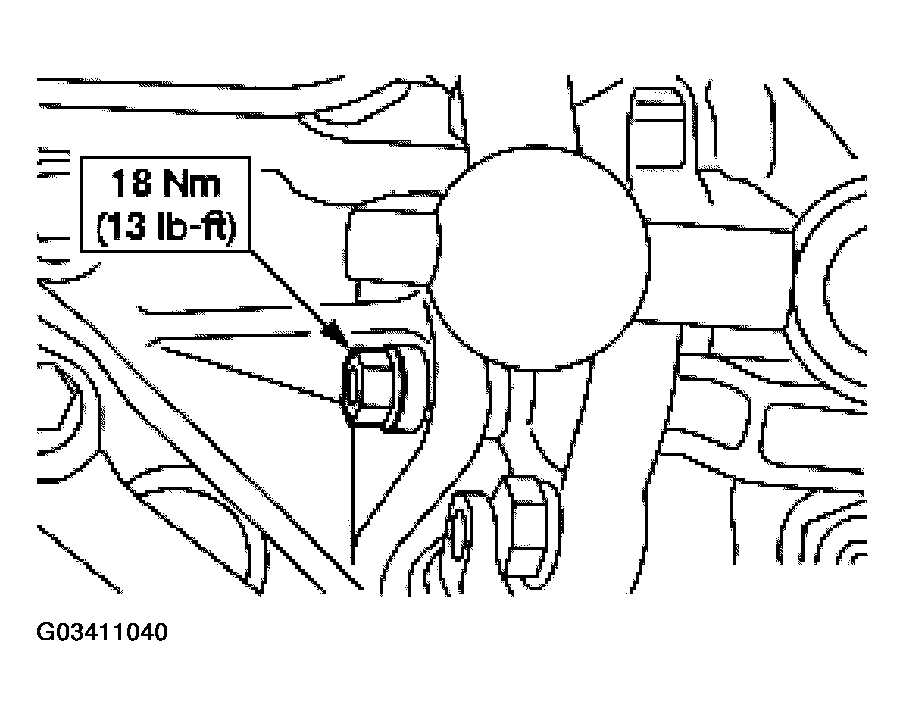

    Fig 2: Bolt Torque Specification (2 Of 3)
    G03411040Courtesy of FORD MOTOR CO.

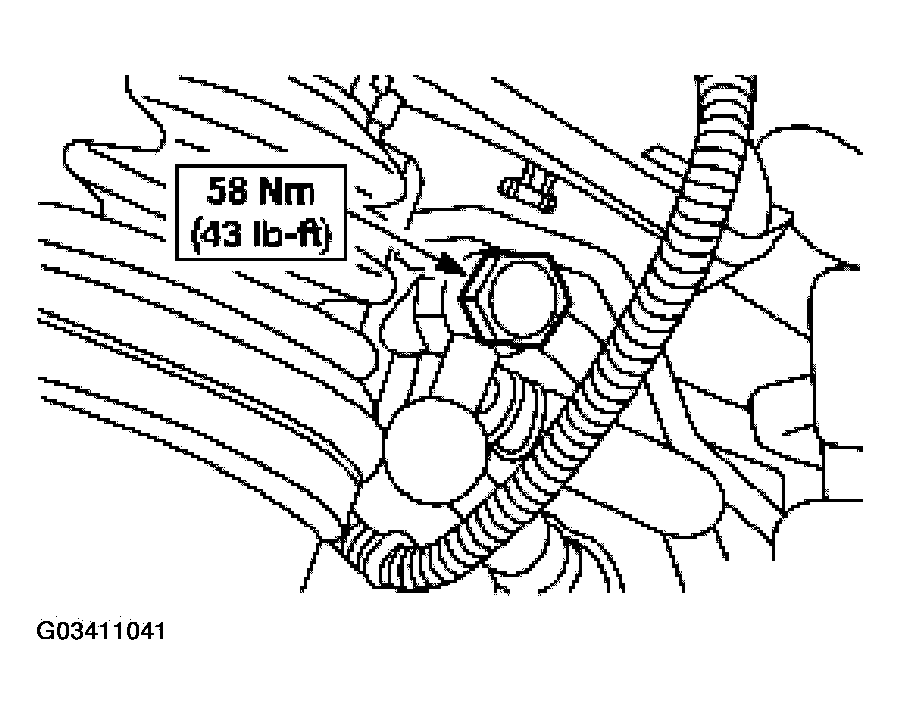

    Fig 3: Bolt Torque Specification (3 Of 3)
    G03411041Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
