Disassembly And Assembly: Pump: Disassembly

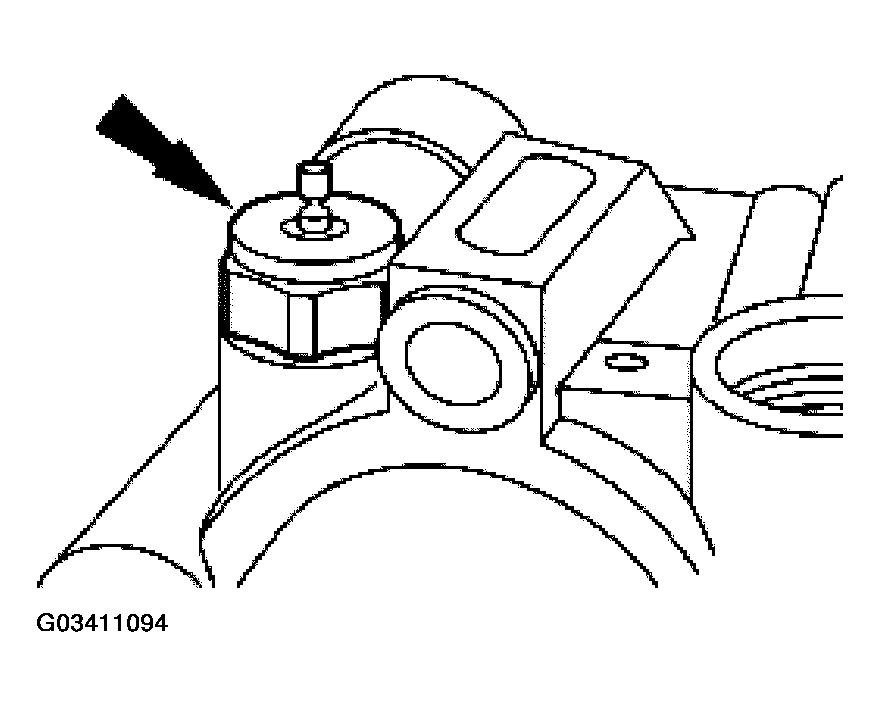

Remove the power steering pump control valve and the power steering pump control valve spring nut.

Fig 1: Removing Power Steering Pump Control Valve And Spring Nut
Courtesy of FORD MOTOR CO.
Remove the power steering pump control valve and the power steering pump control valve spring.

Fig 2: Removing Power Steering Pump Control Valve And Spring
Courtesy of FORD MOTOR CO.

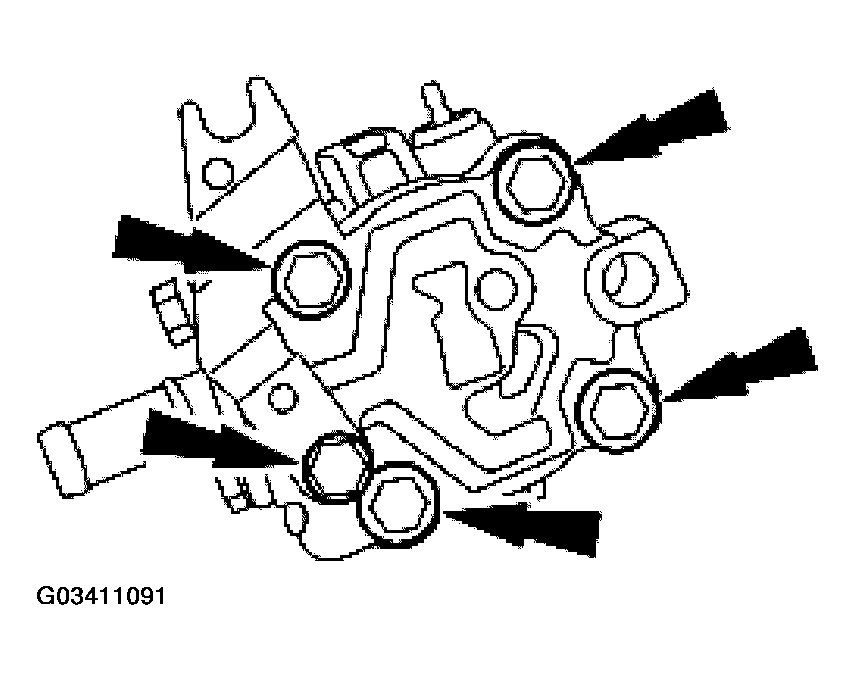

Remove the rear power steering pump housing bolts.

Fig 3: Removing Rear Power Steering Pump Housing Bolts
Courtesy of FORD MOTOR CO.
Separate the power steering pump housing from the power steering pump body.

Fig 4: Identifying Power Steering Pump Housing From Power Steering Pump Body
Courtesy of FORD MOTOR CO.

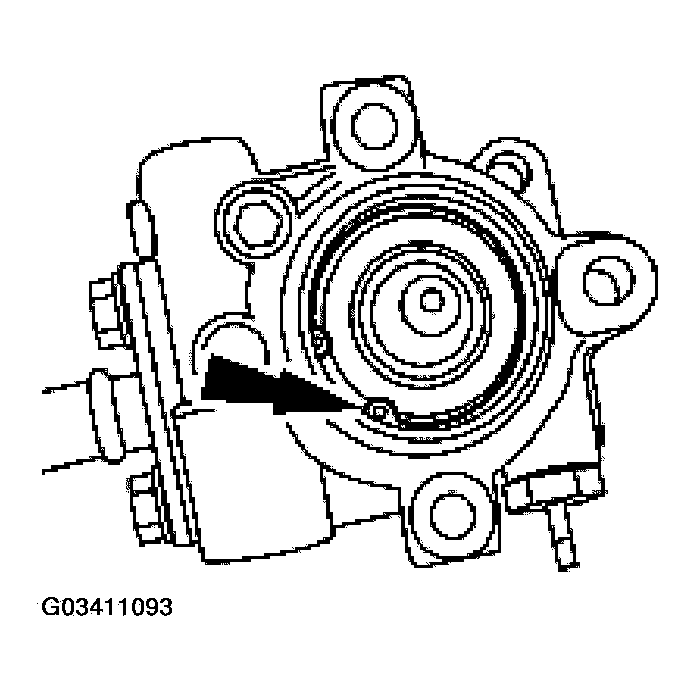

Remove the snap ring.

Fig 5: Removing Snap Ring
Courtesy of FORD MOTOR CO.

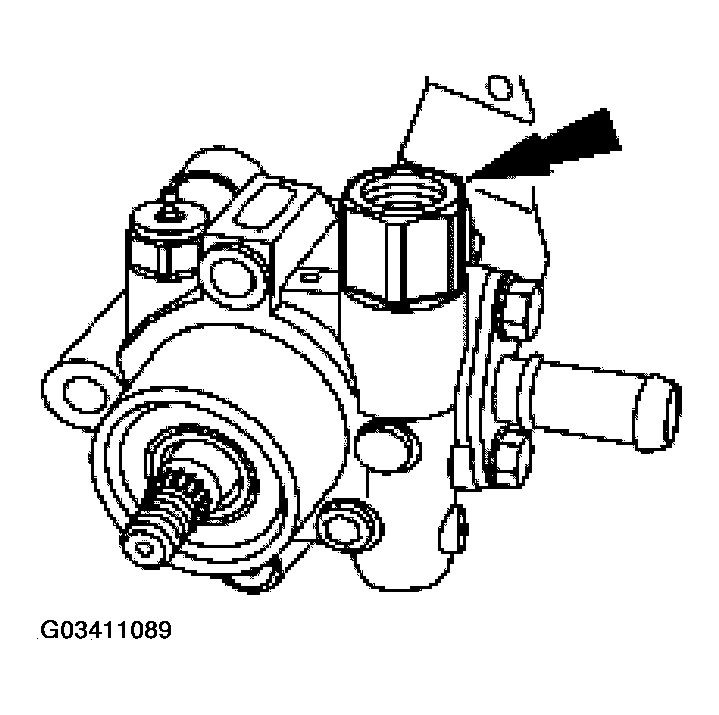

Remove the power steering pump pressure switch.

Fig 6: Removing Power Steering Pump Pressure Switch
Courtesy of FORD MOTOR CO.

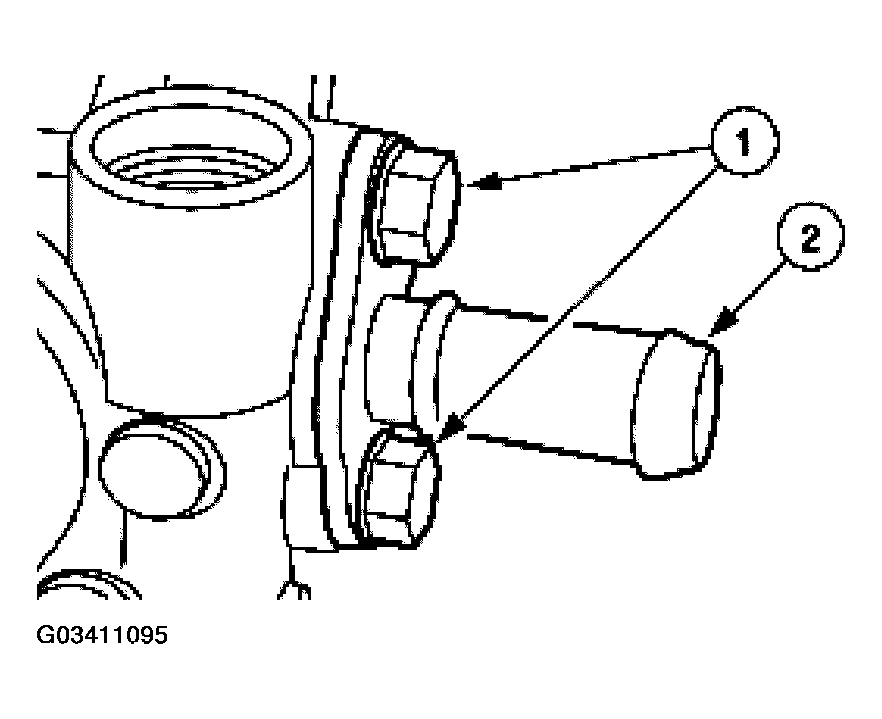

Remove the power steering pump return hose fitting.
1. Remove the bolts.
2. Remove the fitting.

  Fig 7: Removing Power Steering Pump Return Hose Fitting
  Courtesy of FORD MOTOR CO.
Using the suitable tool, remove the bearing from the power steering pump shaft.

Fig 8: Removing Bearing From Power Steering Pump Shaft Using Suitable Tool
Courtesy of FORD MOTOR CO.

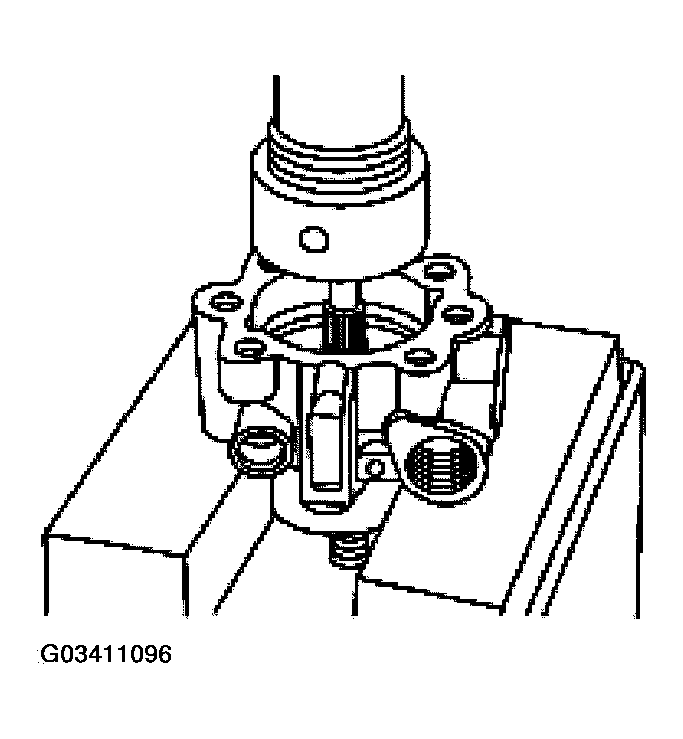

Using the special tool, remove the grease seal.

Fig 9: Removing Grease Seal Using Special Tool
Courtesy of FORD MOTOR CO.
Remove the cam ring and the power steering pump rotor from the rear power steering pump housing.

Fig 10: Removing Cam Ring And Power Steering Pump Rotor From Rear Power Steering Pump Housing
Courtesy of FORD MOTOR CO.

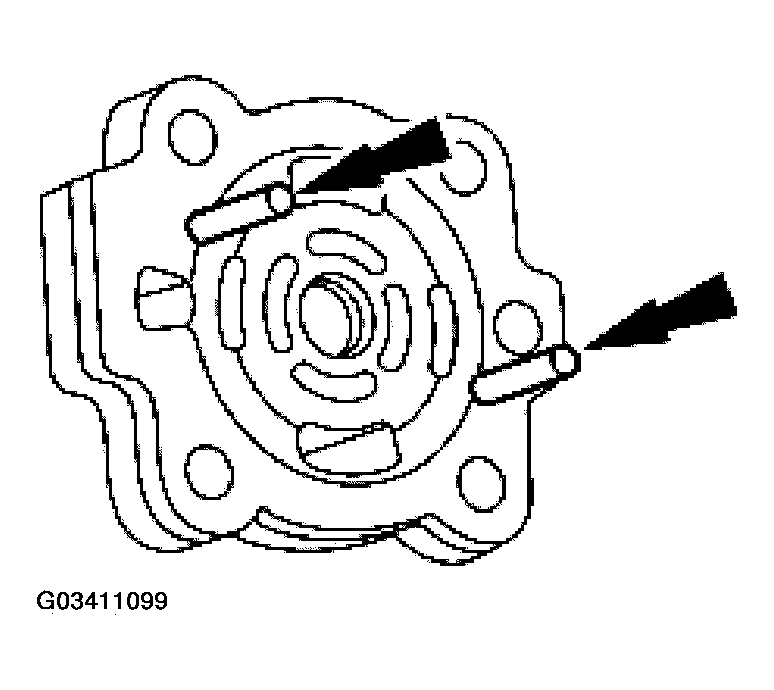

Remove the guide pins.

Fig 11: Removing Guide Pins
Courtesy of FORD MOTOR CO.
Remove the power steering pump rotor from the power steering pump cam ring.

Fig 12: Removing Power Steering Pump Rotor From Power Steering Pump Cam Ring
Courtesy of FORD MOTOR CO.
Remove the power steering pump rotor vanes.

Fig 13: Removing Power Steering Pump Rotor Vanes
Courtesy of FORD MOTOR CO.
