Disassembly And Assembly: Pump: Assembly

NOTE: Make sure the punch mark on the power steering pump rotor is toward the front of the power steering pump on assembly.
  1. Place the power steering pump rotor into the power steering pump cam ring.
    Fig 1: Placing Power Steering Pump Rotor Into Power Steering Pump Cam Ring
    G03411102Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure the rounded ends of the vanes are facing towards the outside of the power steering pump housing.
    Fig 2: Installing Vanes In Power Steering Pump Rotor
    G03411103Courtesy of FORD MOTOR CO.
  2. Install the vanes in the power steering pump rotor.
  3. Install the guide pins.

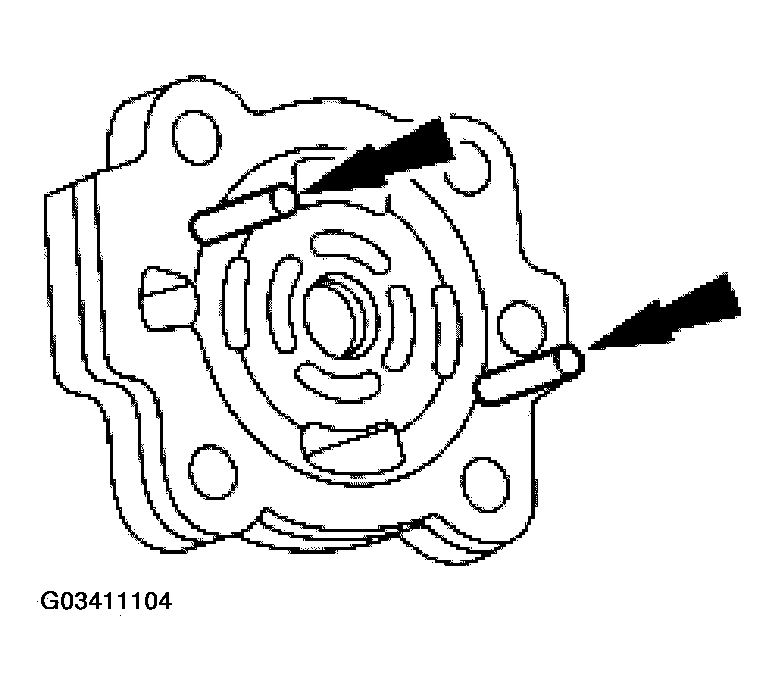

    Fig 3: Installing Guide Pins
    G03411104Courtesy of FORD MOTOR CO.
  4. Position the cam ring and the power steering pump rotor on the rear power steering pump housing between the guide pins.
    Fig 4: Identifying Position Of Cam Ring And Power Steering Pump Rotor
    G03411105Courtesy of FORD MOTOR CO.
  5. Using the special tool, install the power steering pump bearing.
    Fig 5: Installing Power Steering Pump Bearing Using Special Tool
    G03411106Courtesy of FORD MOTOR CO.
  6. Using the special tools, install the pump seal.
    Fig 6: Installing Pump Seal Using Special Tools
    G03411107Courtesy of FORD MOTOR CO.
  7. Using the special tools, install the power steering pump rotor shaft into the front power steering pump housing.
    Fig 7: Installing Power Steering Pump Rotor Shaft Into Front Power Steering Pump Housing
    G03411108Courtesy of FORD MOTOR CO.
  8. Install the snap ring.

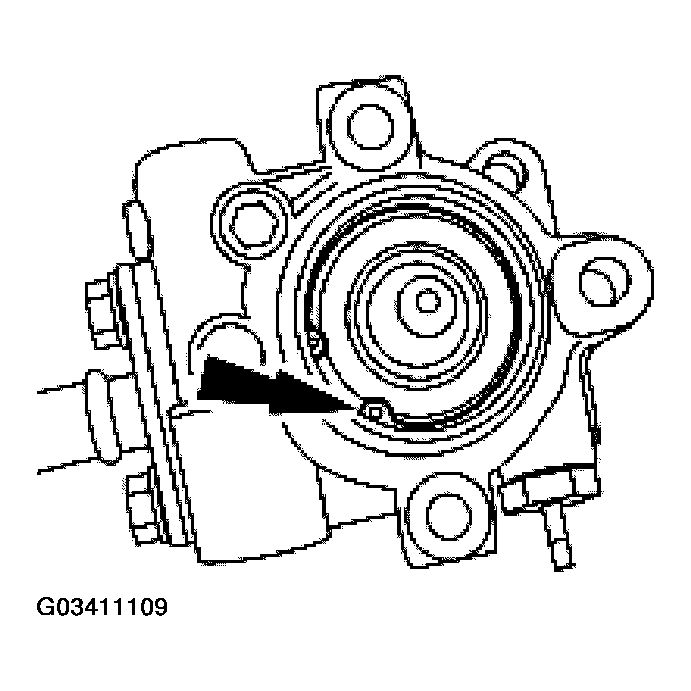

    Fig 8: Installing Snap Ring
    G03411109Courtesy of FORD MOTOR CO.
  9. Install the power steering pump pressure switch.

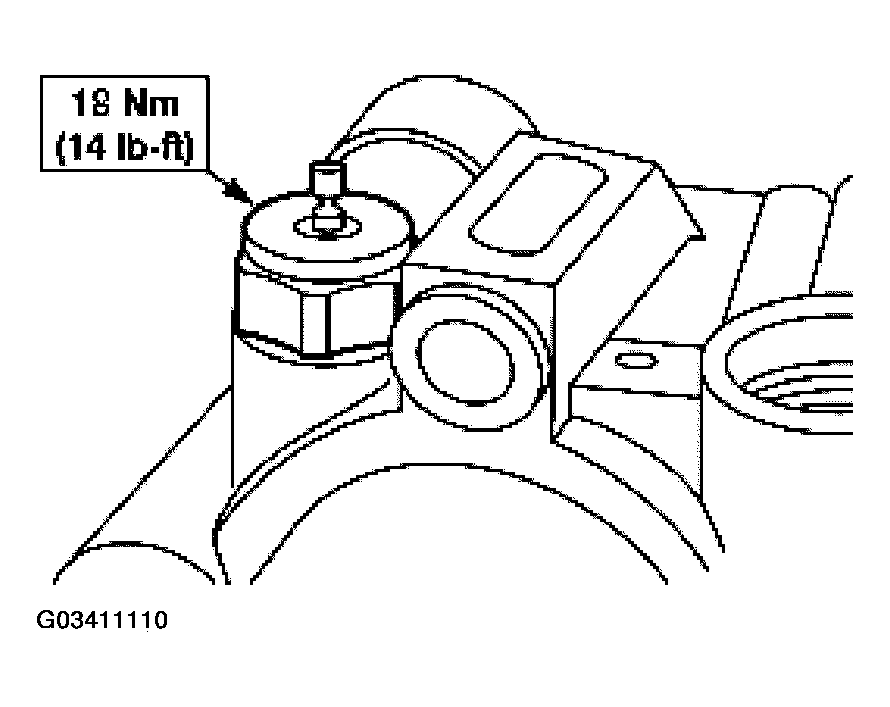

    Fig 9: Installing Power Steering Pump Pressure Switch
    G03411110Courtesy of FORD MOTOR CO.
  10. Install the power steering pump return hose fitting.

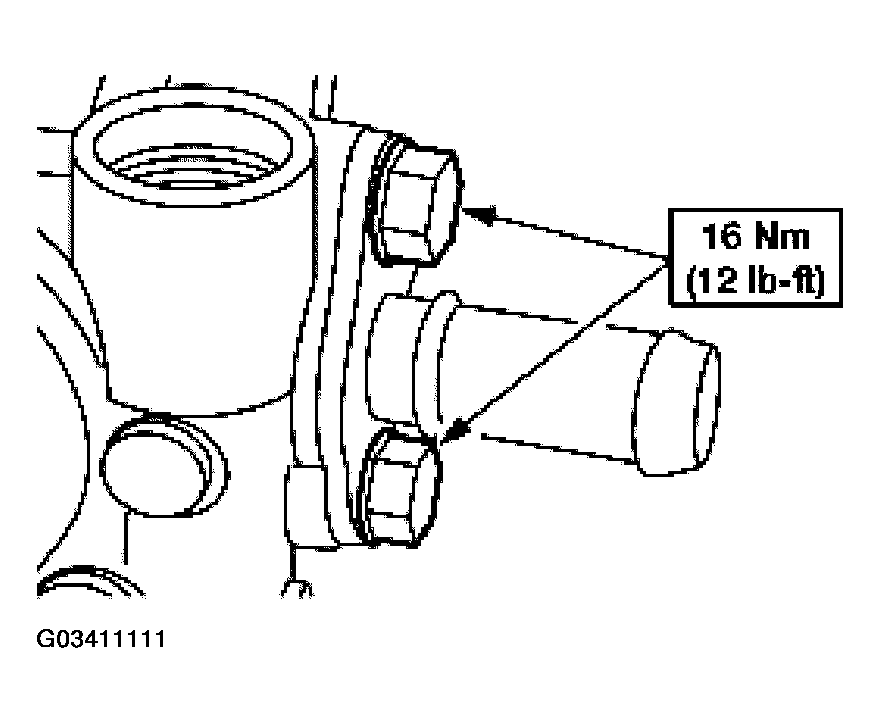

    Fig 10: Installing Power Steering Pump Return Hose Fitting
    G03411111Courtesy of FORD MOTOR CO.
  11. Install the rear power steering pump housing bolts.

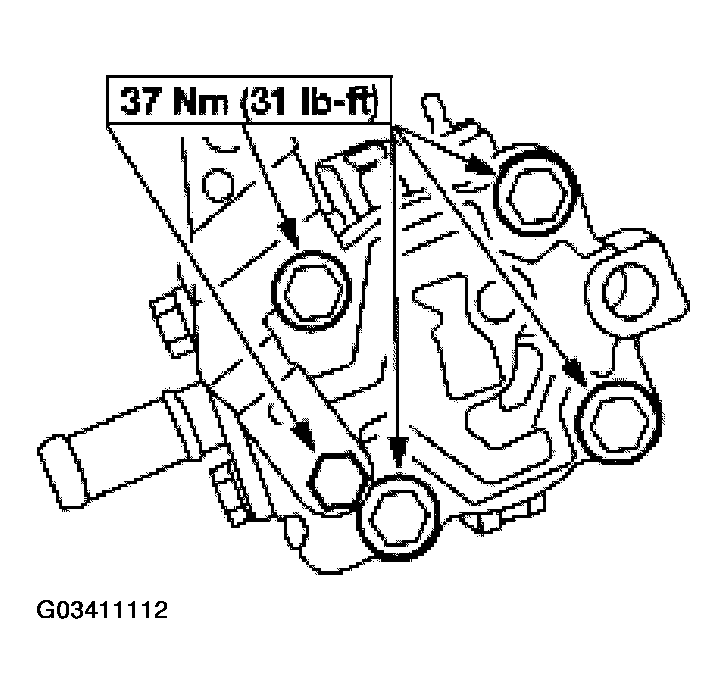

    Fig 11: Installing Rear Power Steering Pump Housing Bolts
    G03411112Courtesy of FORD MOTOR CO.
  12. Install the control spring and the control valve.
    Fig 12: Installing Control Spring And Control Valve
    G03411113Courtesy of FORD MOTOR CO.
  13. Install the power steering pump control valve and the power steering pump control valve spring nut.

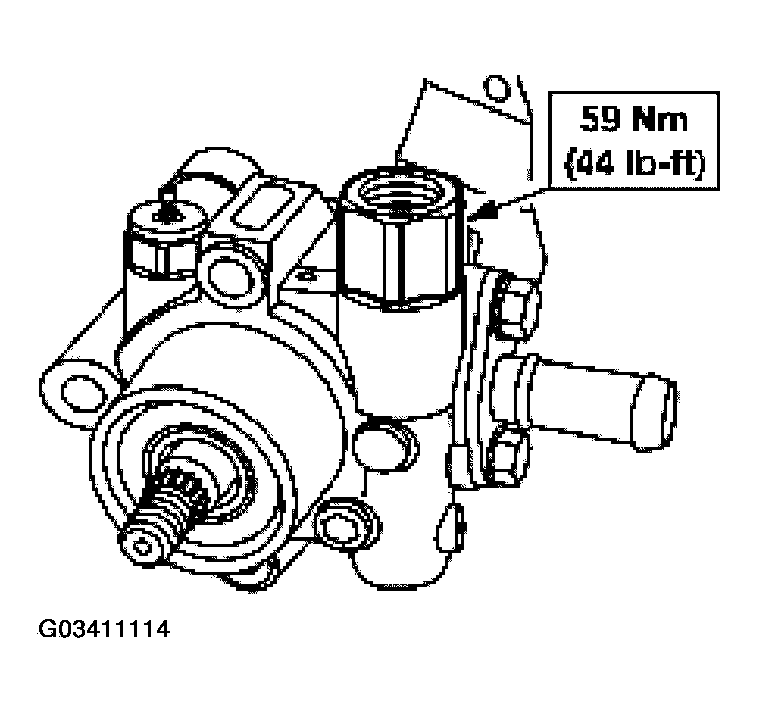

    Fig 13: Installing Power Steering Pump Control Valve And Power Steering Pump Control Valve Spring Nut
    G03411114Courtesy of FORD MOTOR CO.
