Fog Lamp: MKZ

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

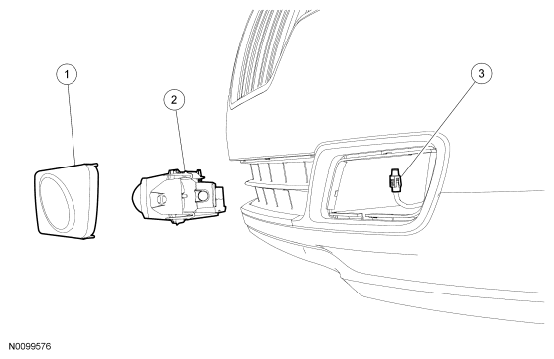

Fig 1: Identifying Fog Lamp Components - MKZ

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	17E811/17E810	Fog lamp bezel LH/RH
2	15K200	Fog lamp
3	-	Fog lamp electrical connector (part of 14290)
