Power Liftgate Chime Connector - C4186

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

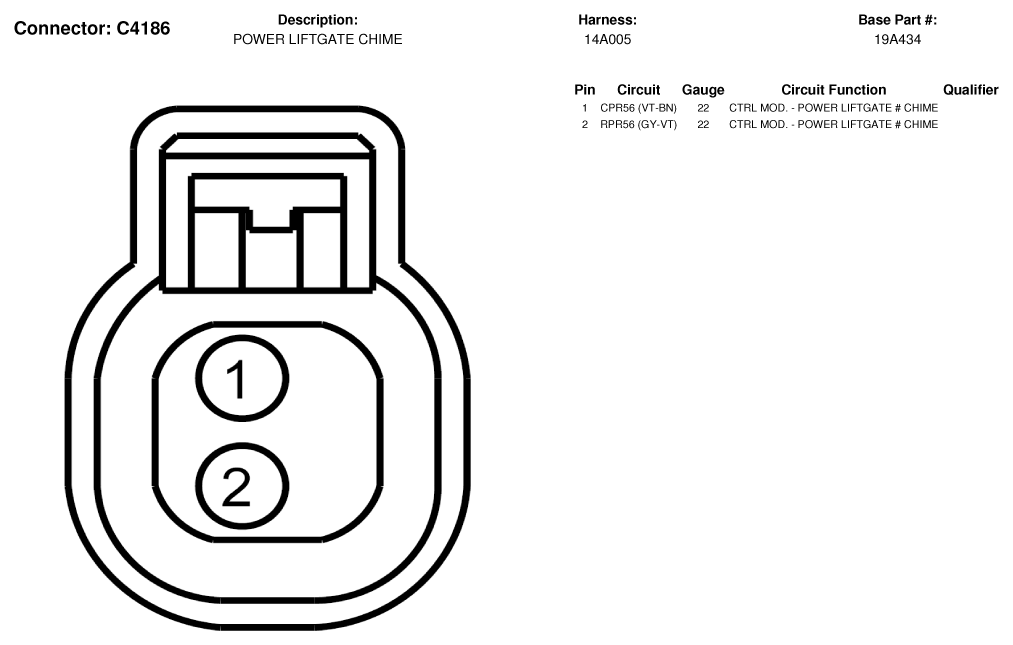

Fig 1: Power Liftgate Chime Connector End View (C4186)
G07336412Courtesy of FORD MOTOR CO.
