Front Brake Flexible Hose: Notes
WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

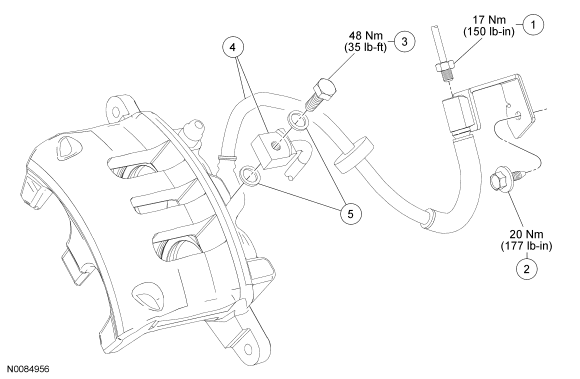

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake tube fitting (part of 2C296 LH/ 2263 RH) |
| 2 | W704901 | Brake flexible hose bracket bolt |
| 3 | N807052 | Brake caliper flow bolt |
| 4 | 2078 | Brake flexible hoses |
| 5 | 388949 | Copper washers |
