Fuel Pump Driver Module Connector - C4033

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

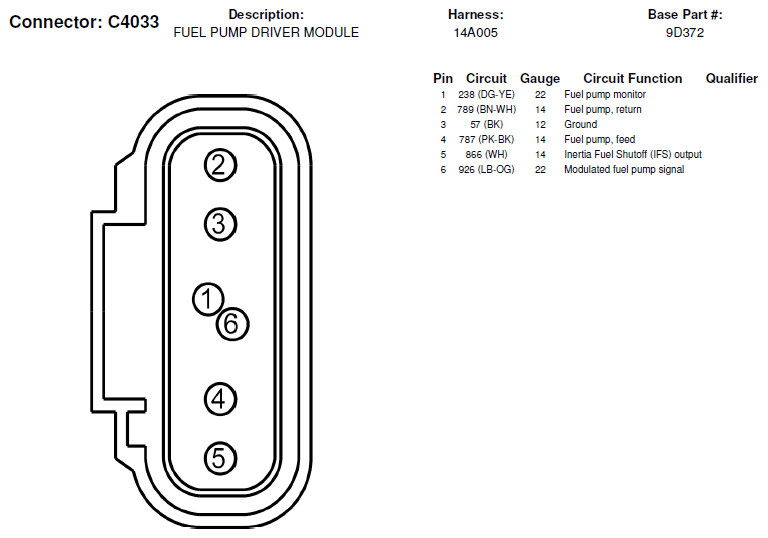

Fig 1: Fuel Pump Driver Module Connector End View (C4033)
G06414388Courtesy of FORD MOTOR CO.
