Steering Column Shaft: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

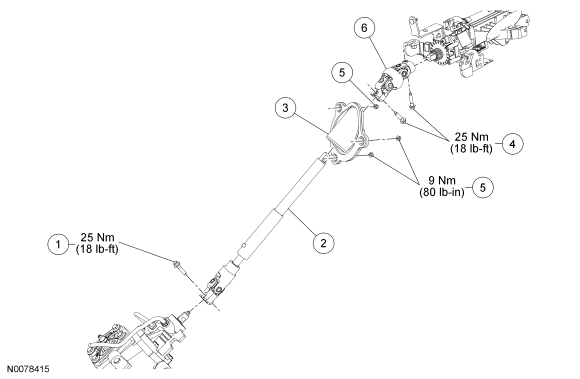

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N808684 |
Steering column shaft-to-steering gear bolt |
| 2 |
3B676 |
Steering column shaft |
| 3 |
3D677 |
Steering column shaft dash seal |
| 4 |
N808684 |
Steering column coupling bolts (2 required) |
| 5 |
W705460 |
Steering column shaft dash seal nuts (3 required) |
| 6 |
3E751 |
Steering column coupling |

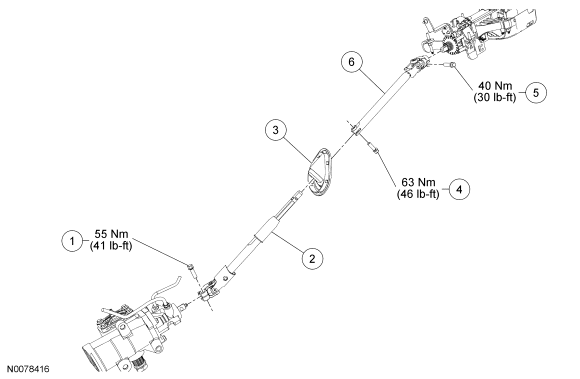

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N803942 |
Steering column shaft-to-steering gear bolt |
| 2 |
3C662 |
Steering column shaft |
| 3 |
3D677 |
Steering column shaft dash seal |
| 4 |
N803942 |
Upper steering column shaft-to-lower steering column shaft bolt |
| 5 |
N803942 |
Upper steering column shaft-to-steering column bolt |
| 6 |
9E751 |
Upper steering column shaft |
