Seat-Cushion, Third Row Bench: Disassembly

Remove the seat cushion. For additional information, refer to SEAT-CUSHION, THIRD ROW BENCH .
Remove the seat cushion strikers.
1. Remove the bolts.
2. Remove the seat cushion strikers.

  Fig 1: Removing Seat Cushion Strikers
  Courtesy of FORD MOTOR CO.
Remove the seat cushion bumper.
1. Remove the screw.
2. Remove the seat cushion bumper.

  Fig 2: Removing Seat Cushion Bumper
  Courtesy of FORD MOTOR CO.

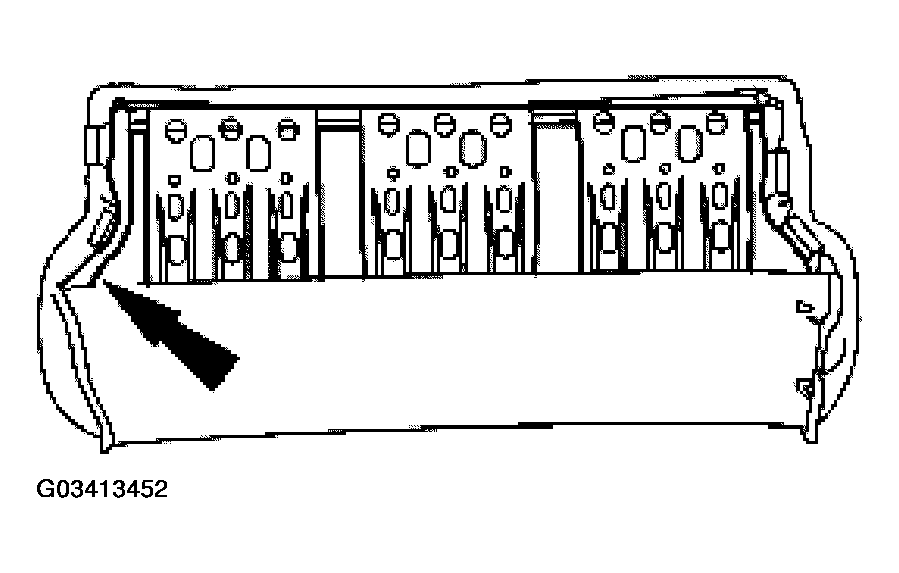

Unhook the J-clip.

Fig 3: Unhooking J-Clip
Courtesy of FORD MOTOR CO.

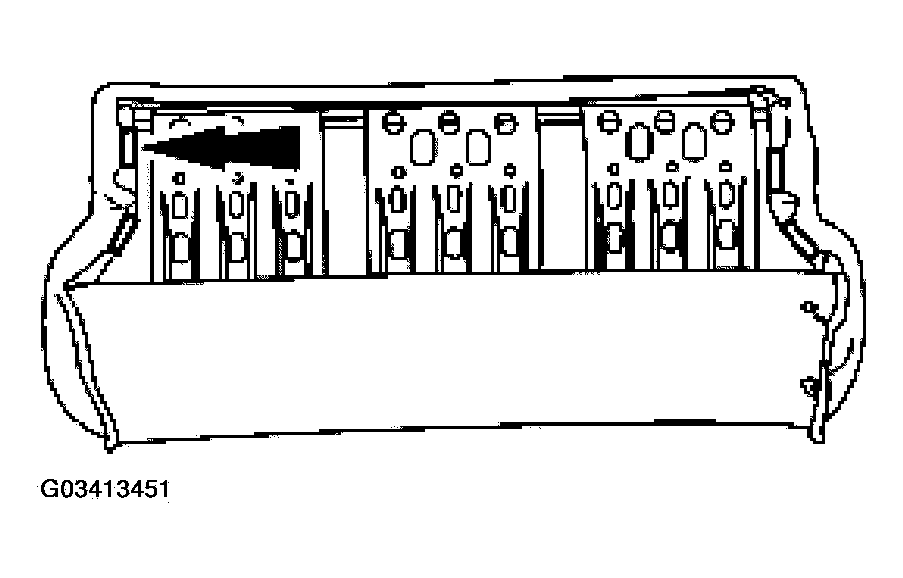

Unhook the side J-clips.

Fig 4: Unhooking Side J-Clips
Courtesy of FORD MOTOR CO.
Remove the seat cushion frame from the seat cushion and trim cover.

Fig 5: Removing Seat Cushion Frame From Seat Cushion And Trim Cover
Courtesy of FORD MOTOR CO.
On leather seats, position the trim cover to expose the hog rings.
On leather seats, remove the seat cushion trim cover.
- Remove the hog rings.
