Seat-Back, Front Bucket: Disassembly

  1. Remove the headrest.

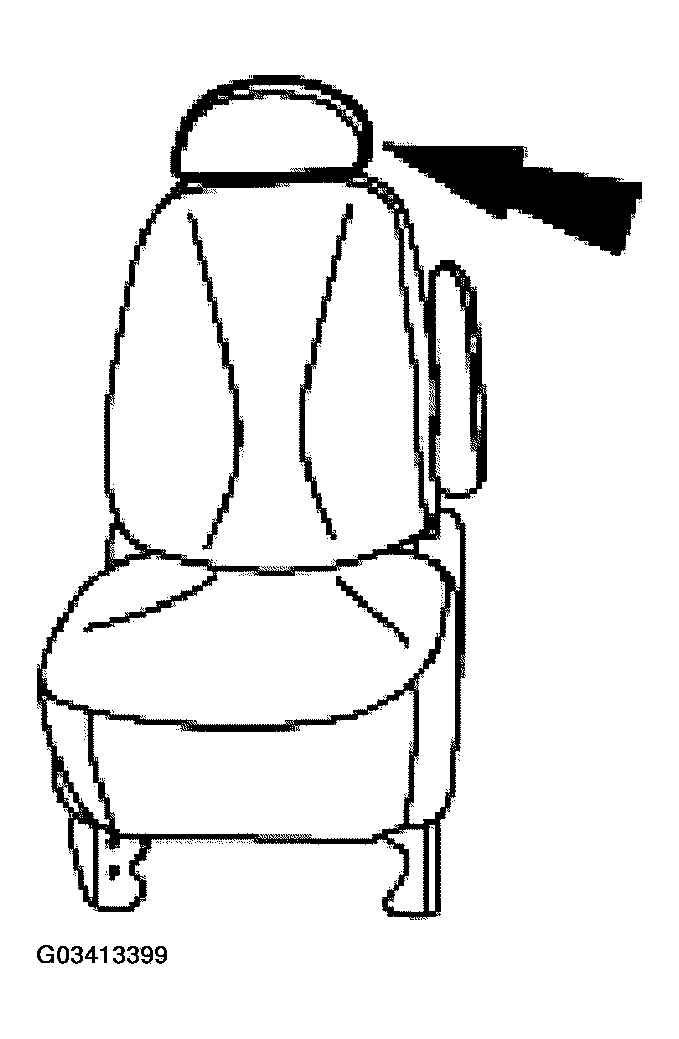

    Fig 1: Removing Headrest
    G03413399Courtesy of FORD MOTOR CO.
  2. Unhook the armrest trim cover.
    Fig 2: Unhooking Armrest Trim Cover
    G03413400Courtesy of FORD MOTOR CO.
  3. Remove the armrest.
    1. Remove the E-clip.
    2. Remove the armrest.
      Fig 3: Removing Armrest
      G03413401Courtesy of FORD MOTOR CO.
  4. Unhook the seat back trim cover J-clip.
    Fig 4: Unhooking Seat Back Trim Cover J-Clip
    G03413402Courtesy of FORD MOTOR CO.
    5. NOTE: Seat back trim cover and cushion removed for clarity.
  5. Remove the headrest guide sleeves.
    1. Squeeze the tabs together.
    2. Remove the headrest guide sleeves.
      Fig 5: Removing Headrest Guide Sleeves
      G03413403Courtesy of FORD MOTOR CO.
  6. Remove the seat back trim cover and foam.
    Fig 6: Removing Seat Back Trim Cover And Foam
    G03413404Courtesy of FORD MOTOR CO.
    7. NOTE: The lumbar support must be in the relaxed position before the handle is removed.
  7. Remove the lumbar support adjuster handle.
    1. Remove the screw.
    2. Remove the lumbar support adjuster handle.
      Fig 7: Removing Lumbar Support Adjuster Handle
      G03413405Courtesy of FORD MOTOR CO.
  8. Remove the inboard seat cushion trim cover.
    1. Remove the screws.
    2. Remove the inboard trim cover.
      Fig 8: Removing Inboard Trim Cover
      G03413406Courtesy of FORD MOTOR CO.
  9. Disconnect the lumbar support adjuster.
    1. Remove the screws.
    2. Disconnect the lumbar support adjuster.
      Fig 9: Disconnecting Lumbar Support Adjuster
      G03413407Courtesy of FORD MOTOR CO.
  10. Remove the cable ties.
    Fig 10: Removing Cable Ties
    G03413408Courtesy of FORD MOTOR CO.
  11. Remove the lumbar support.
    1. Release the four pin-type retainers.
    2. Remove the lumbar support.

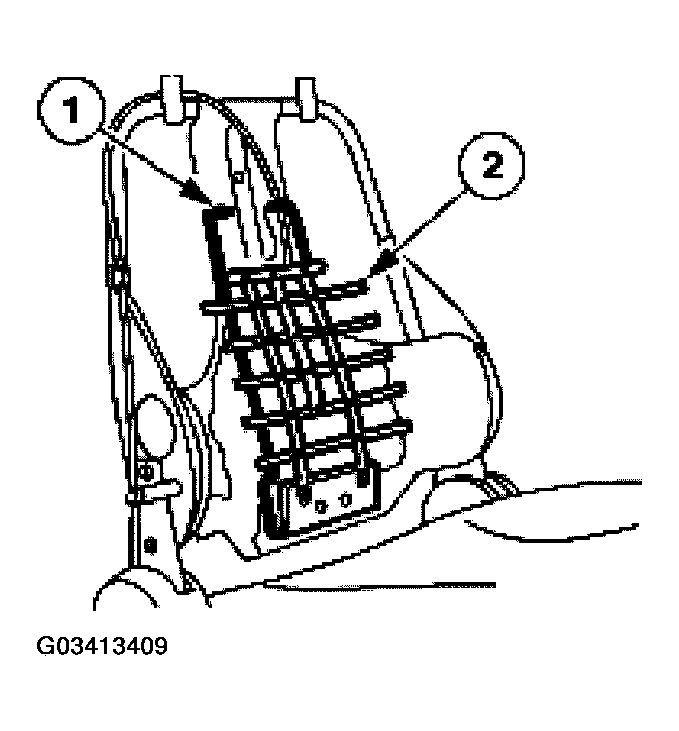

      Fig 11: Removing Lumbar Support
      G03413409Courtesy of FORD MOTOR CO.
  12. Remove the seat back frame.
    1. Remove the four bolts.
    2. Remove the seat back frame.
      Fig 12: Removing Seat Back Frame
      G03413410Courtesy of FORD MOTOR CO.
