Latch Remote Control - Sliding Door: Installation

    NOTE: Before installing the sliding door trim panel, adjust the sliding door rear latch cable. For additional information, refer to LATCH ADJUSTMENT - SLIDING DOOR CABLE ,

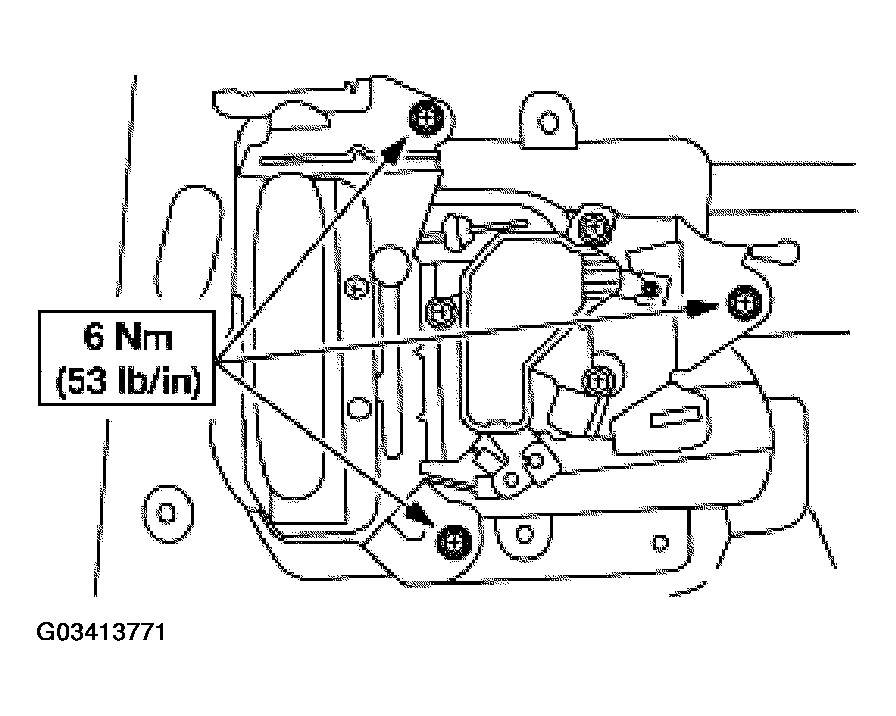

    Fig 1: Installing Sliding Door Latch Remote Control
    G03413771Courtesy of FORD MOTOR CO.

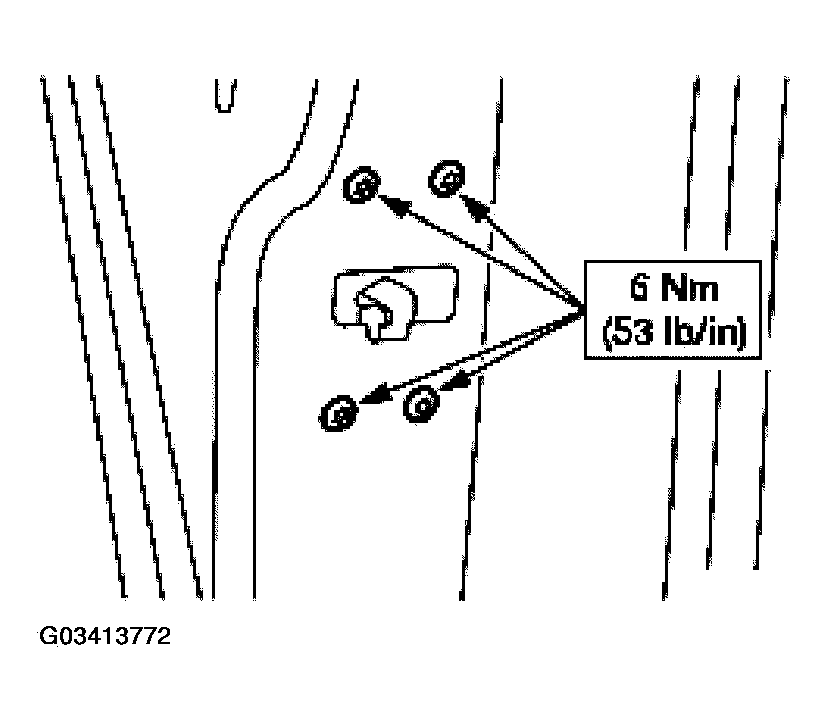

    Fig 2: Installing Sliding Door Front Latch Bolts
    G03413772Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
