Latch Remote Control - Liftgate: Removal

  1. Remove the liftgate trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the watershield.
    3. NOTE: Mark the position of the liftgate latch cable adjusting brackets before removing the bolts.
  3. Disconnect the liftgate latch cables.
    1. Remove the bolts.
    2. Remove the liftgate latch cable adjusting brackets from the latch remote control.
    3. Disconnect the liftgate latch cables from the latch remote control.

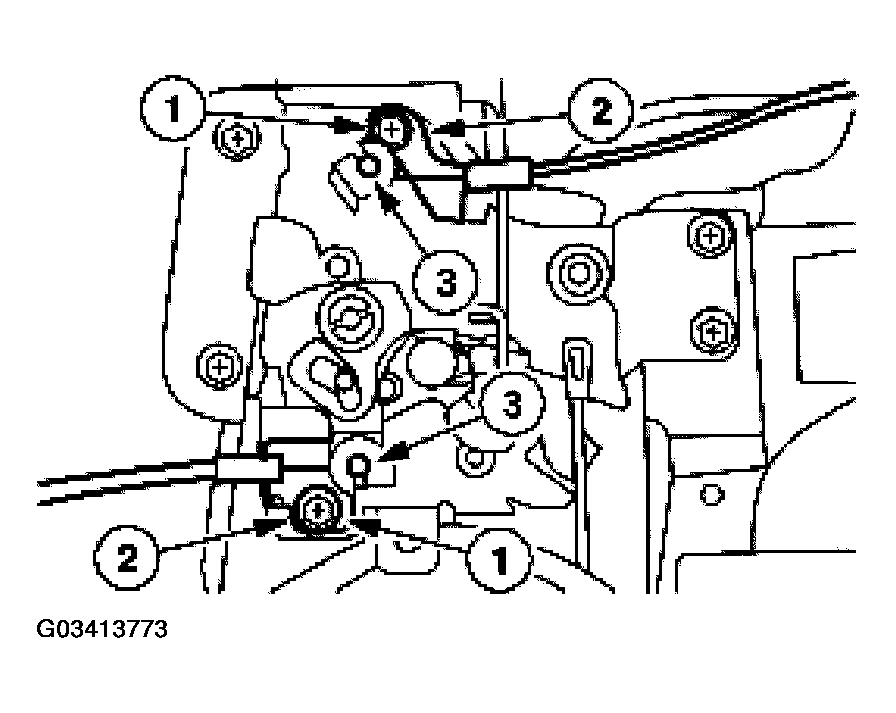

      Fig 1: Disconnecting Liftgate Latch Cables From Latch Remote Control
      G03413773Courtesy of FORD MOTOR CO.
  4. Release the liftgate exterior handle actuating rod.

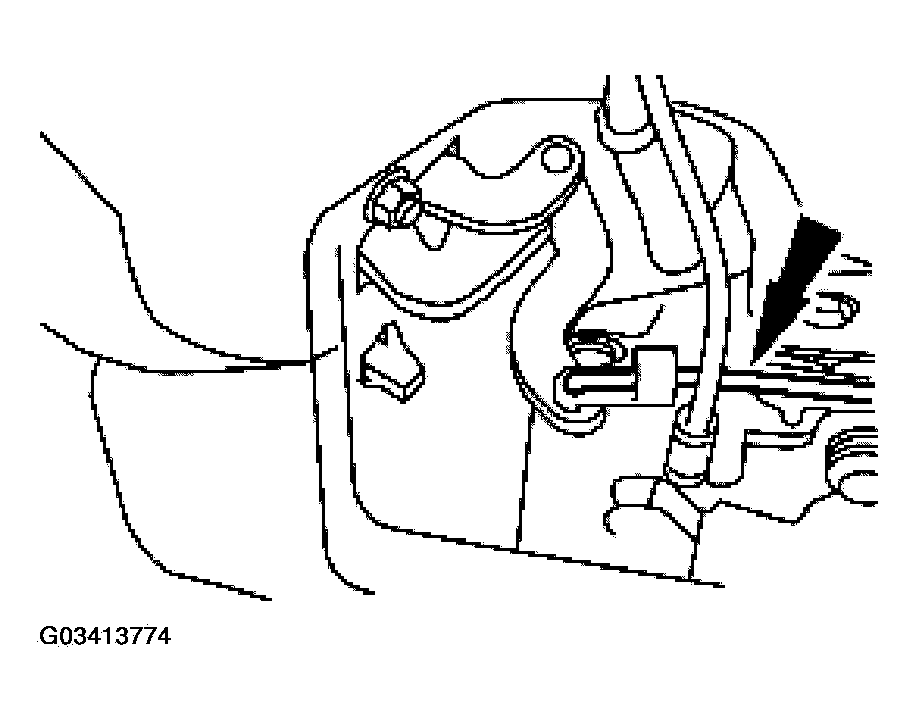

    Fig 2: Releasing Liftgate Exterior Handle Actuating Rod
    G03413774Courtesy of FORD MOTOR CO.
  5. Release the lock cylinder actuating rod.

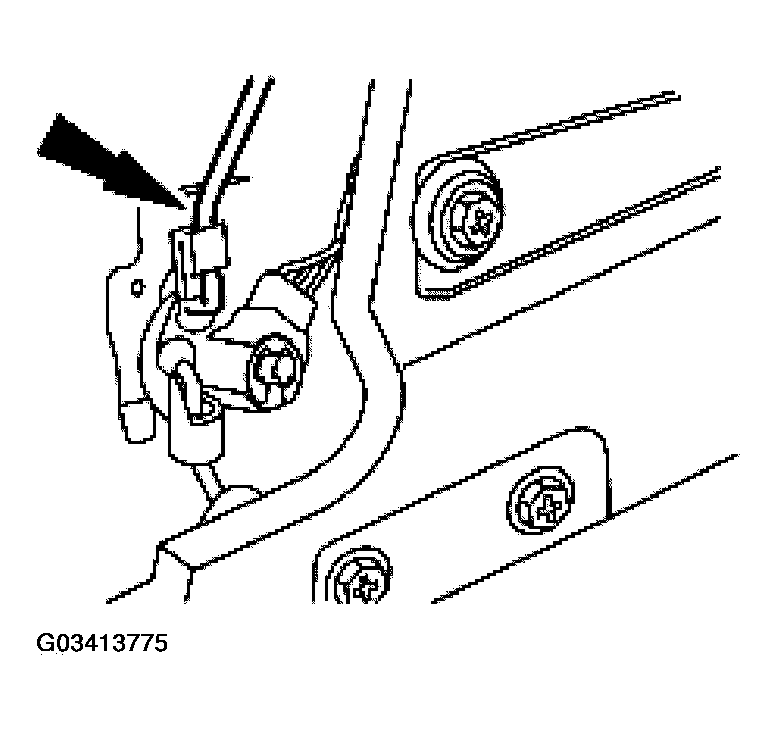

    Fig 3: Releasing Lock Cylinder Actuating Rod
    G03413775Courtesy of FORD MOTOR CO.
  6. Release the liftgate disarm switch electrical harness locator.

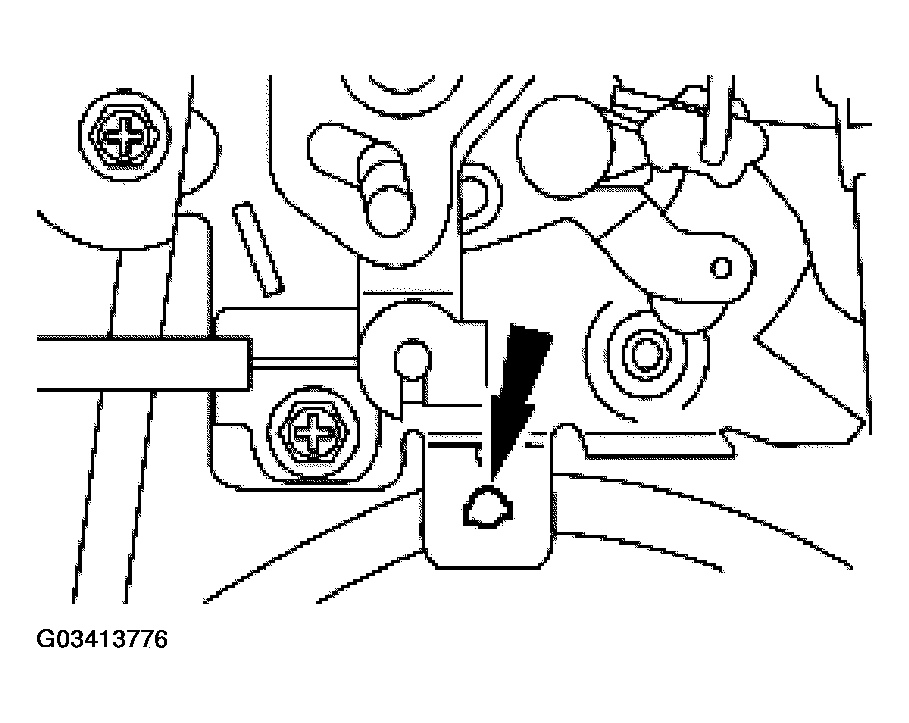

    Fig 4: Releasing Liftgate Disarm Switch Electrical Harness Locator
    G03413776Courtesy of FORD MOTOR CO.
  7. If equipped, disconnect the liftgate power lock actuator electrical connector.

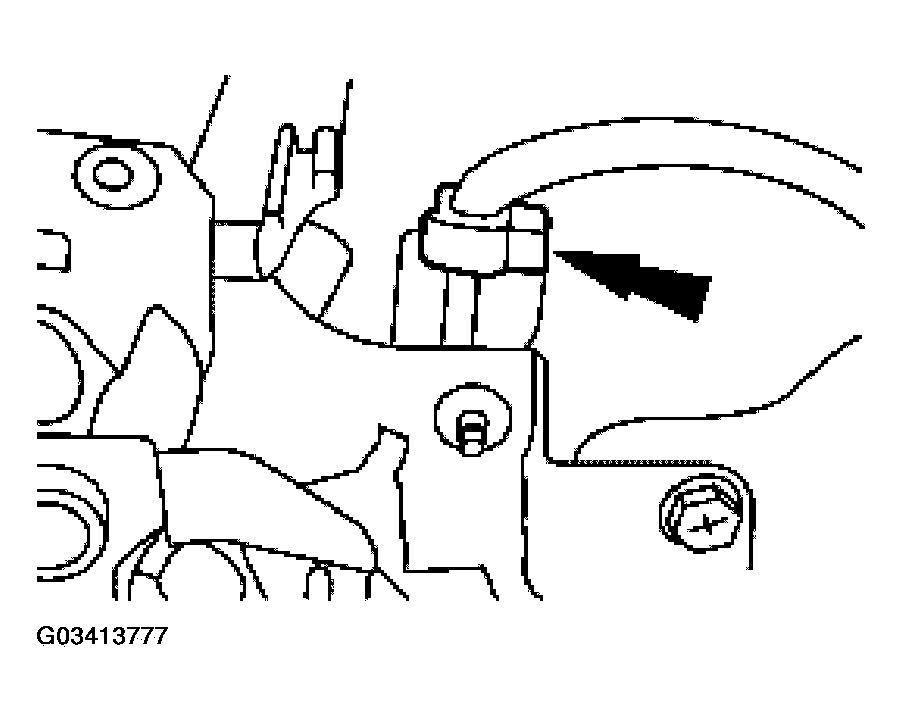

    Fig 5: Disconnecting Liftgate Power Lock Actuator Electrical Connector
    G03413777Courtesy of FORD MOTOR CO.
    8. NOTE: If necessary, transfer parts to the new liftgate latch remote control.
  8. Remove the liftgate latch remote control.
    1. Remove the bolts.
    2. Remove the liftgate latch remote control.

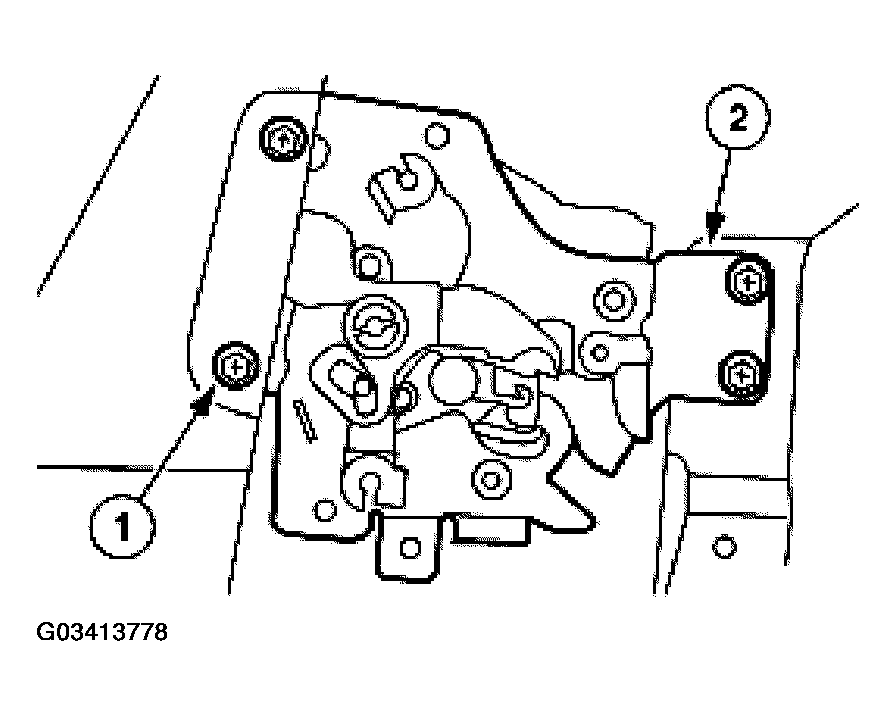

      Fig 6: Removing Liftgate Latch Remote Control
      G03413778Courtesy of FORD MOTOR CO.
