Latch Adjustment - Liftgate Window

  1. Open the liftgate window.
  2. Remove the liftgate window latch cover.
    1. Remove the pin-type retainers.
    2. Remove the liftgate window latch cover.

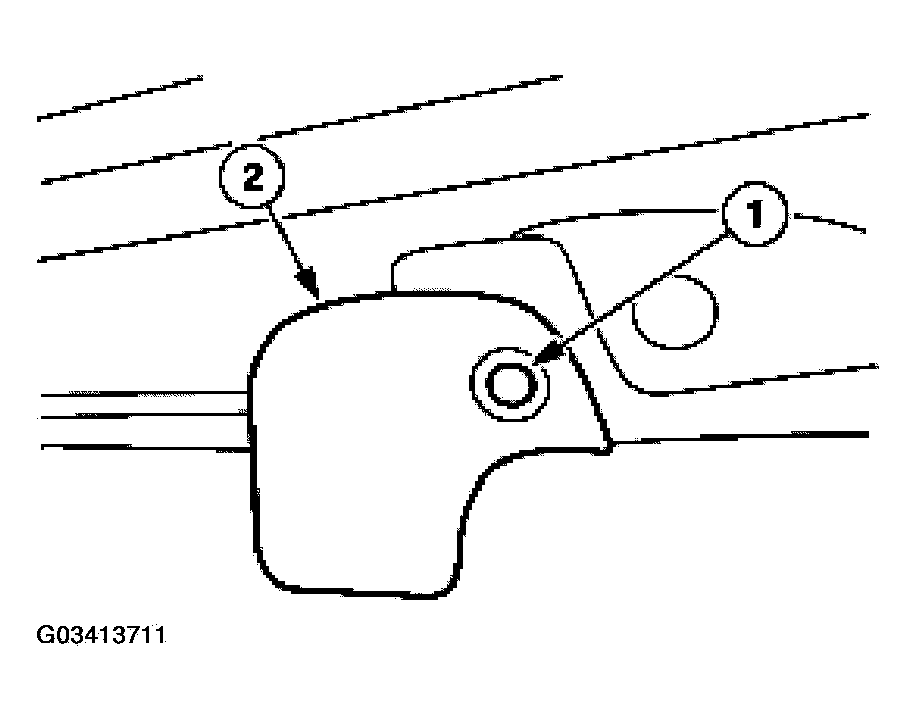

    Fig 1: Removing Liftgate Window Latch Cover
    G03413711Courtesy of FORD MOTOR CO.
  3. Loosen the liftgate window latch bolts.

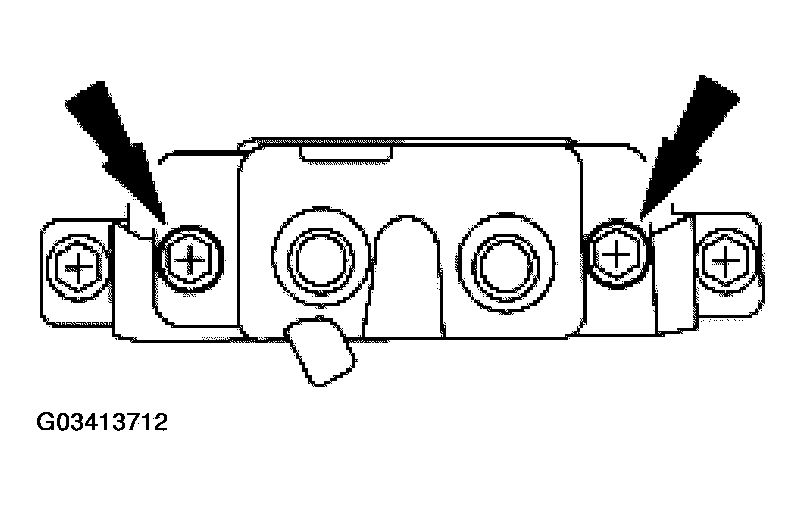

    Fig 2: Loosening Liftgate Window Latch Bolts
    G03413712Courtesy of FORD MOTOR CO.
  4. Adjust the liftgate window latch.
    • Set the liftgate window glass flush with the liftgate.
  5. Tighten the liftgate window latch bolts.

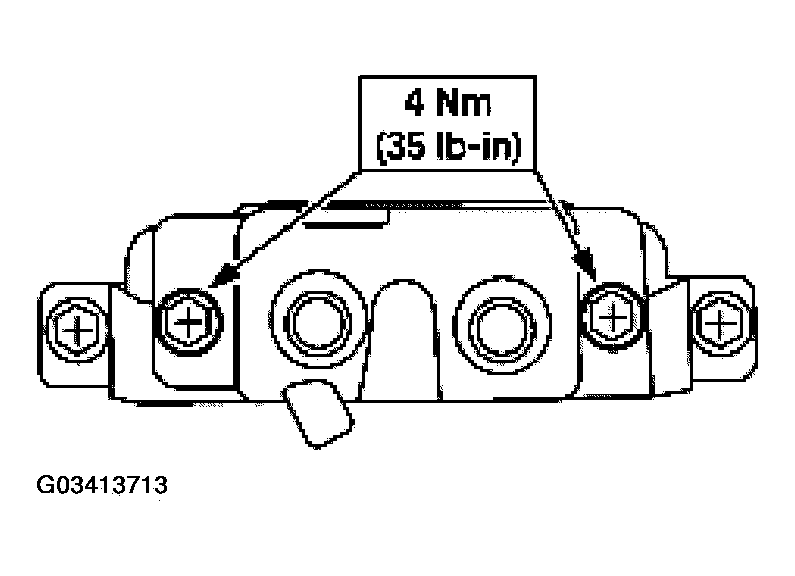

    Fig 3: Tightening Liftgate Window Latch Bolts
    G03413713Courtesy of FORD MOTOR CO.
  6. Install the liftgate window latch cover.
    Fig 4: Installing Liftgate Window Latch Cover
    G03413714Courtesy of FORD MOTOR CO.
