Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative

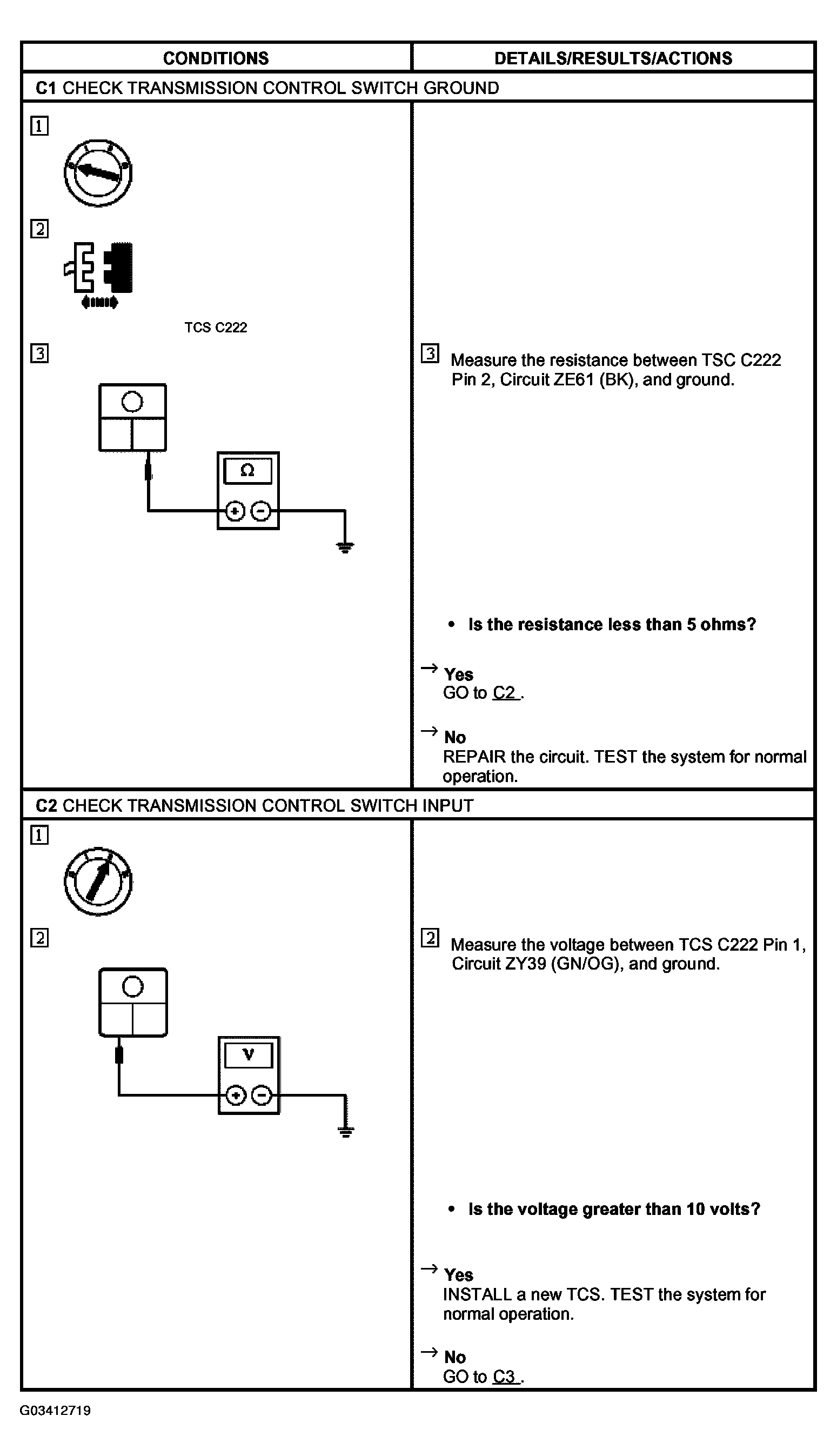

Fig 1: Identifying Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (1 Of 2)
G03412719Courtesy of FORD MOTOR CO.

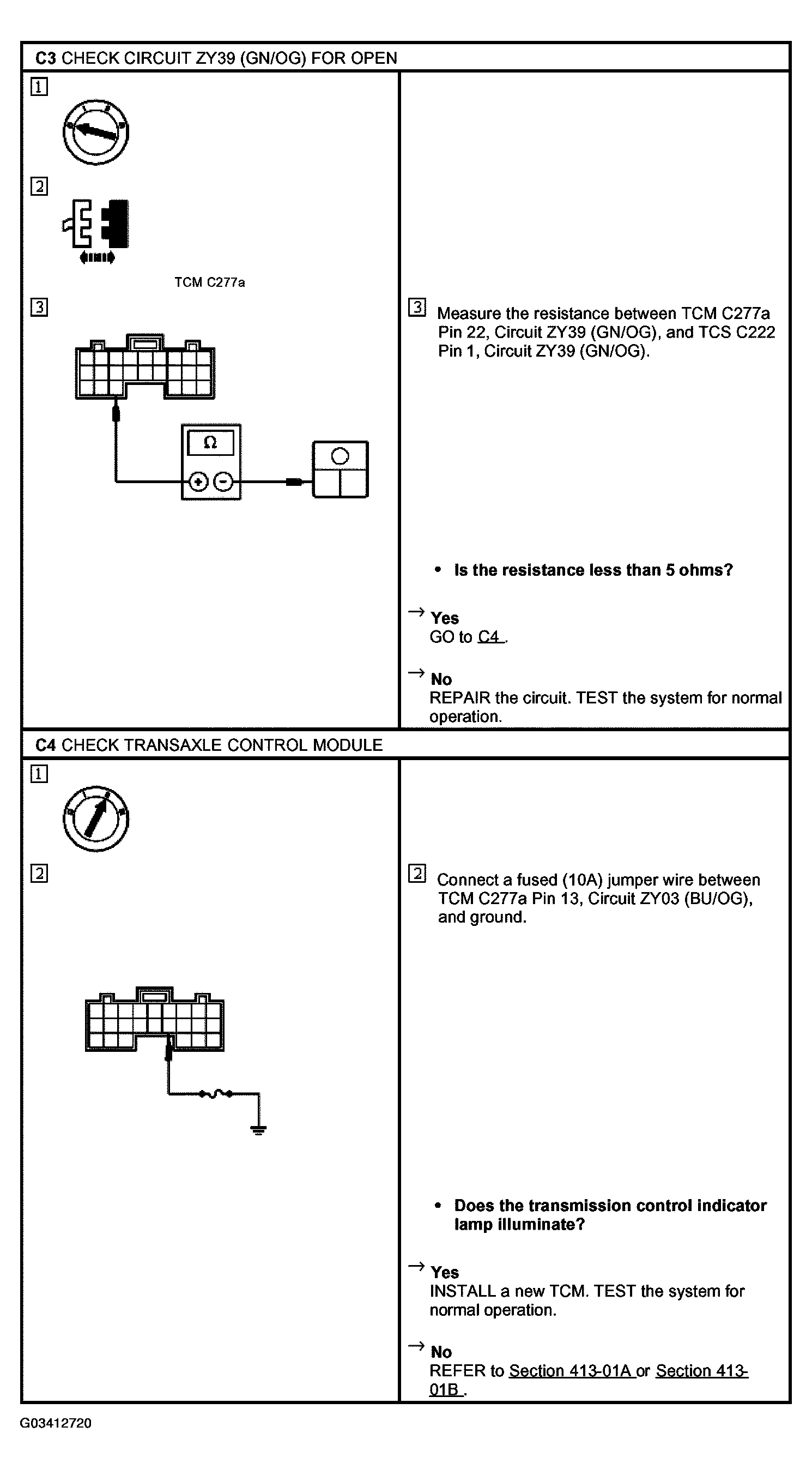

Fig 2: Identifying Pinpoint Test C: Transmission Control Switch (TCS) Is Inoperative (2 Of 2)
G03412720Courtesy of FORD MOTOR CO.
