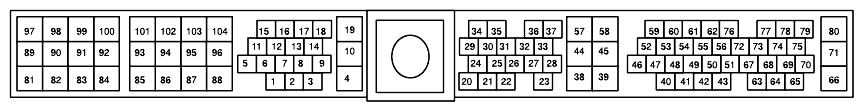

| 1 |
AV01 (BU) |
Distributor, Transistor, return |
| 2 |
AV98 (WH) |
Distributor, Ignition coil, return |
| 3 |
AV02 (GN/WH) |
Tachometer |
| 4 |
AV04 (WH/GN) |
PCM power relay, control |
| 5 |
AW18 (GN/BK) |
EVAP canister purge valve |
| 6 |
... |
not used |
| 7 |
AV56 (GN/BK) |
Powertrain Control Module (PCM) (12A650), Transaxle Control Module (TCM) |
| 8 |
AV05 (OG/BK) |
Powertrain Control Module (PCM) (12A650) - fuel flow |
| 9 |
HX01 (BU/BK) |
A/C high pressure switch (19D594), input |
| 10 |
EP06 (BK) |
Ground |
| 11 |
AV54 (BU/RD) |
Fuel pump relay, control |
| 12 |
HA41 (LG) |
A/C clutch relay, control |
| 13 |
... |
not used |
| 14 |
... |
not used |
| 15 |
... |
not used |
| 16 |
... |
not used |
| 17 |
AV23 (BU/WH) |
Powertrain Control Module (PCM) (12A650) |
| 18 |
NR01 (VT) |
Malfunction Indicator Lamp (MIL), control |
| 19 |
EP13 (BK) |
Ground |
| 20 |
AV34 (BU/BK) |
Voltage supplied in Start (overload protected) |
| 21 |
HA45 (WH/RD) |
A/C high pressure switch (19D594), input |
| 22 |
ZY13 (GY/RD) |
Powertrain Control Module (PCM) (12A650), Transaxle Control Module (TCM) |
| 23 |
AV20 (RD) |
Throttle Position Sensor (TPS) (9B989), input |
| 24 |
AV57 (GN/WH) |
Powertrain Control Module (PCM) (12A650), Transaxle Control Module (TCM) |
| 25 |
AV58 (WH) |
Powertrain Control Module (PCM) (12A650), Transaxle Control Module (TCM) |
| 26 |
AV33 (BN/YE) |
Throttle position switch - Idle input |
| 27 |
AV32 (GY/YE) |
Vehicle Speed Sensor (VSS) + |
| 28 |
... |
not used |
| 29 |
AW17 (BU/RD) |
High speed cooling fan relay, switched power |
| 30 |
AW16 (BU/WH) |
Low speed fan control relay, switched power |
| 31 |
AV61 (PK/BK) |
Powertrain Control Module (PCM) (12A650), Transaxle Control Module (TCM) |
| 32 |
FA06 (BN/WH) |
High speed cooling fan relay, control |
| 33 |
ZY34 (RD/GN) |
Powertrain Control Module (PCM) (12A650), Transaxle Control Module (TCM) |
| 34 |
FA12 (BU/OG) |
Low speed fan control relay, control |
| 35 |
AV12 (PK) |
Power steering pressure switch, input |
| 36 |
... |
not used |
| 37 |
... |
not used |
| 38 |
AV36 (BU/YE) |
Voltage supplied in Start and Run (overload protected) |
| 39 |
ES39 (BK/RD) |
Ground |
| 40 |
AV22 (WH) |
signal, return |
| 41 |
AW25 (PK) |
EVAP pressure sensor, input |
| 42 |
... |
not used |
| 43 |
AV09 (LG) |
Crankshaft position sensor (6C315) |
| 44 |
- |
not used |
| 45 |
ES48 (BK/RD) |
Ground |
| 46 |
AV30 (WH) |
Camshaft position sensor (6B288), return |
| 47 |
AV31 (OG) |
Camshaft position sensor (6B288), input |
| 48 |
AV19 (LG) |
signal, return |
| |
AW30 (LG) |
signal, return |
| 49 |
- |
not used |
| 50 |
- |
not used |
| 51 |
- |
not used |
| 52 |
AV16 (WH/BU) |
Mass Air Flow (MAF) sensor (12B579), signal, return |
| 53 |
AV17 (BU/OG) |
Mass Air Flow (MAF) sensor (12B579), output |
| 54 |
AW41 (BN) |
Signal return - California |
| 55 |
- |
not used |
| 56 |
- |
not used |
| 57 |
AV37 (BN) |
Reference, voltage |
| 58 |
AV21 (BK/YE) |
signal, return |
| 59 |
AV18 (LG/RD) |
Engine Coolant Temperature (ECT) sensor (12A648), input |
| 60 |
AV25 (RD/YE) |
Fuel pump/fuel gauge sender |
| 61 |
AV28 (YE/GN) |
Intake Air Temperature (IAT) sensor (12A697), input |
| 62 |
AV27 (WH) |
Knock sensor (12A699) |
| 64 |
- |
not used |
| 65 |
- |
not used |
| 66 |
AV38 (BK/WH) |
Voltage supplied in Start and Run (overload protected) |
| 67 |
- |
not used |
| 68 |
AV42 (YE/GN) |
ISO Bus |
| 69 |
- |
not used |
| 70 |
- |
not used |
| 71 |
AV47 (BK/WH) |
Voltage supplied in Start and Run (overload protected) |
| 72 |
- |
not used |
| 73 |
- |
not used |
| 74 |
AV07 (YE/RD) |
Powertrain Control Module (PCM) (12A650) |
| 75 |
AV15 (YE/BK) |
Powertrain Control Module (PCM) (12A650) |
| 76 |
AV08 (WH/VT) |
not used |
| 77 |
- |
not used |
| 78 |
- |
not used |
| 79 |
- |
not used |
| 80 |
AV46 (YE) |
Voltage supplied at all times (overload protected) |
| 81 |
AV83 (LB) |
Idle Speed Control (ISC), input |
| 82 |
AV51 (GN/OG) |
Injector 1, control |
| 83 |
AV52 (GY) |
not used |
| 84 |
AV53 (GN/RD) |
Injector 3, control |
| 85 |
- |
not used |
| 86 |
AV55 (YE/GN) |
Injector 5, control |
| 87 |
- |
not used |
| 88 |
AW08 (LG/BK) |
EVAP canister vent control solenoid, input |
| 89 |
AV60 (GN) |
Injector 2, control |
| 90 |
- |
not used |
| 91 |
AV62 (YE/VT) |
Injector 4, control |
| 92 |
- |
not used |
| 93 |
AV64 (GY/BU) |
Injector 6, control |
| 94 |
- |
not used |
| 94 |
- |
not used |
| 95 |
- |
not used |
| 96 |
EP58 (BK) |
Ground |
| 97 |
AV59 (BK/WH) |
Voltage supplied in Start and Run (overload protected) |
| 98 |
AW12 (VT) |
Manifold Absolute Pressure (MAP)/Barometric Pressure (BARO) solenoid, control |
| 99 |
ES90 (BK) |
Heated Oxygen Sensor (HO2S), front, heater |
| 100 |
AW06 (BU/GN) |
EVAP canister purge vacuum cut valve bypass solenoid, input |
| 101 |
- |
not used |
| 102 |
AW43 (YE) |
Heated Oxygen Sensor (HO2S), rear, heater - California |
| 103 |
- |
not used |
| 104 |
EP57 (BK) |
Ground |
