Pinpoint Test A: No Communication With The Anti-Lock Brake Control Module

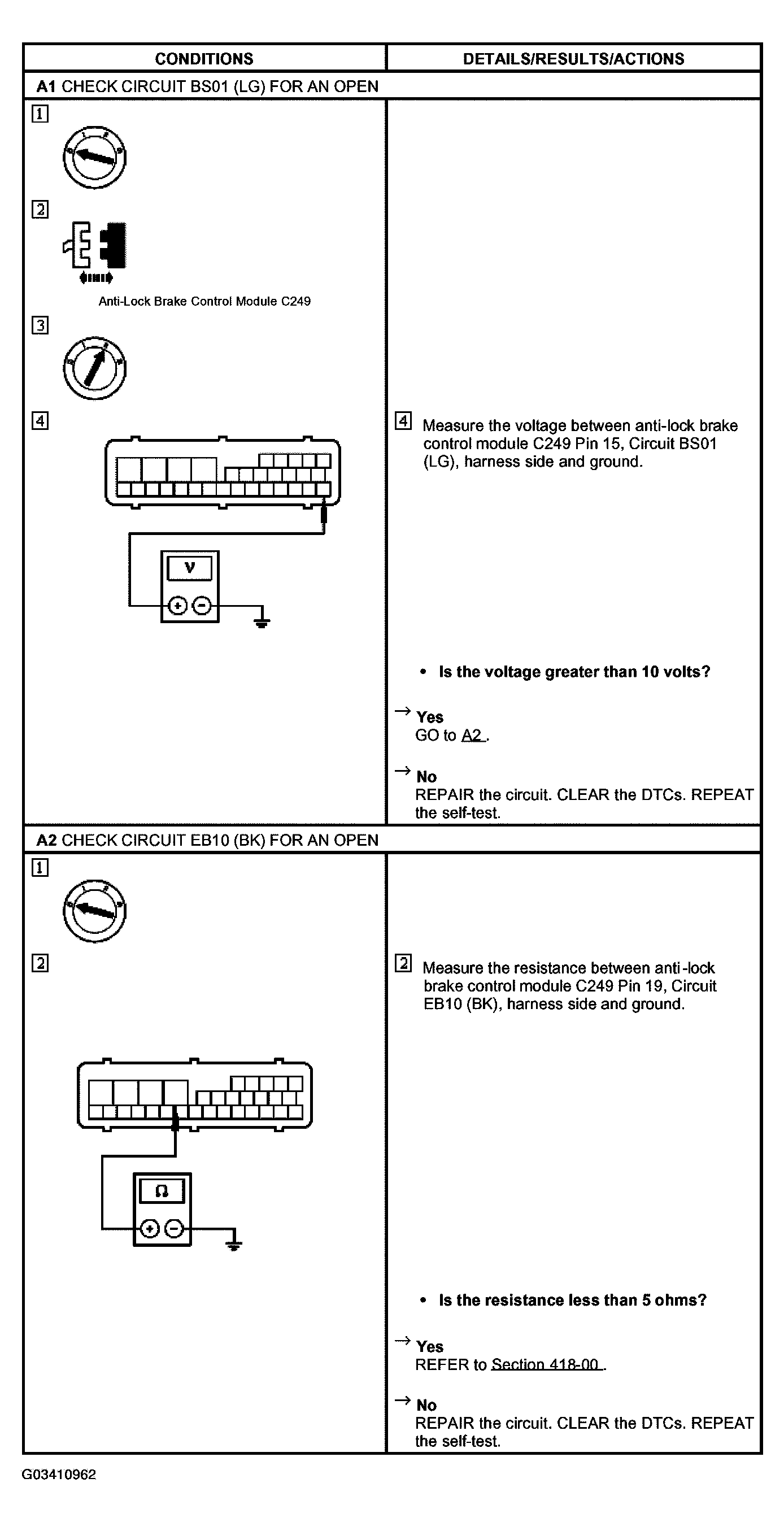

Fig 1: Pinpoint Test A: No Communication With Anti-Lock Brake Control Module

G03410962

Courtesy of FORD MOTOR CO.
