Pinpoint Test A: The Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake Control Module

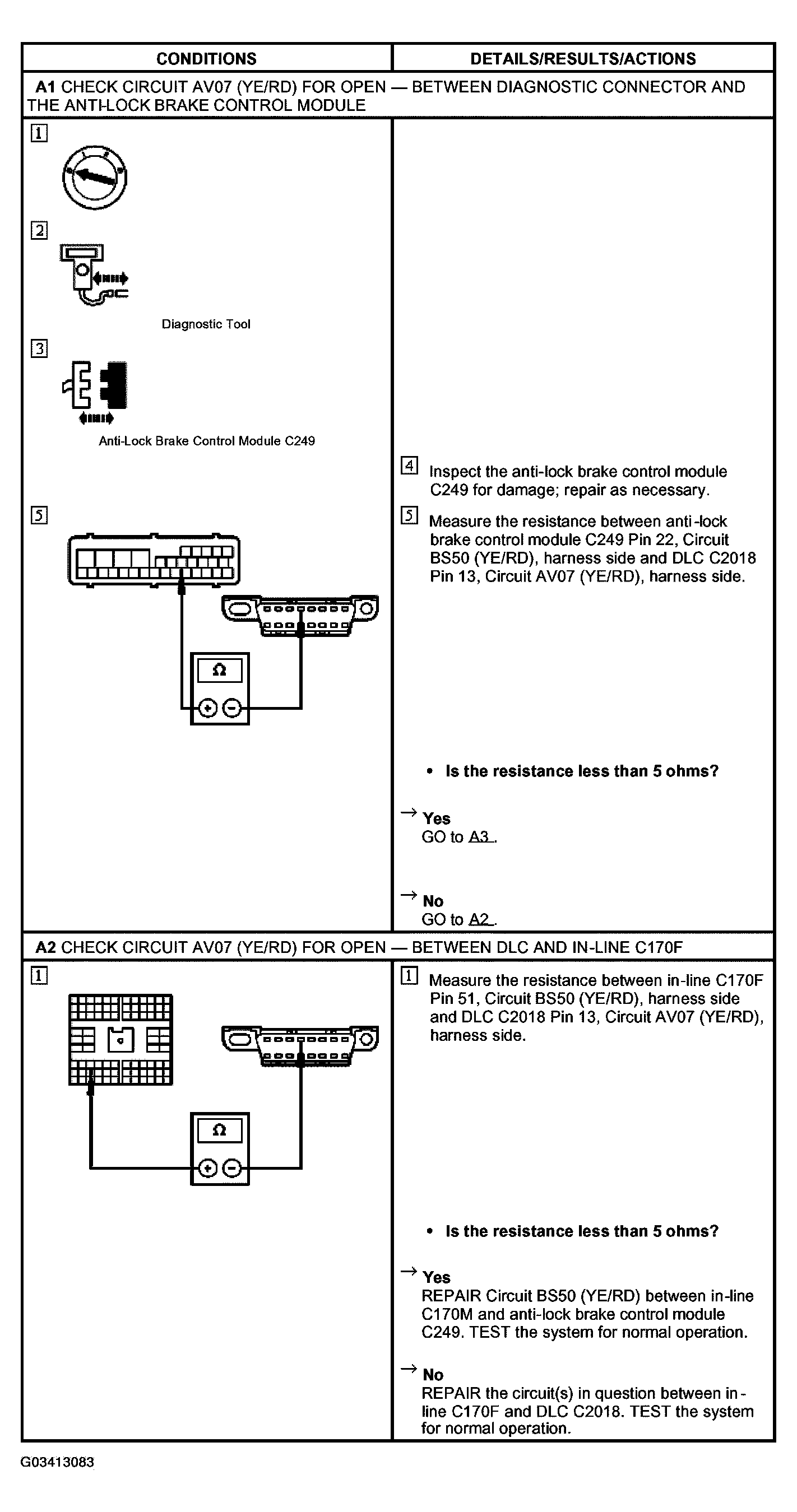

Fig 1: Pinpoint Test A: Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module (A1-A2)
G03413083Courtesy of FORD MOTOR CO.

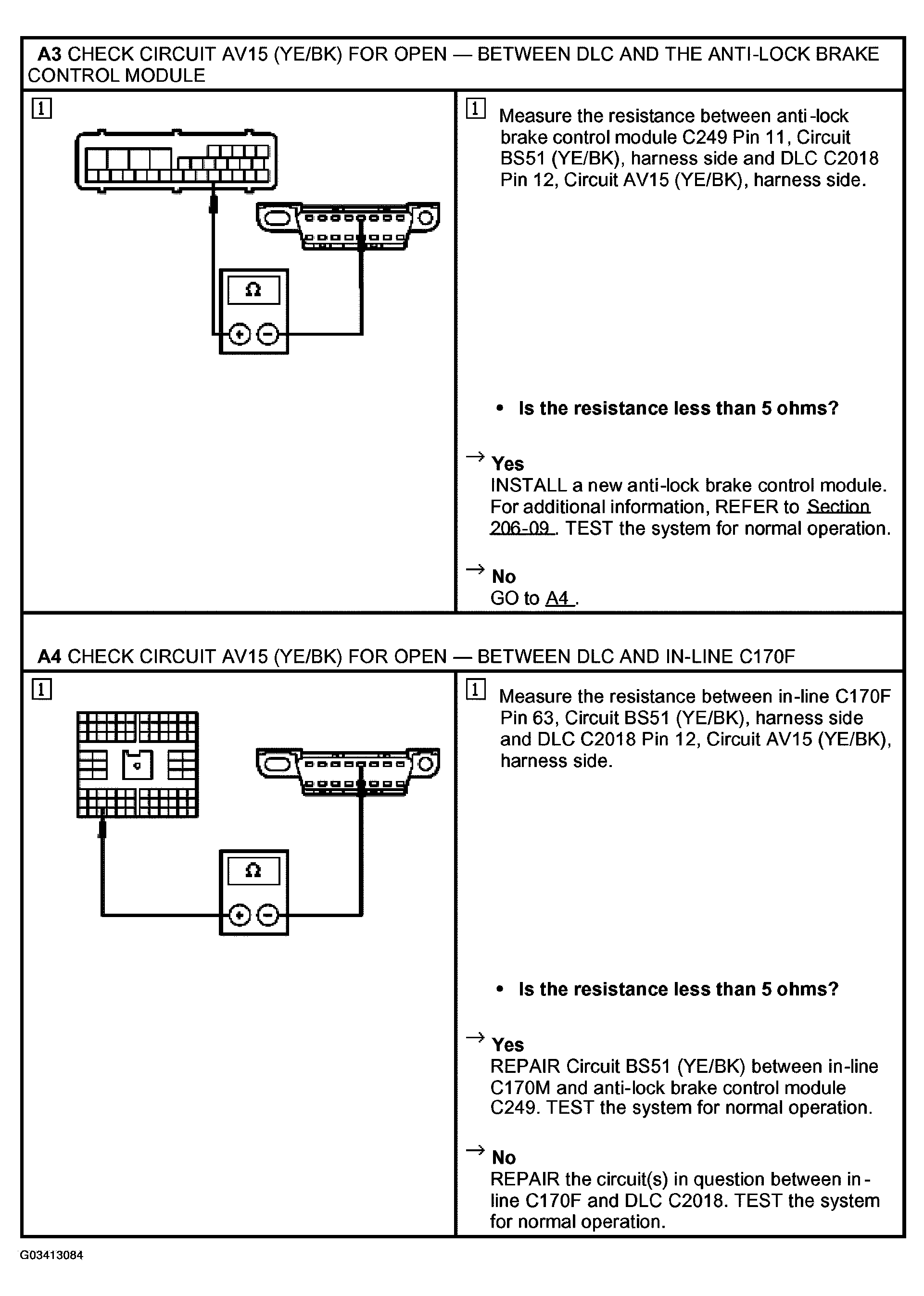

Fig 2: Pinpoint Test A: Module Does Not Respond To Diagnostic Tool - Anti-Lock Brake Control Module (A3-A4)
G03413084Courtesy of FORD MOTOR CO.
