Jacking & Hoisting: Hoist
WARNING:
All four hoist contact points must contact the designated vehicle lifting locations. Using other areas to lift the vehicle may cause damage to the vehicle or personal injury. Failure to follow these instructions may result in personal injury.
CAUTION:
Do not allow the lift arms, pads or adapters to contact the front or rear control arms, halfshafts, front wheel Constant Velocity (CV) joints, steering linkage, stabilizer bar, or compress the stabilizer bar link insulators. Damage to suspension, exhaust and steering linkage components may occur if care is not exercised when positioning the lift adapters prior to lifting the vehicle. Under no circumstances should the vehicle be lifted by the front control arms or rear control arms. Severe damage to the vehicle could result.

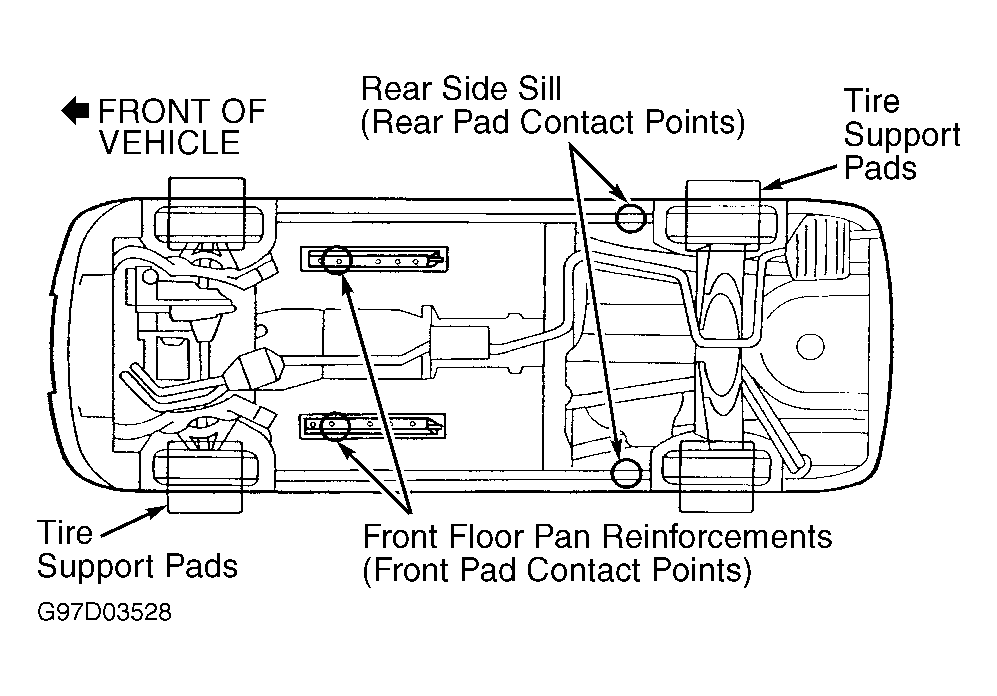

For lifting points, see Fig 1 .
