Driver Door Module (DDM) C501a
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

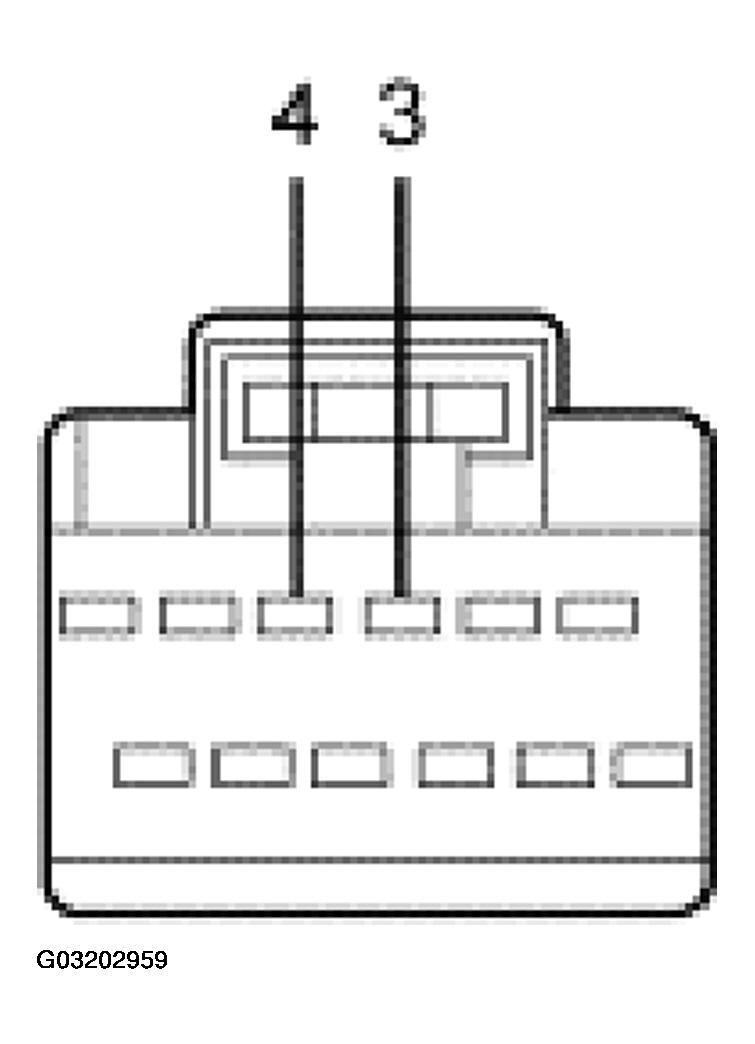

DRIVER DOOR MODULE (DDM) C501A CONNECTOR PINS DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 4-EG13 (GY/OG) SCP communication circuit. | Less than 5 ohms between the driver door module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected |
| 4 | 5-EG13 (BU/BK) SCP communication circuit. | Less than 5 ohms between the driver door module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
