Horn Switch C217
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

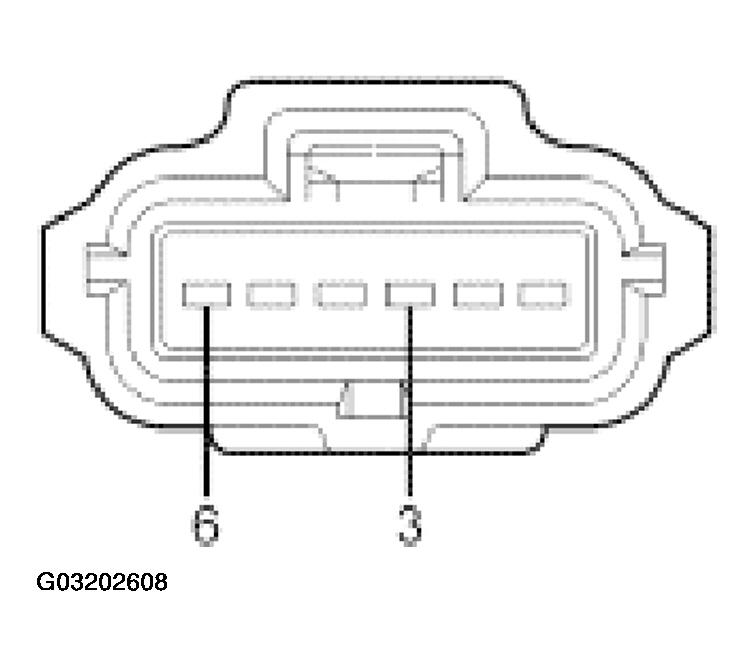

HORN SWITCH C217 CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | - | Less than 5 ohms between the steering wheel control switch and the horn switch. Greater than 10,000 ohms between the steering wheel control switch and ground. |
| 6 | - | Less than 5 ohms between the steering wheel control switch and the horn switch. Greater than 10,000 ohms between the steering wheel control switch and ground. |
