Pinpoint Test H: No Module/Network Communication - No Power To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

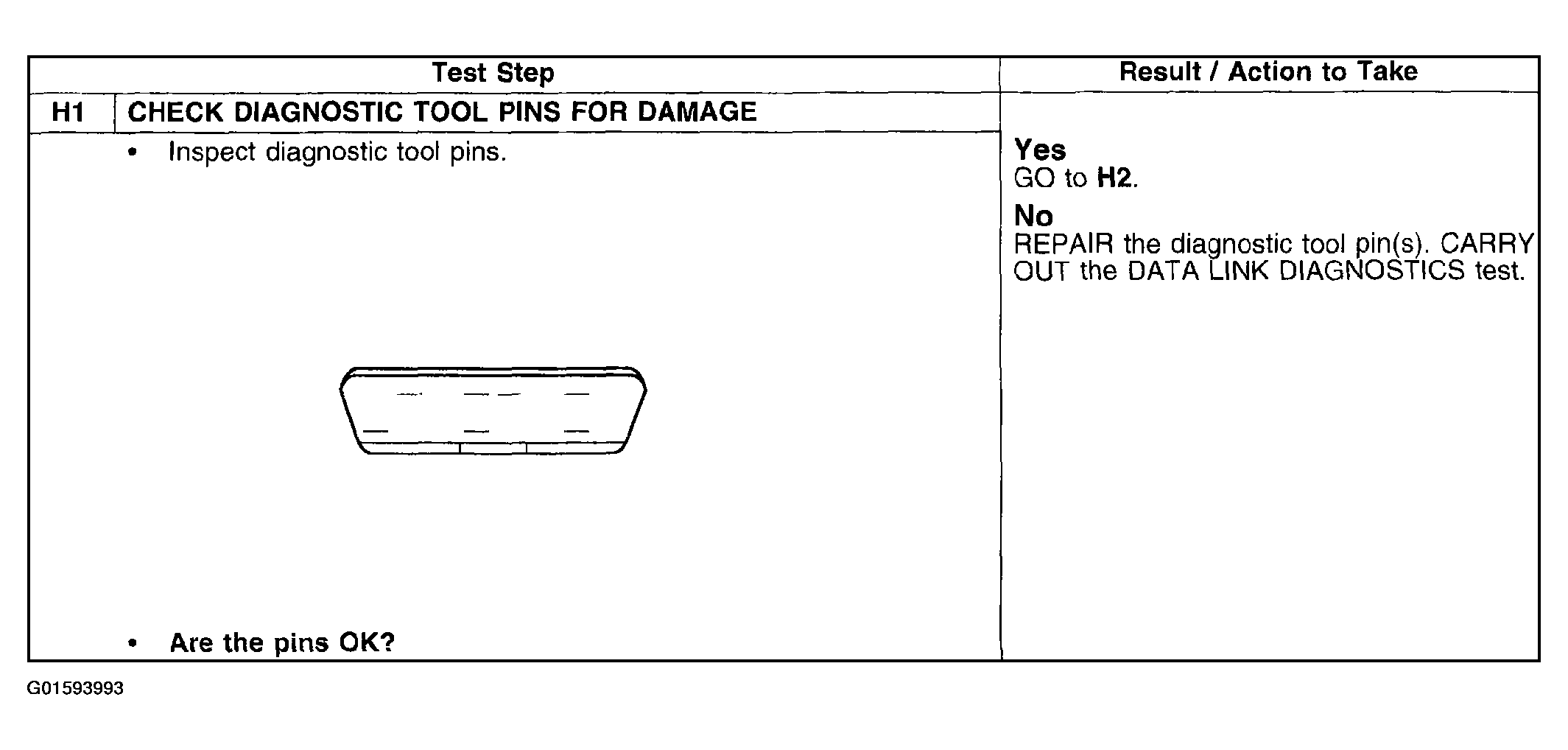

Fig 1: Pinpoint Test H: No Module/Network Communication - No Power To Diagnostic Tool (Steps H1)
G01593993Courtesy of FORD MOTOR CO.

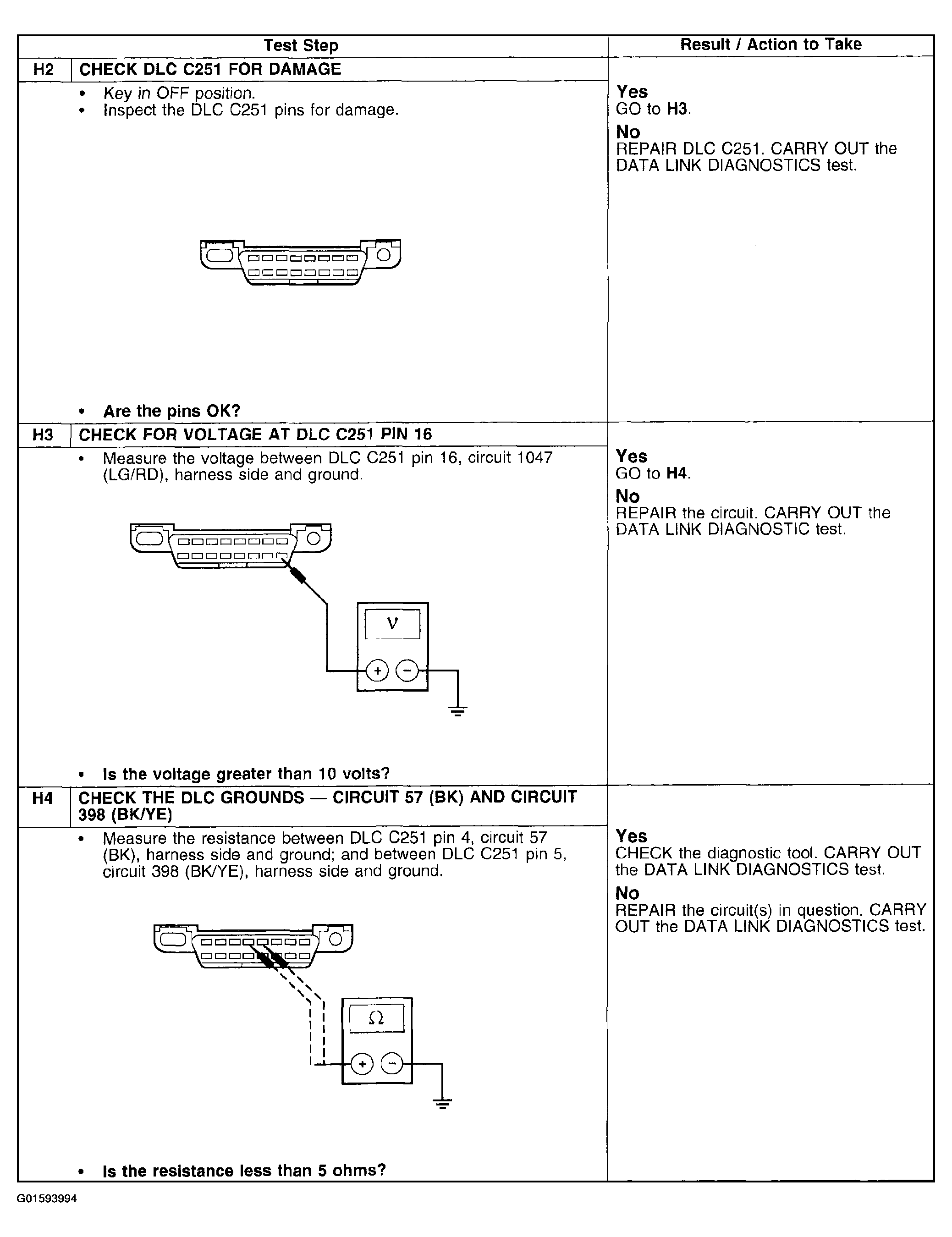

Fig 2: Pinpoint Test H: No Module/Network Communication - No Power To Diagnostic Tool (Steps H2-H4)
G01593994Courtesy of FORD MOTOR CO.
