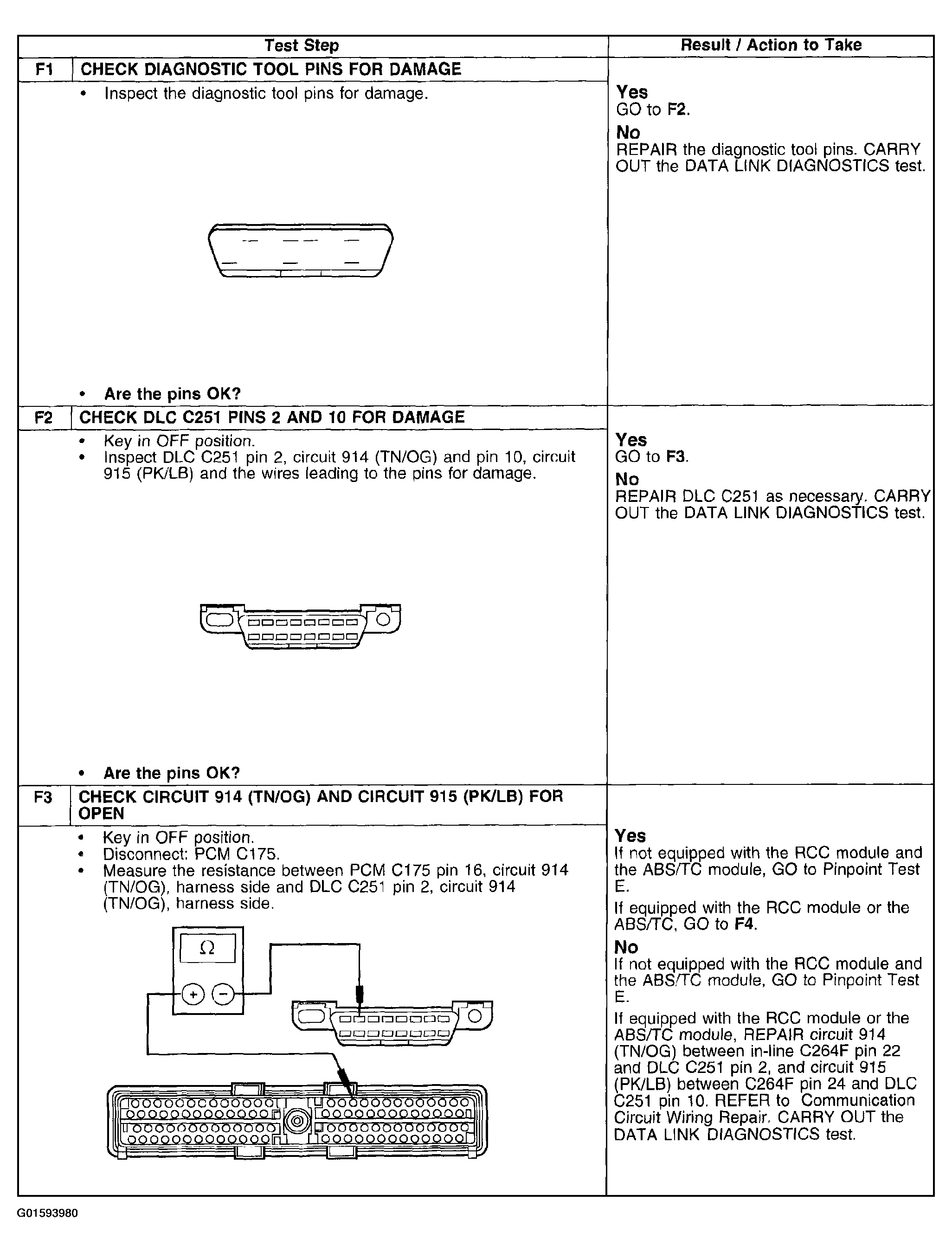

Fig 1: Pinpoint Test F: No SCP Network Communication (Steps F1-F3)
Courtesy of FORD MOTOR CO.

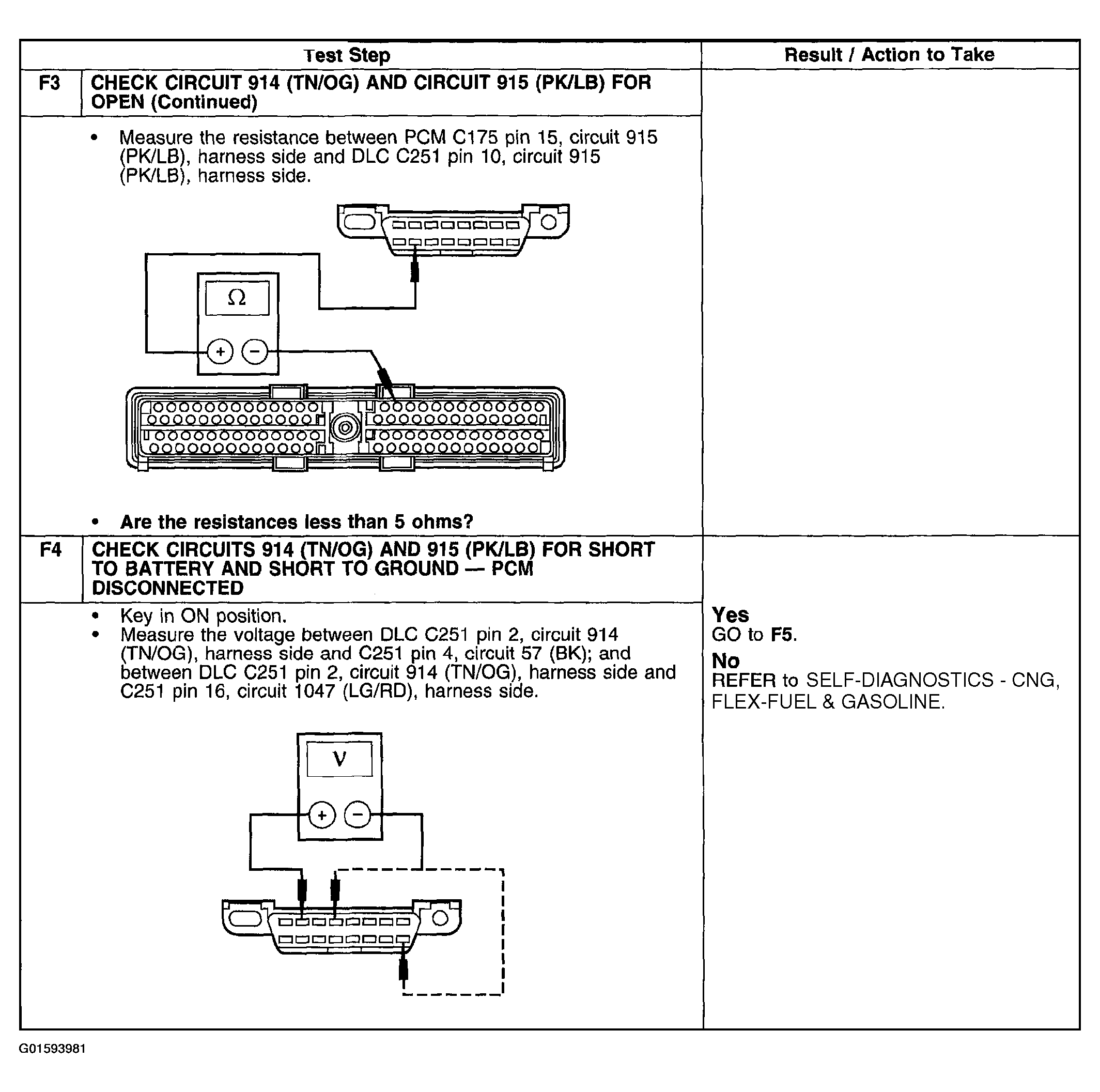

Fig 2: Pinpoint Test F: No SCP Network Communication (Steps F3 Continued-F4)
Courtesy of FORD MOTOR CO.

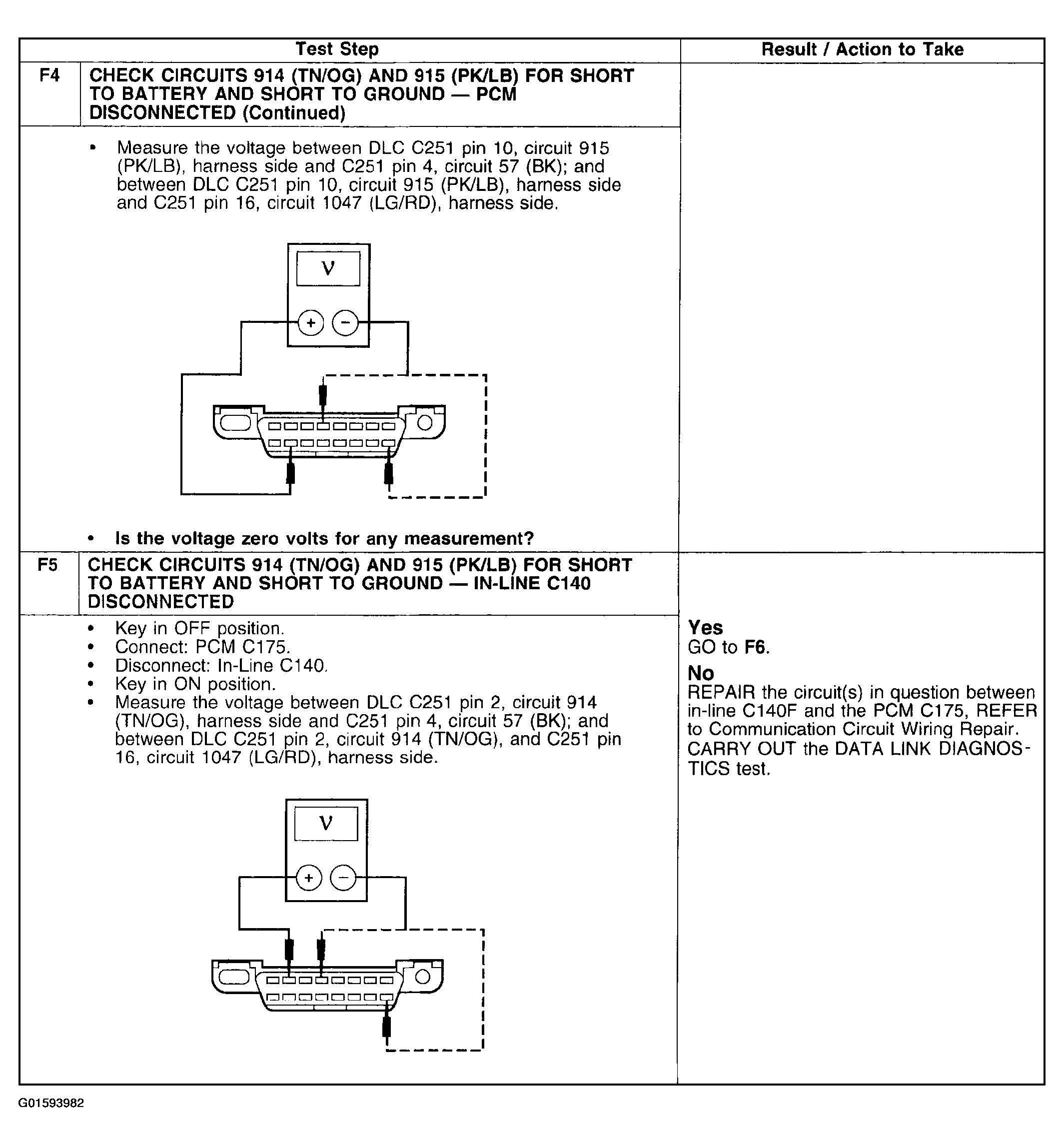

Fig 3: Pinpoint Test F: No SCP Network Communication (Steps F4 Continued-F5)
Courtesy of FORD MOTOR CO.

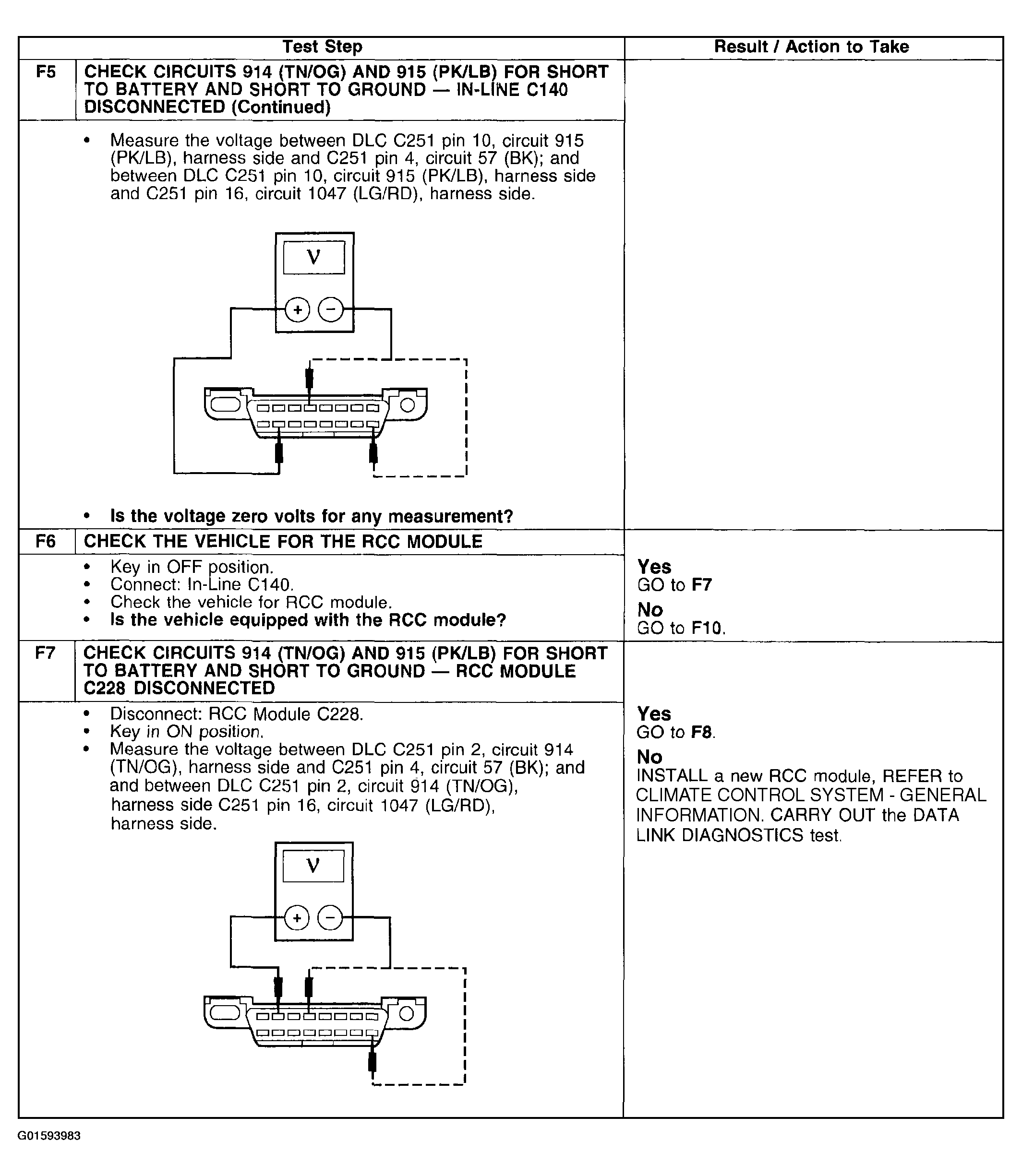

Fig 4: Pinpoint Test F: No SCP Network Communication (Steps F5 Continued-F7)
Courtesy of FORD MOTOR CO.

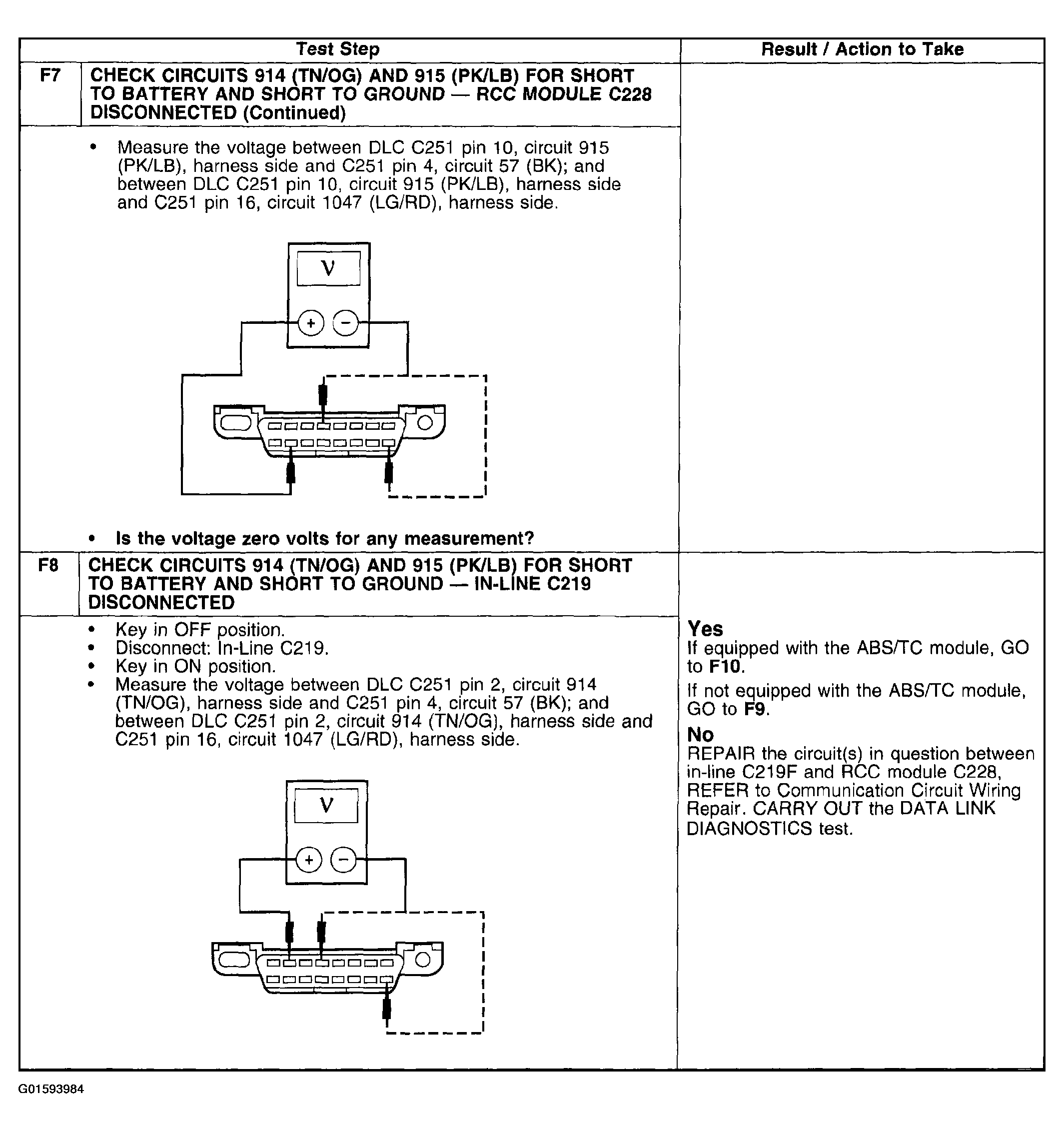

Fig 5: Pinpoint Test F: No SCP Network Communication (Steps F7 Continued-F9)
Courtesy of FORD MOTOR CO.

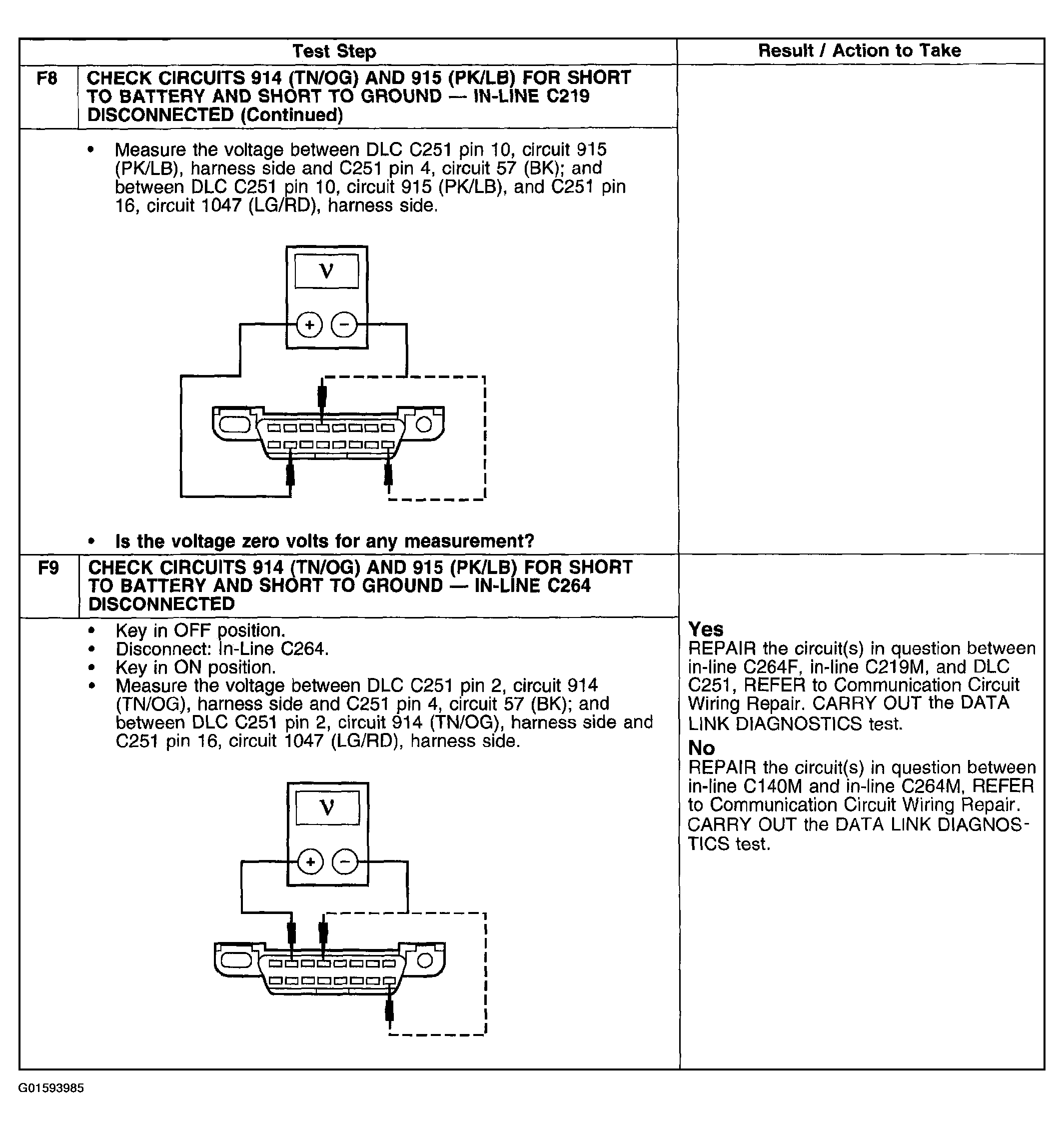

Fig 6: Pinpoint Test F: No SCP Network Communication (Steps F8-F9)
Courtesy of FORD MOTOR CO.

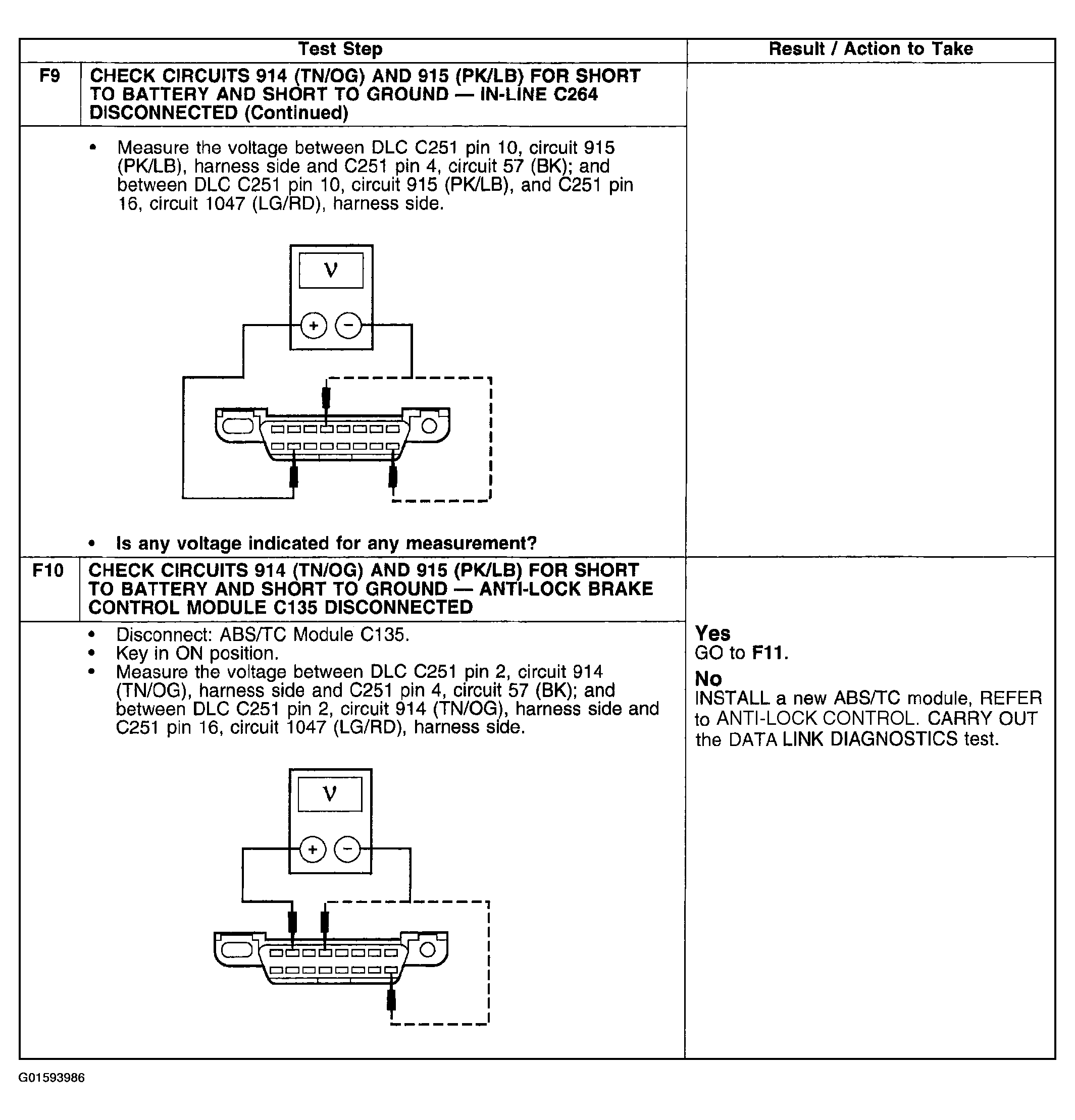

Fig 7: Pinpoint Test F: No SCP Network Communication (Steps F9 Continued-F10)
Courtesy of FORD MOTOR CO.

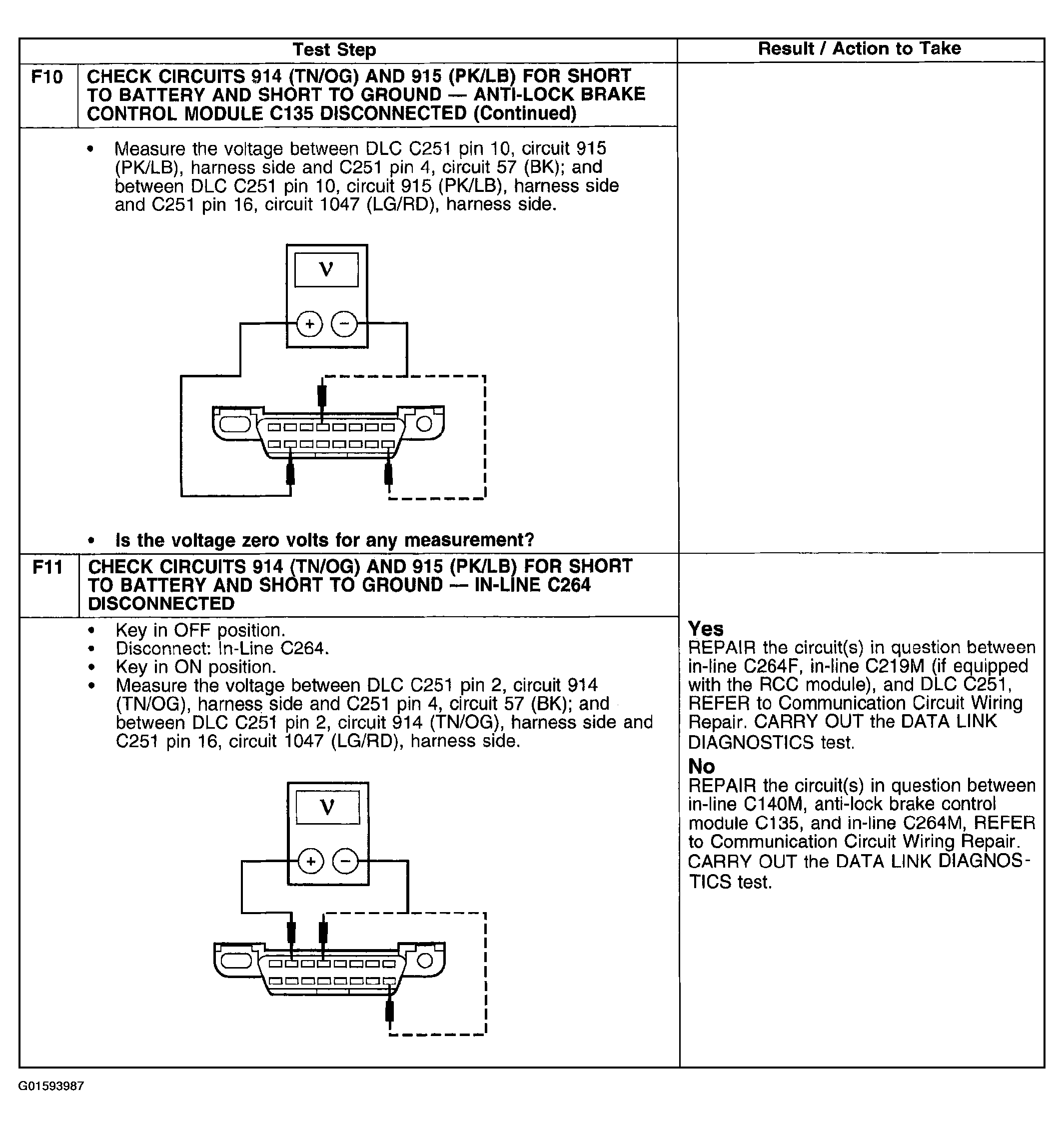

Fig 8: Pinpoint Test F: No SCP Network Communication (Steps F10 Continued-F11)
Courtesy of FORD MOTOR CO.

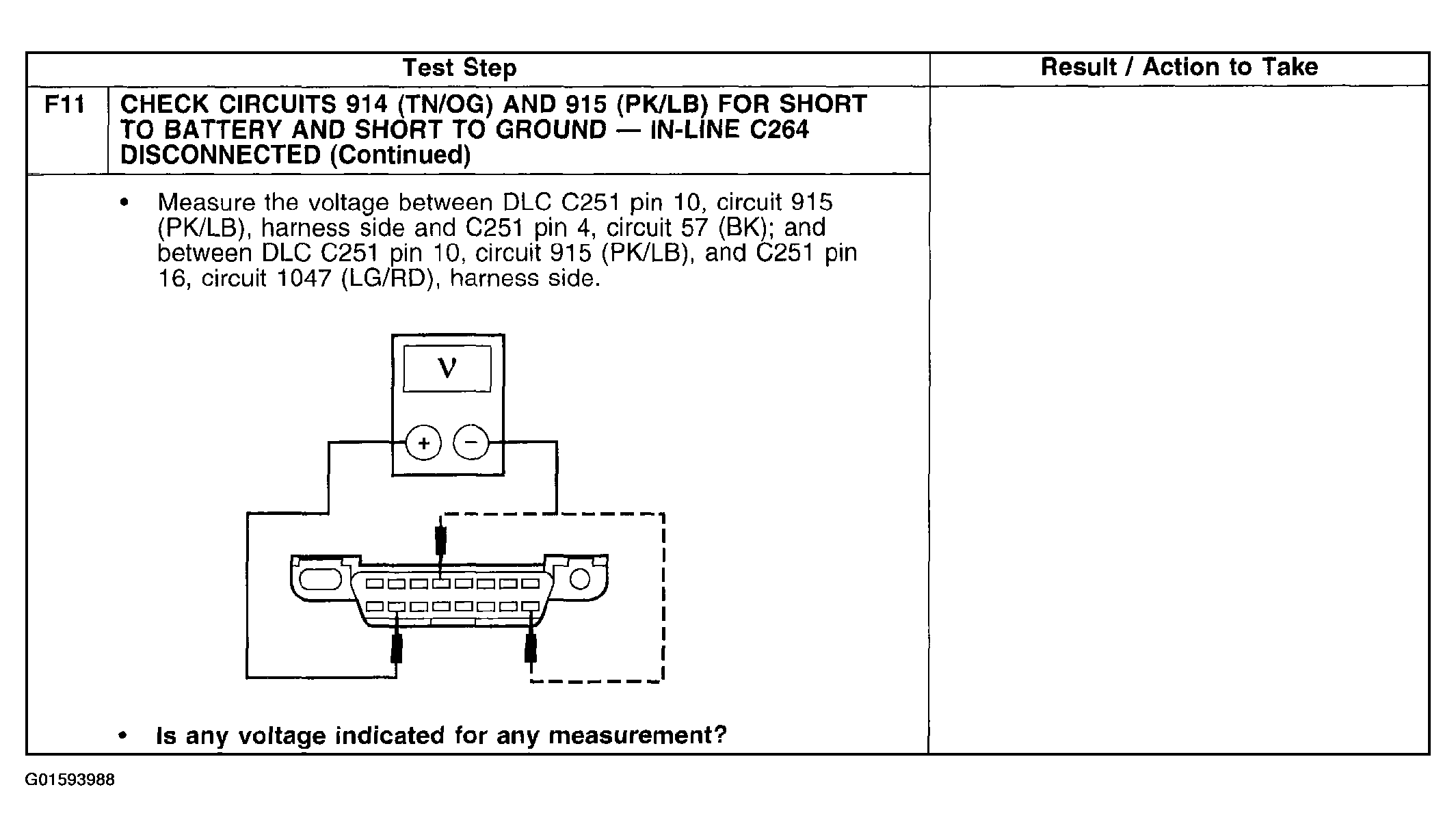

Fig 9: Pinpoint Test F: No SCP Network Communication (Steps F11 Continued)
