Removal & Installation (3.0L 2V)

Disconnect negative battery cable. Raise and support vehicle. Disconnect Crankshaft Position (CKP) sensor. Remove CKP sensor bolts and remove CKP sensor. See Fig 1. To install, reverse removal procedure. Tighten CKP sensor bolts to specification. See TORQUE SPECIFICATIONS .

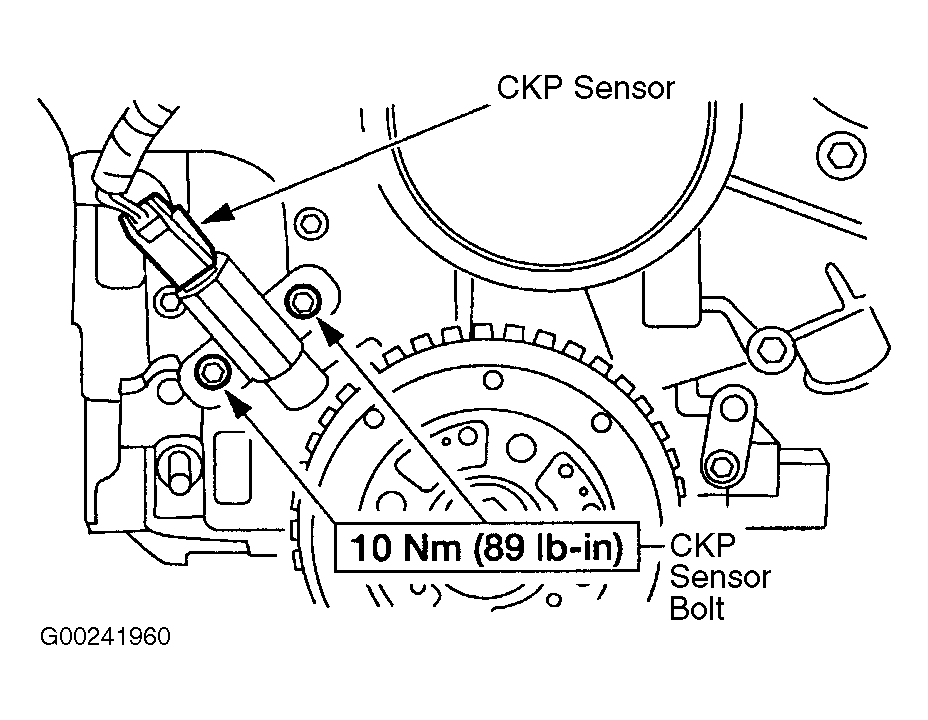

Fig 1: Removing & Installing Crankshaft Position Sensor (3.0L 2V)

Courtesy of FORD MOTOR CO.
