Removal and Installation

  1. Raise and support the vehicle.
  2. Disconnect the wiring.
    Fig 1: Disconnecting Rear Wheel Speed Sensor Wiring
    G02154984Courtesy of FORD MOTOR CO.
  3. Disengage wiring from the wiring clips.

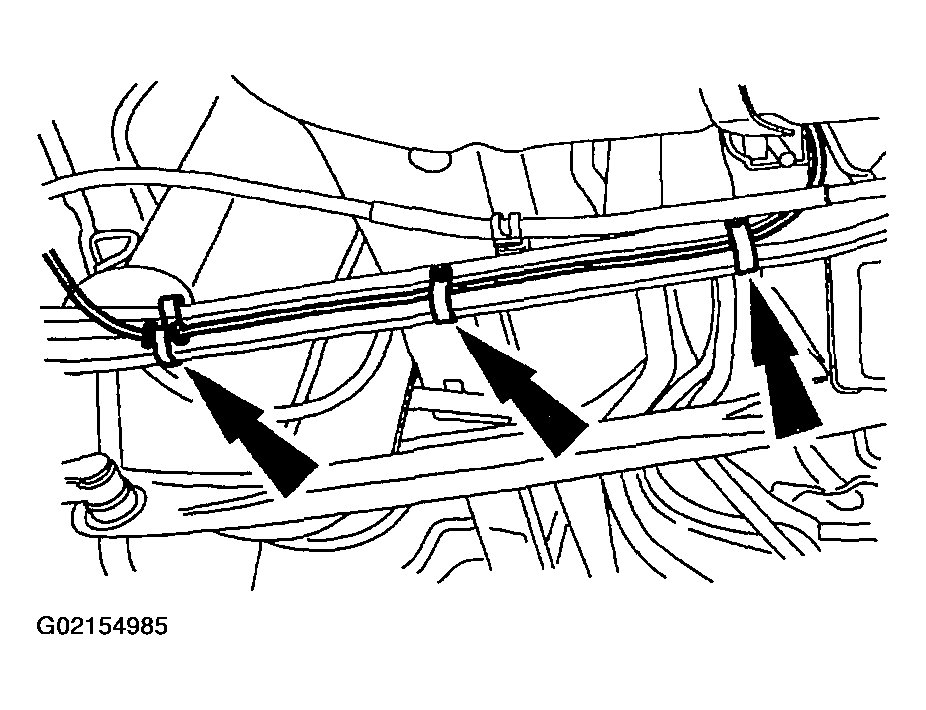

    Fig 2: Removing Wiring From Wiring Clips
    G02154985Courtesy of FORD MOTOR CO.
  4. Remove the bolt and the rear wheel speed sensor.

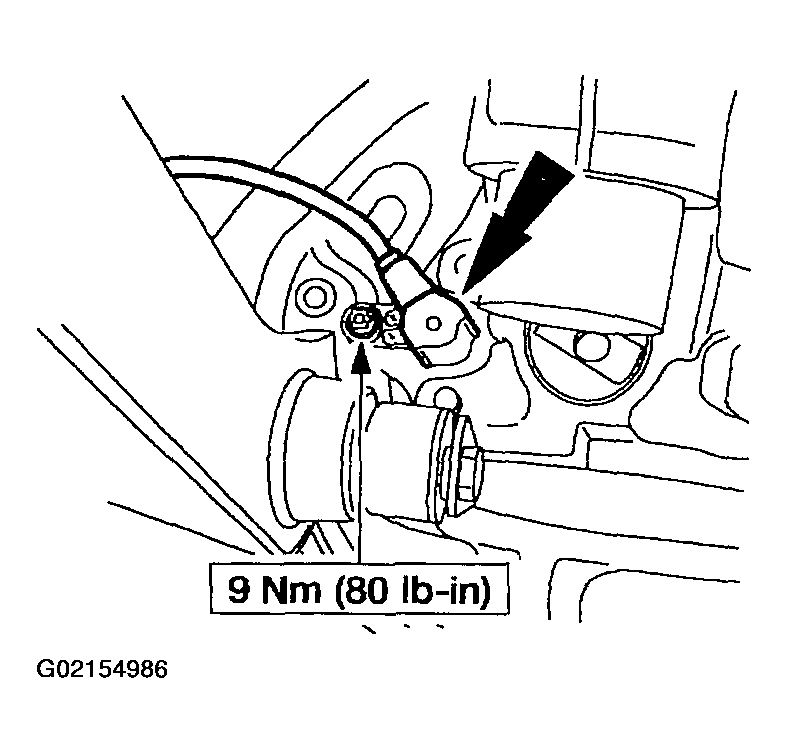

    Fig 3: Identifying Rear Wheel Speed Sensor Bolt
    G02154986Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
