LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mercury
>>
2002
>>
Sable LS Premium
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System Control
>>
Diagnosis And Testing
>>
Anti-Lock Control
>>
Symptom Chart
Symptom Chart

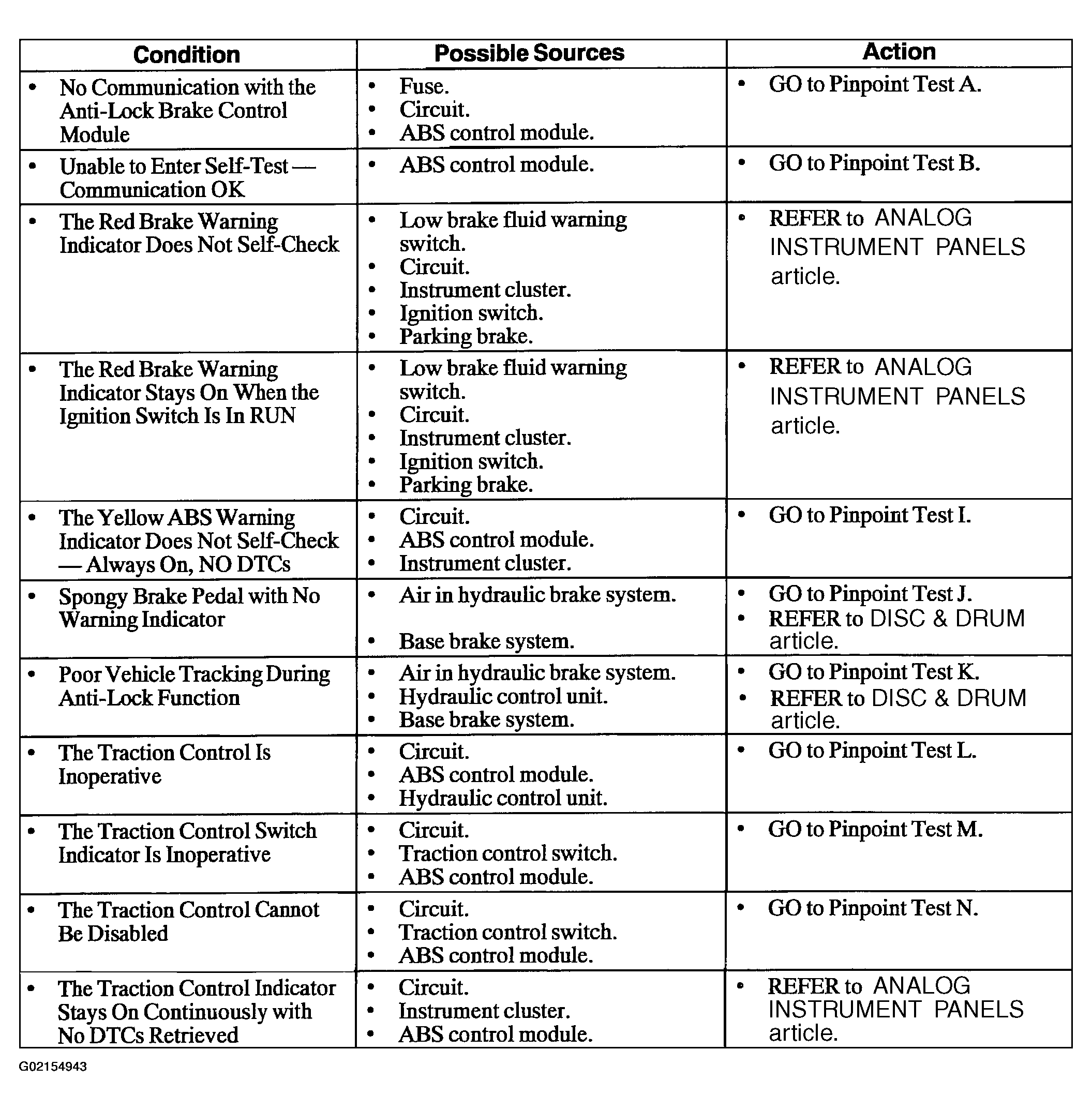

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
